홈 > 제품 소개> 유리 솜 담요> Class A Fire Resistant Glass Wool Blanket with High Moisture Resistance and 0.031-0.042 W/mK Thermal Conductivity for HVAC and Pipe Wrap

Class A Fire Resistant Glass Wool Blanket with High Moisture Resistance and 0.031-0.042 W/mK Thermal Conductivity for HVAC and Pipe Wrap

기본 정보

원래 장소:	중국
브랜드 이름:	fanryn
인증:	ASTM E84
모델 번호:	Glasswool 담요

최소 주문 수량:	1*40hq
가격:	0.1-6$
포장 세부 사항:	Vaacuum 비닐 봉지+직물 가방
배달 시간:	7-10 일
지불 조건:	t/t
공급 능력:	10000 평방 미터

최고의 가격 지금 연락

상세 정보

내화성:	클래스 A	내습성:	높은
두께:	25 밀리미터 - 200 밀리미터	내화학성:	높은
열전도율:	0.031-0.042 w/mk	밀도:	10-48 kg/m3
친환경:	예	재료:	Glasswool
흡수:	높은	절연 유형:	단열
내구성:	높은	애플리케이션:	지붕, 벽, 바닥
강조하다:	aluminum foil fiberglass insulation roll , thermal acoustic blanket for HVAC , pipe wrap glass wool blanket

제품 설명

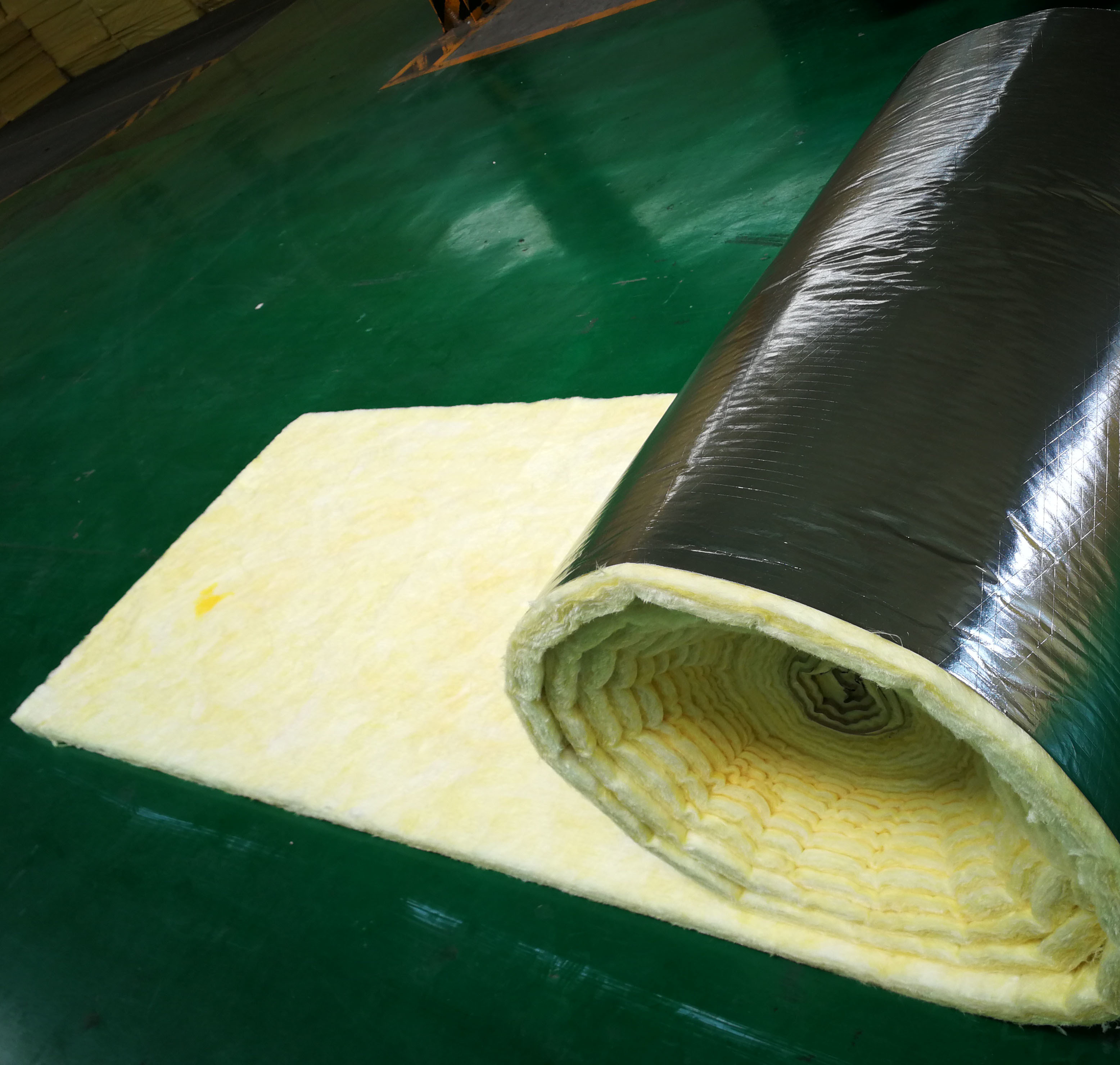

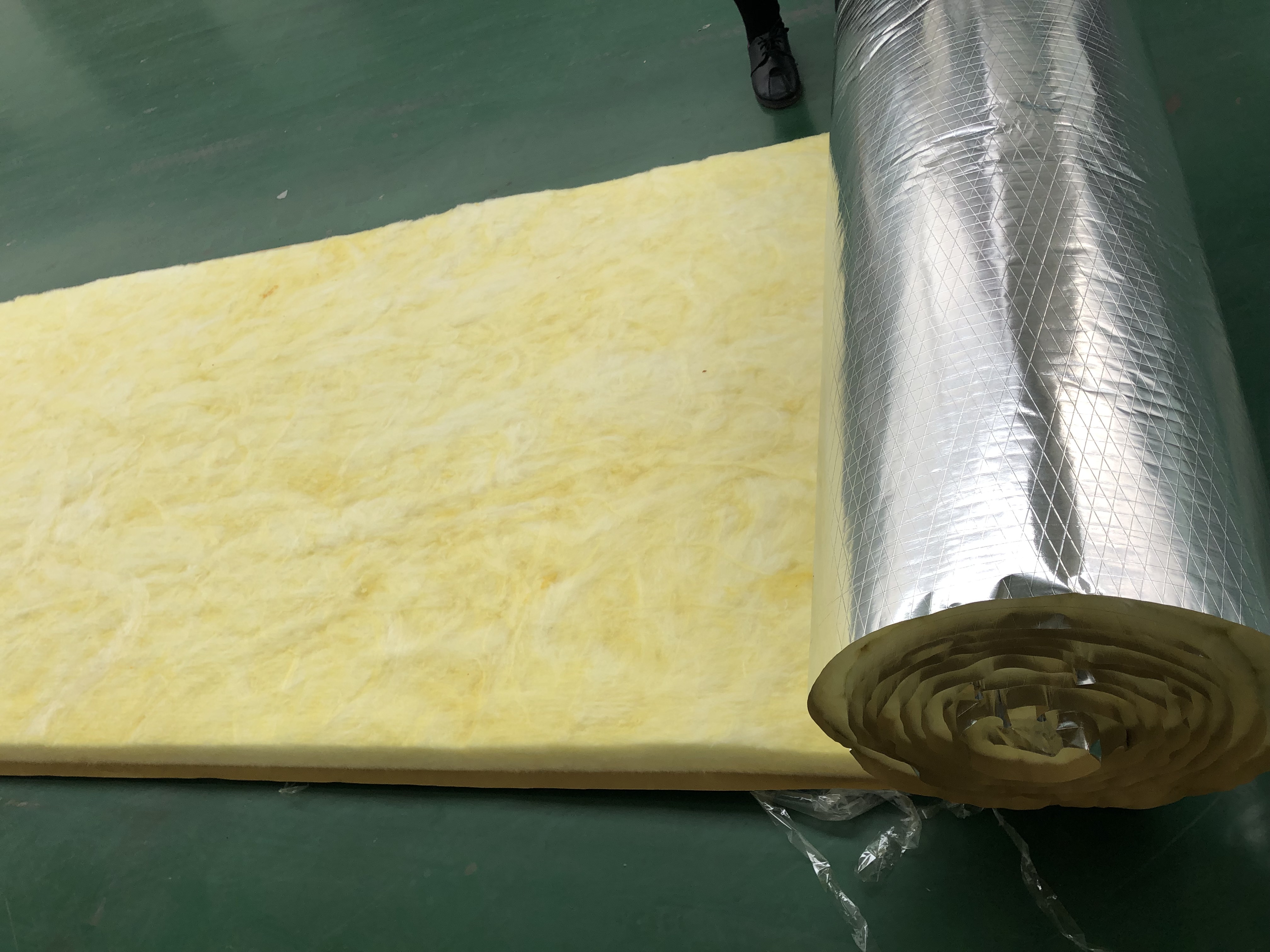

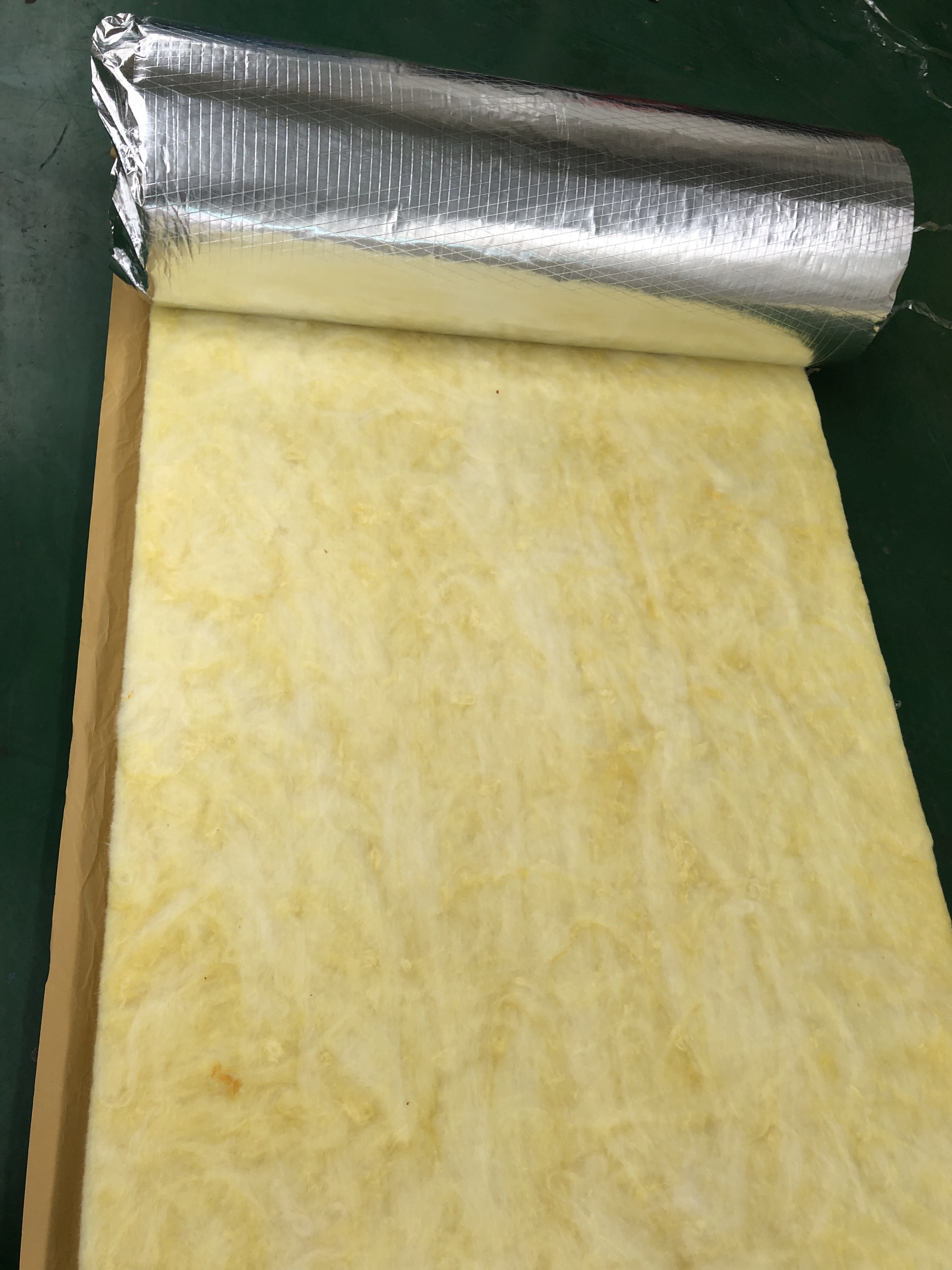

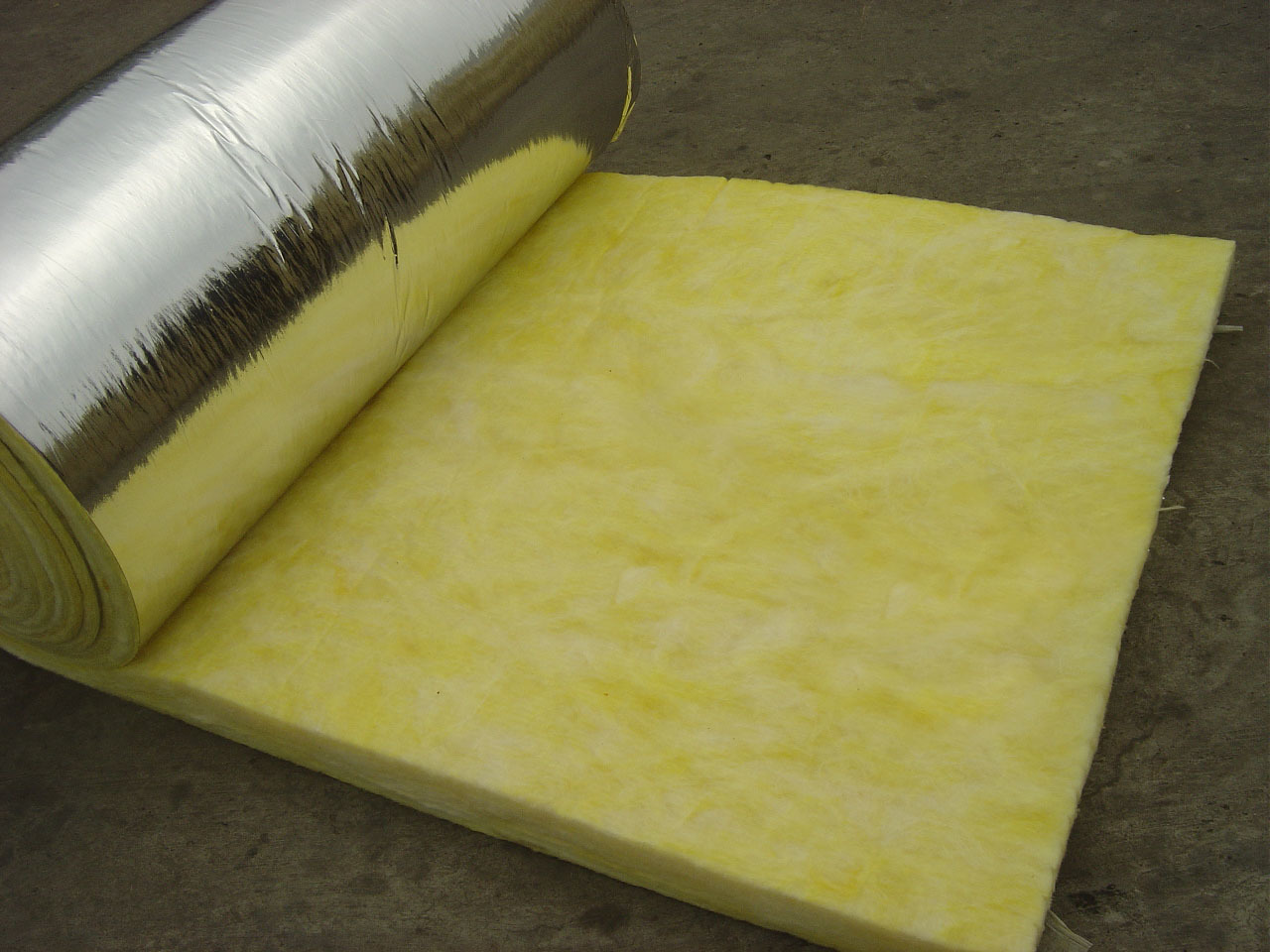

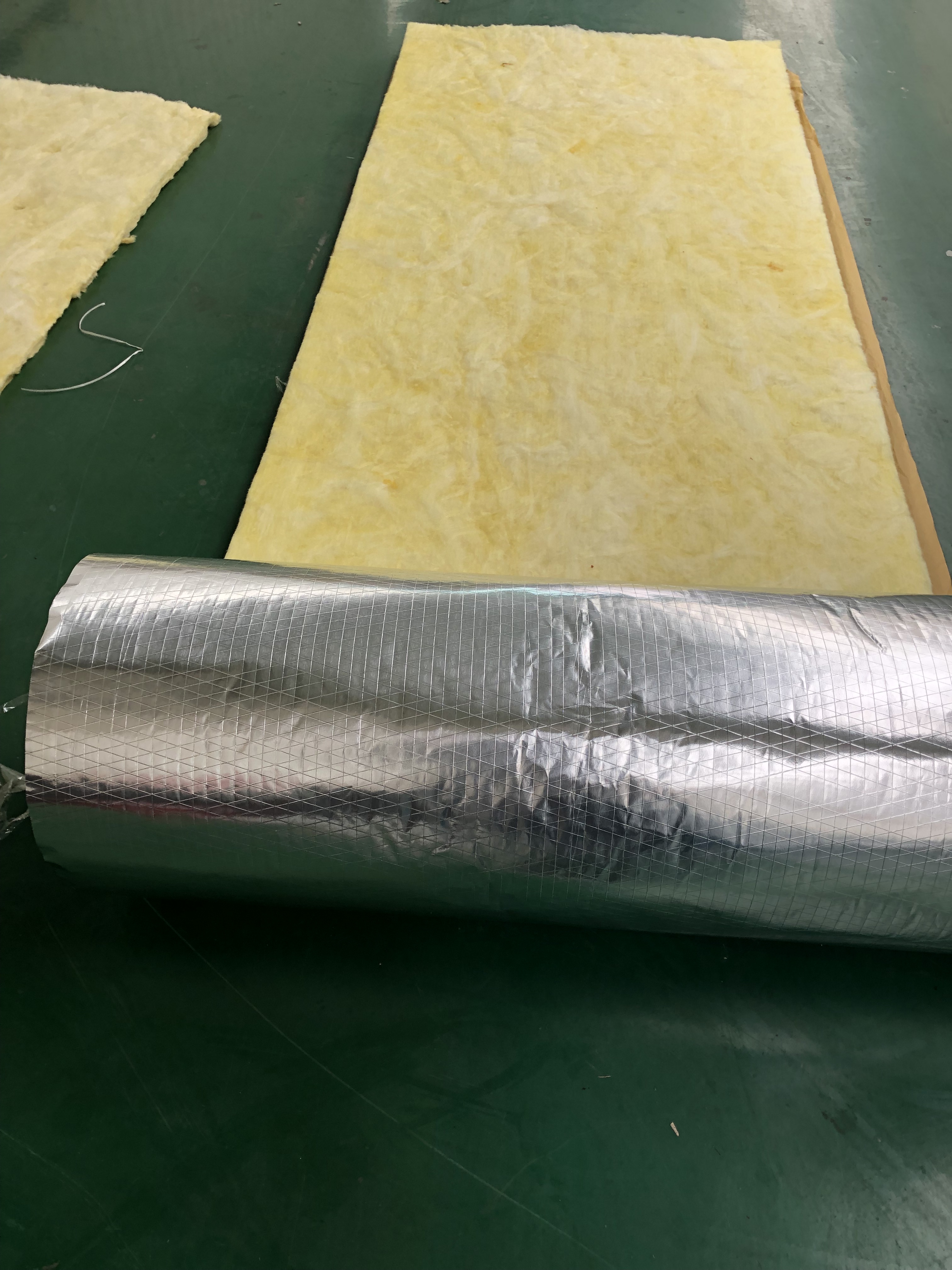

Aluminum Foil Faced Fiberglass Insulation Roll

Thermal Acoustic Blanket for HVAC and Pipe Wrap

FANRYN centrifugal glass wool blanket insulation is engineered for large-area installation. In addition to excellent thermal insulation properties, it also offers effective shock absorption and acoustic isolation, particularly for mid-to-low frequency noise, helping to reduce sound transmission and improve the working environment. The product is available with an optional aluminum foil facing, which enhances moisture resistance, corrosion protection, and thermal reflectivity, thereby increasing overall durability and energy efficiency. It is ideal for applications where hygiene or high humidity conditions are a concern.

Product Specifications

Density (kg/m³)	Thickness (m)	Length (m)	Width (m)	Rolls/Packing
10-48	0.025-0.2	5-30	0.6	2 rolls
10-48	0.025-0.2	5-30	1.1	1 roll \| 2 rolls overlapping
10-48	0.025-0.2	5-30	1.15	1 roll \| 2 rolls overlapping
10-48	0.025-0.2	5-30	1.2	1 roll \| 2 rolls overlapping
10-48	0.025-0.2	5-30	1.25	1 roll \| 2 rolls overlapping

Technical Data

Item	Unit	Index	Standard
Density	kg/m³	10-48	GB/T 5480.3
Average fiber diameter	μm	5-8	GB/T 5480.4
Water content	%	≤ 1	GB/T 16400-2003
Grade of combustibility		Non-combustible Grade A	GB 8624-1997
Reshrinking temperature	℃	250-400	GB/T 11835-2007
Thermal conductivity	w/m·k	0.034-0.06	GB/T 10294
Hydrophobicity	%	≥ 98	GB/T 10299
Moisture rate	%	≤ 5	GB/T 5480.7

Main Applications

Wall Insulation: Used as thermal insulation layer for building exterior or interior walls, effectively reducing heat loss and improving energy efficiency.
Steel Structure Insulation: Ideal for insulating steel roofs and walls, providing both thermal and acoustic benefits while resisting moisture and corrosion.
Indoor Partition Walls: Enhances acoustic and thermal performance of interior walls, creating quieter and more comfortable living or working spaces.
Train Compartments: Provides lightweight thermal and acoustic insulation in railway vehicles, contributing to passenger comfort and energy savings.
Sound Absorption and Acoustical Isolation: Widely used in studios, cinemas, and machinery rooms to reduce noise transmission and improve acoustic environments.
HVAC Duct Insulation: Wraps around ventilation ducts to prevent heat loss/gain and control condensation while reducing system noise.

Quality Standards

According to GB STANDARDS, EN13162, EN13172, ISO9001:2000

Product Advantages

Excellent Resilience: Rapidly recovers to original thickness within 24 hours after opening vacuum-sealed packaging, ensuring consistent performance and ease of installation.
Uniform Thickness and Color: Outstanding consistency in both thickness and color, providing a neat and professional appearance for various applications.
Superior Dimensional Stability: Excellent shape retention capabilities maintain structural integrity over time, even under changing environmental conditions.
Reduced Fiber Irritation: Composed of soft, long glass fibers with advanced bonding technology, significantly minimizing fiber shedding and flying debris during handling and installation.

Product Details
