| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | FANRYN |
| 인증: | CE, ASTM E84, EN 13501 12018 |
| 모델 번호: | 알루미늄 호일 마감 유리솜 보드 |
| 최소 주문 수량: | 명세 당 1*40HQ |
| 가격: | 0.2-5$/m2 |
| 포장 세부 사항: | 진공 비닐 봉투 +짠 가방 |
| 배달 시간: | 7~10일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 1*40HQ 7일 |
| 열전도성: | 0.031-0.042W/m·K | 밀도: | 24-96kg/m3 |
|---|---|---|---|
| 환경에 미치는 영향: | 재활용할 수 있고 환경 친화적입니다 | 파이어리지스턴스: | 불연성, 클래스 A1 |
| 흡음계수: | 1.03 제품 잔향 방법 24kg/m3 2000Hz | 물 흡수: | <1% |
| 제품명: | 단열 유리 솜 | 애플리케이션: | 건물, 산업 설비용 단열재 |
| 두께: | 25-100 mm | 재료: | 유리 울 |
| 색상: | 노란색, 갈색, 빨간색 | 온도 저항성: | -270°C ~ 350°C |
| 치수: | 다양함(예: 600x1200mm 보드) | ||
| 강조하다: | yellow glass wool insulation board,sound absorption fiberglass panel,fire-resistant unfaced glass wool |
||
Products Description

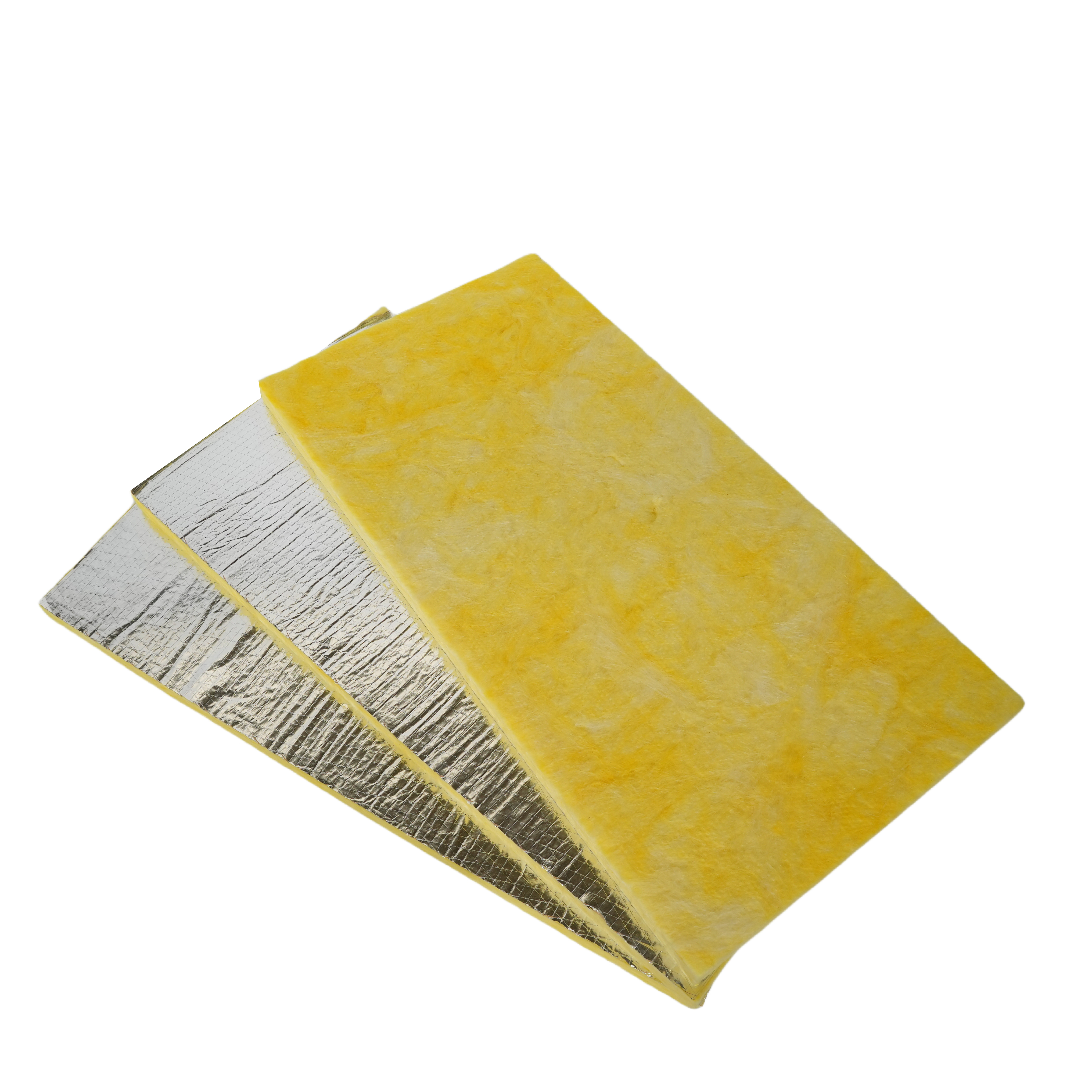

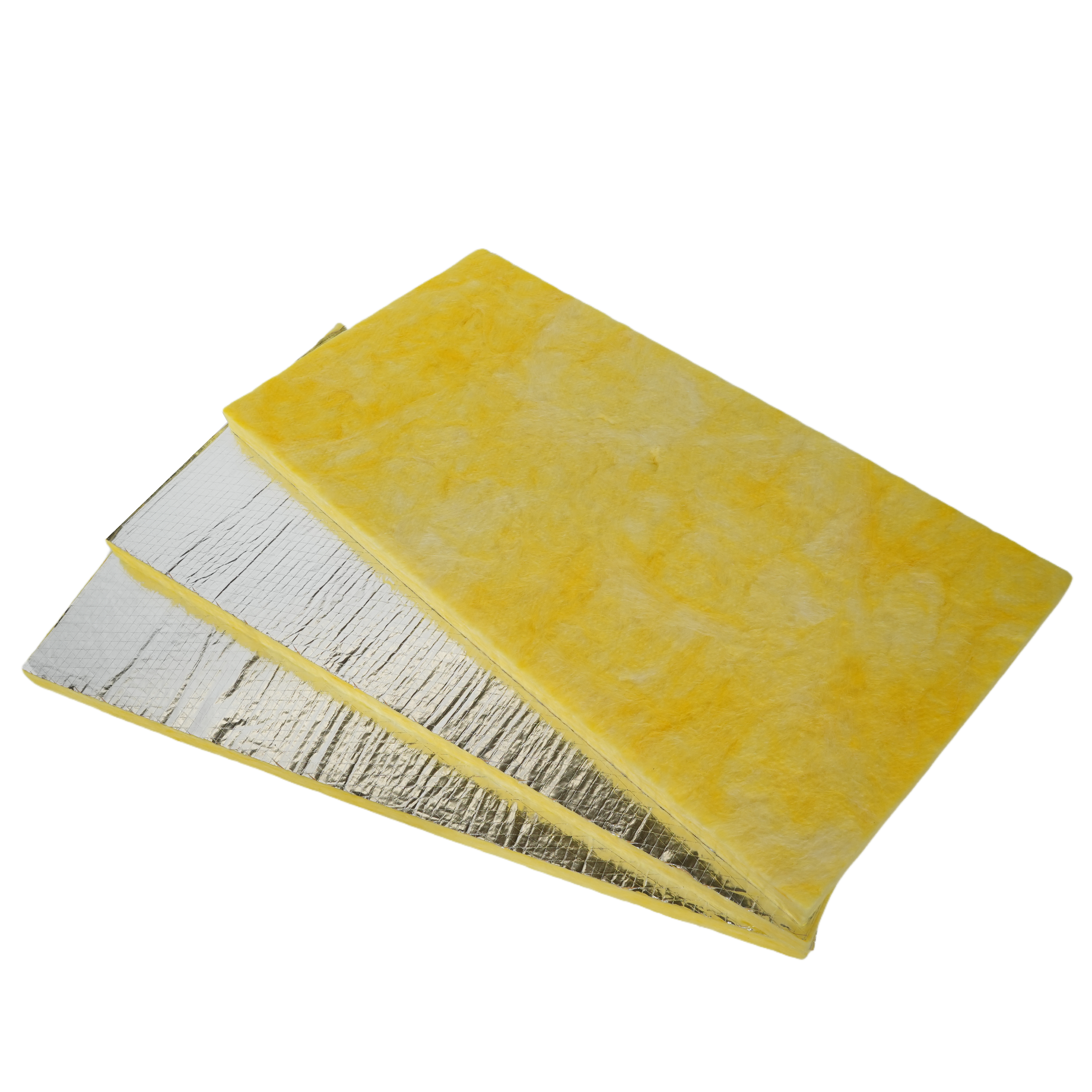

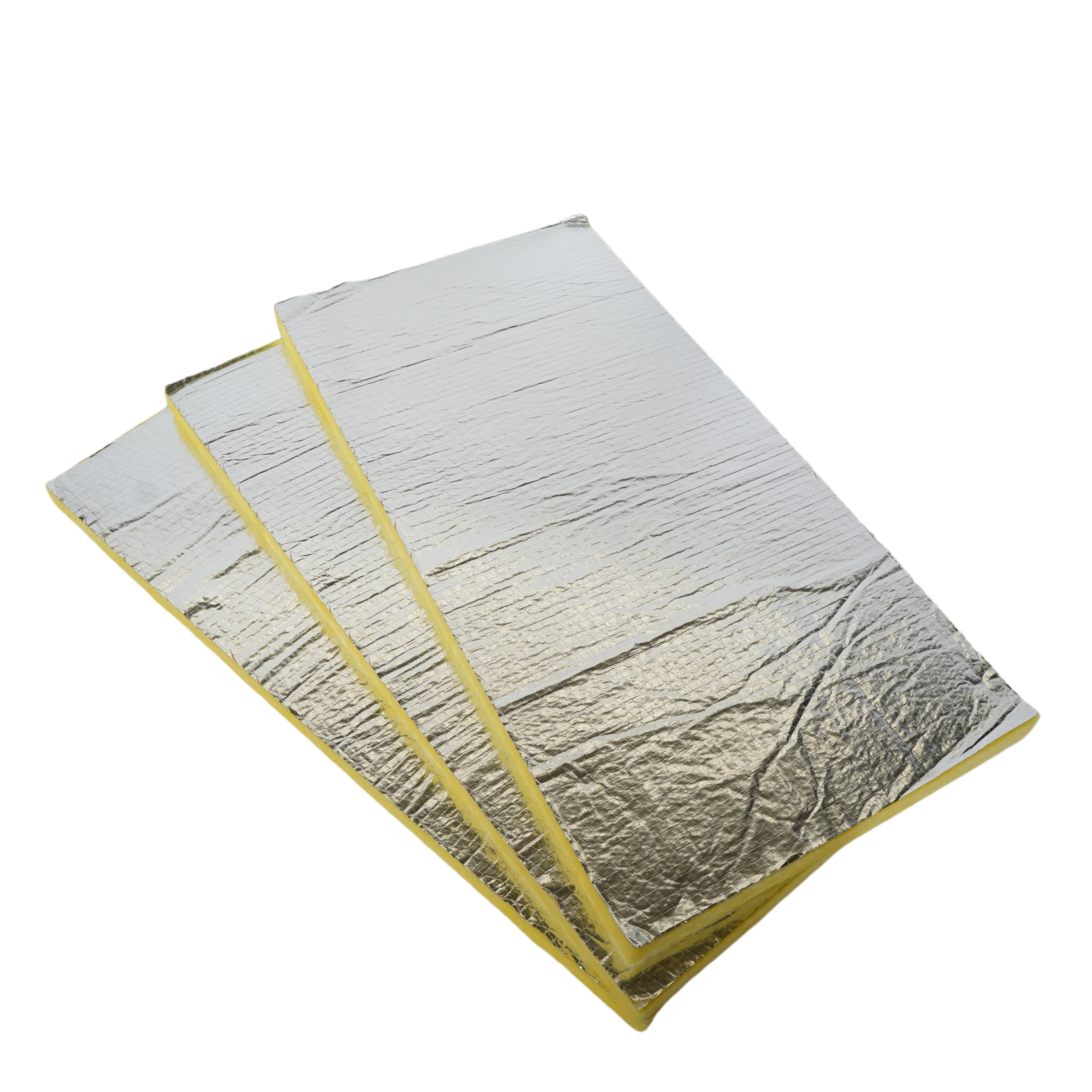

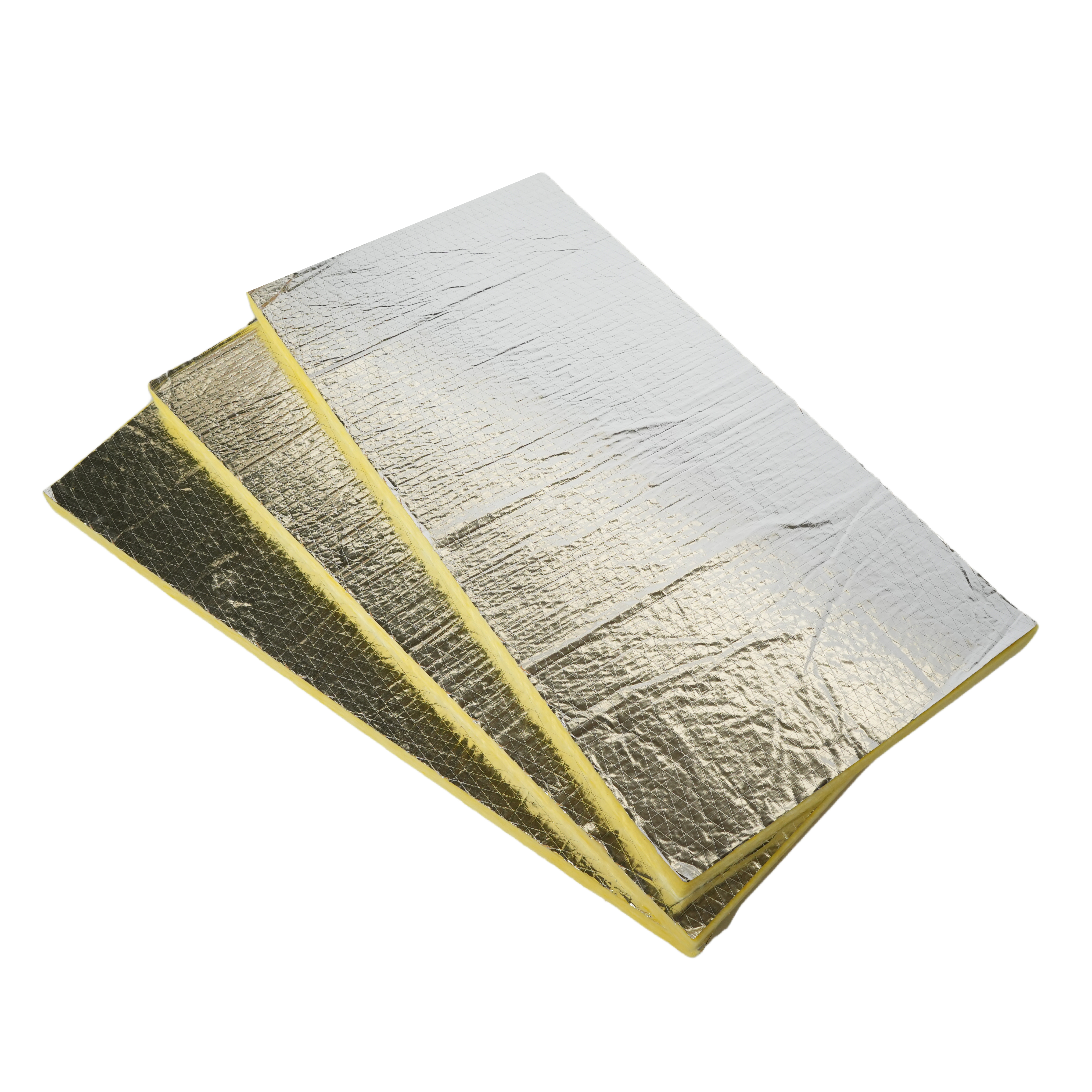

Aluminum foil-faced glass wool boards combine the inherent benefits of glass wool—non-combustibility, excellent thermal and acoustic insulation, and no toxic emissions when exposed to fire—with the added advantages of an integrated vapor barrier and enhanced radiant heat reflection. This makes them a superior, all-in-one, and environmentally responsible insulation solution for demanding building applications.
Product feature of the glass wool board with aluminum foil facing
Quick Recovery & Consistent Form: Regains full intended thickness within 24 hours after unpacking, ensuring uniform installation and reliable long-term dimensional stability.
Superior Workability: Composed of soft, long fibers that minimize dust and fiber fly during handling, creating a healthier and cleaner installation environment.
Enhanced Performance Layer: The foil facing reflects radiant heat, controls moisture diffusion, and provides a smooth, ready-to-cover surface—making it a complete insulation system in one product.
Product Specifications
|
Item |
Unit |
Index |
Standard |
|
Density |
kg/m3 |
10-100 |
GB/T 5480.3-1985 |
|
Average fiber dia. |
µm |
5.5 |
GB/T 5480.4-1985 |
|
Water content |
% |
≤1 |
GB/T 3007-1982 |
|
Grade of combustibility |
|
Non-combustible Grade A |
GB 8624-1997 |
|
Reshrinking temp |
℃ |
≥250 |
GB/T 11835-1998 |
|
Thermal conductibility |
w/m.k |
0.038-0.06 |
GB/T 10294-1988 |
|
Hydrophobicity |
% |
≥98.2 |
GB/T 10299-1988 |
|
Moisture rate |
% |
≤5 |
GB/T 16401-1986 |
|
Sound absorption coefficient |
|
1.03 product reverberation method 24kg/m32000HZ |
GBJ 47-83 |
|
Slag inclusion content |
% |
≤0.3 |
|
Product size of the glass wool board
|
Density(kg/m3) |
Thickness(m) |
Length (m) |
Width (m) |
Pcs/packing |
|
24-96 |
0.025-0.1 |
0.6-1.25 |
0.6 |
5-18 |
|
24-96 |
0.025-0.1 |
0.6-2.4 |
1.1-1.25 |
5-18 |
Product application of the glass wool board
Wall Insulation
Steel Structure Insulation
Interior Partition Walls
Railway Carriage Interiors
Acoustic Absorption & Soundproofing
Production Facing For glass wool board
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue
Production packing of the glass wool board
The normal packing is plastic bag
Note: OEM is acceptable
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on glass wool board?
A4: Special size can be made according customer’s requirement.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
