| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | fanryn |
| 인증: | BS476, EN13501 12018, CE |
| 모델 번호: | 유리섬유 천장 패널 |
| 최소 주문 수량: | 1*40hq |
| 가격: | 0.5-3$ per square meter |
| 포장 세부 사항: | 통 또는 플라스틱 백 |
| 배달 시간: | 10~15일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 우리는 10-15일 이내에 1*40HQ를 생산할 수 있습니다. |
| 흡수 계수: | 0.8-0.9 | 밀도: | 70-130kg/m3 |
|---|---|---|---|
| 재료: | 유리 울 | 환경에 미치는 영향: | 재활용 가능하고 친환경적입니다. |
| 두께: | 15mm, 20mm, 25mm | 애플리케이션: | 건물, 산업 설비용 단열재 |
| 설치 방법: | ◆노출된 그리드를 사용하세요. 그리드 너비는 15mm 또는 24mm입니다. ◆타일은 손질 및 설치가 용이합니다. ◆인치 및 센티미터 그리드 모두 사용 가능 | 내화성: | 불연성, 클래스 A |
| 열전도율: | >=0.4(m2.k/w) | 수분 흡수: | <1% |
| 강조하다: | fireproof fiberglass ceiling tile,eco-friendly acoustic insulation panels,square fiberglass ceiling tiles |
||
Products Description

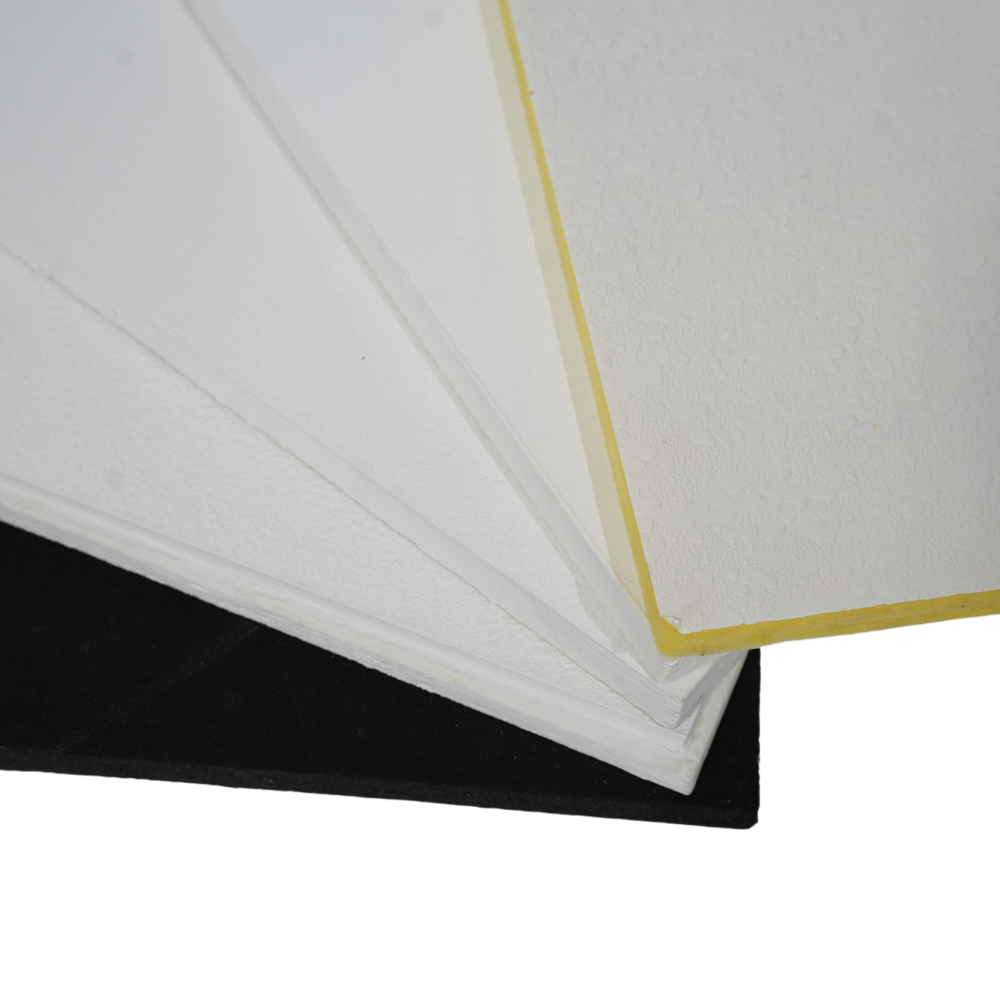

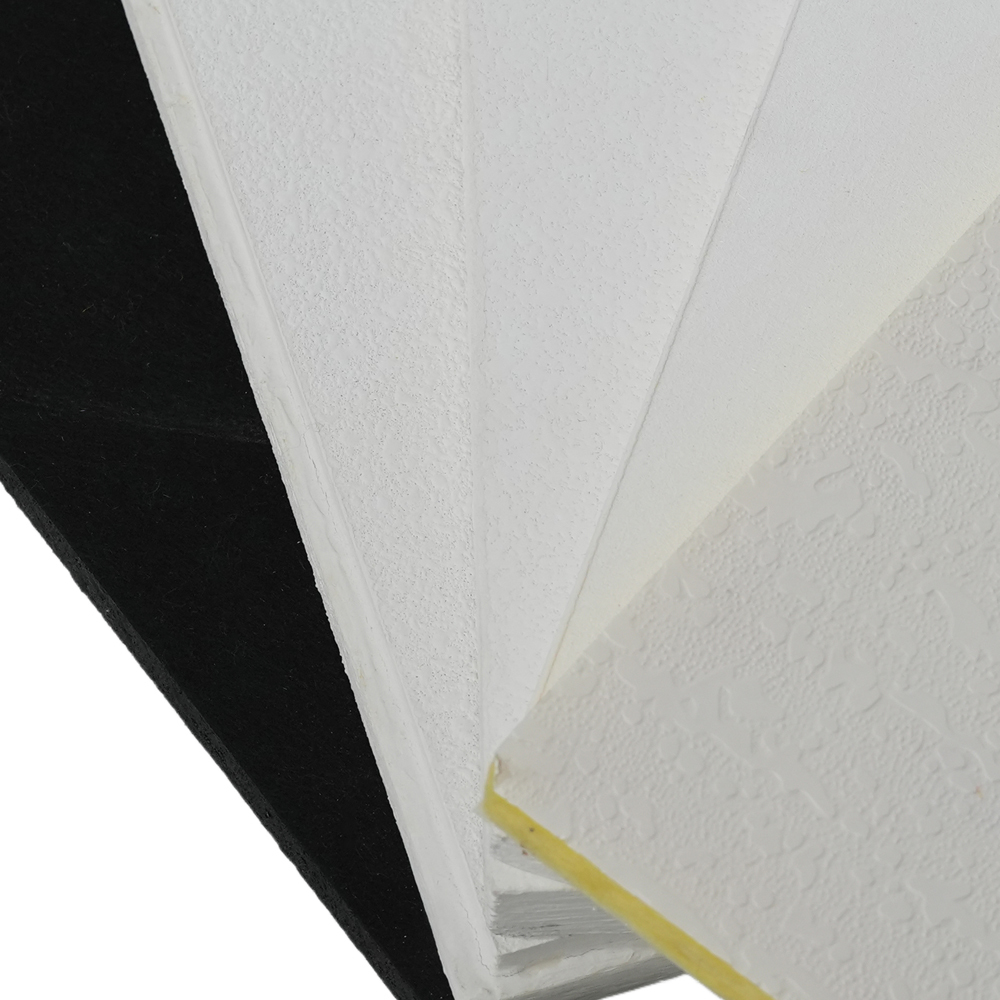

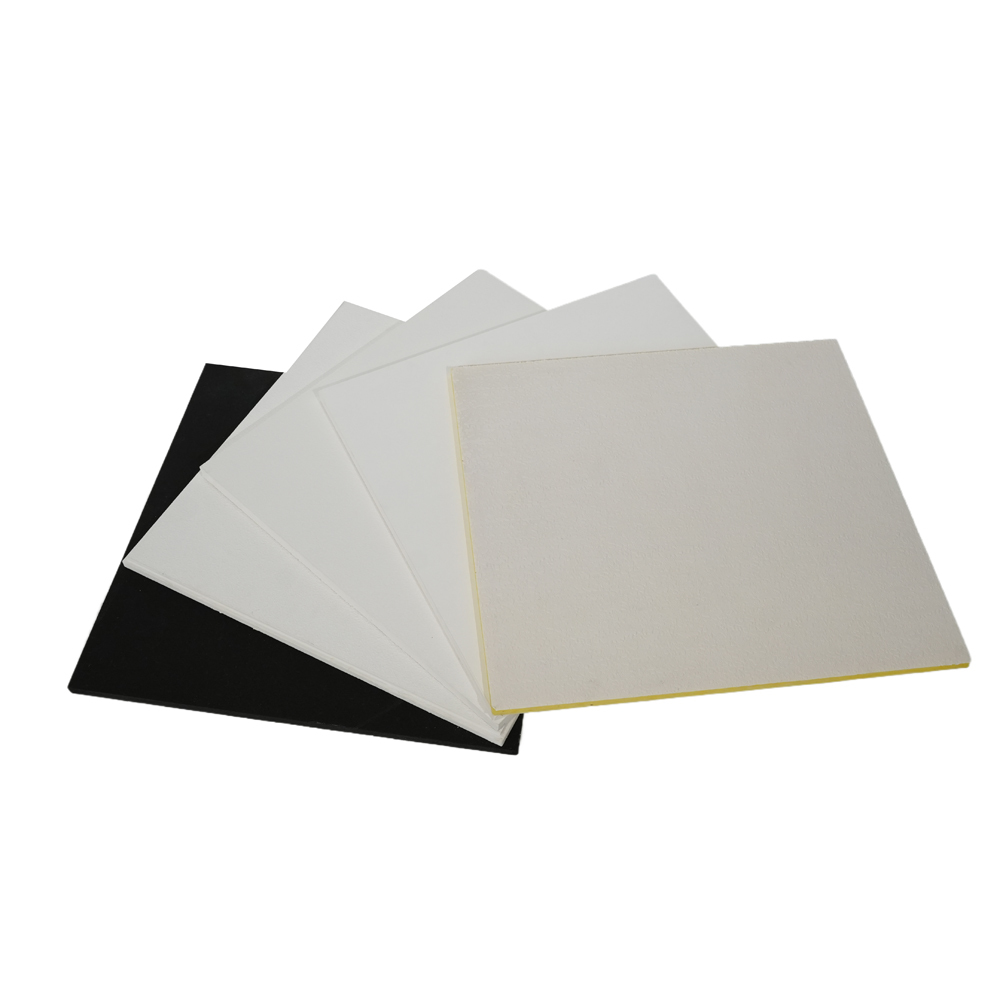

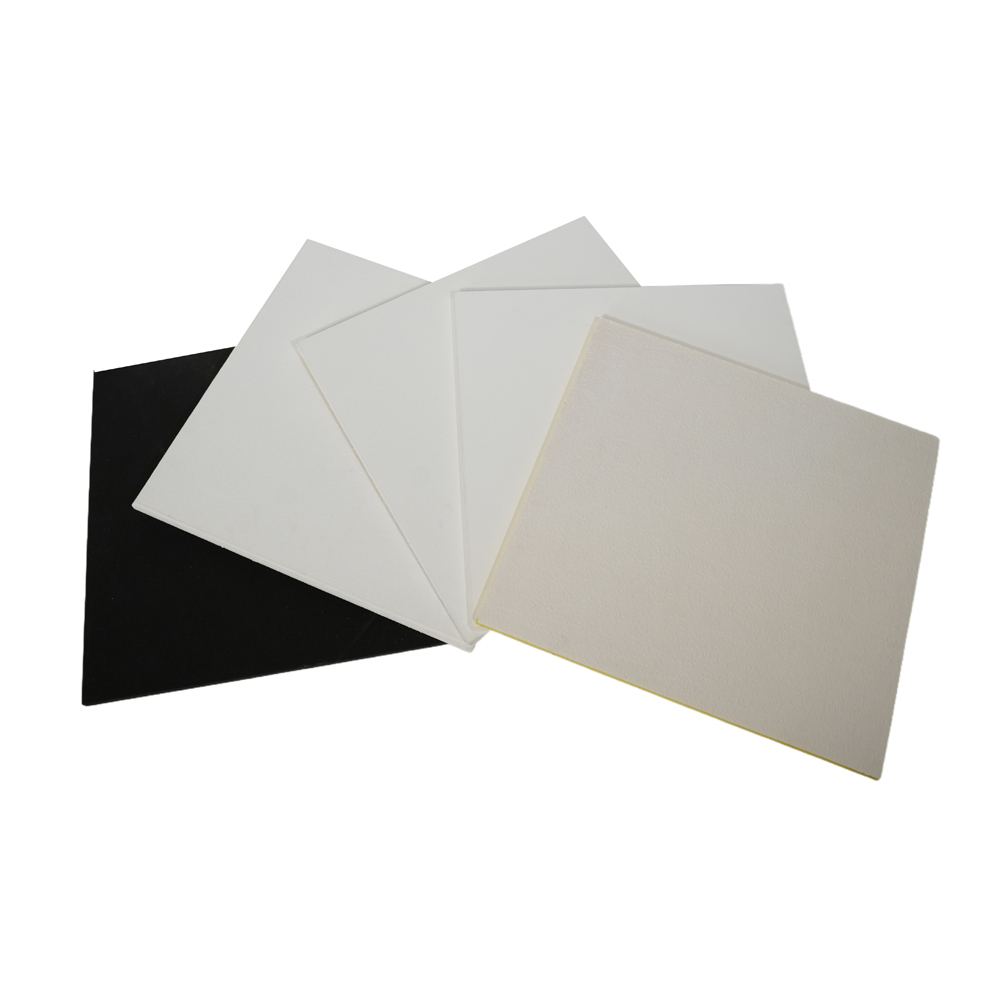

FANRYN fiberglass ceiling board is manufactured from high density fiberglass wool. The visible face has a decorative fiberglass tissue and the back of the tile is covered with normal tissue. The four edges are sealed and square. The tiles will be parallel to grids system after installation.
Product feature of the fiberglass ceiling panel
-Non-Combustible Safety: Certified as an inherently fire-resistant material, it provides reliable protection and ensures full compliance with the most stringent building safety standards and fire codes.
-Exceptional Dimensional Stability: Engineered to resist sagging, warping, or delamination over time, it maintains long-term structural integrity and a consistently flat, seamless installed appearance for the life of the installation.
-Superior Acoustic Performance: Delivers excellent sound absorption, significantly enhancing acoustic comfort and effective noise control in a wide range of interior environments, from offices to residential spaces.
-Eco-Conscious Building Material: Classified as a premier green building product, it supports sustainable construction practices and contributes directly to environmental certification goals such as LEED and BREEAM.
-Versatile Aesthetic Finishes: Available laminated with decorative fiberglass tissue or PVC facing, offering both durability and design flexibility to meet diverse architectural and interior design requirements.
Product Specifications
|
Material |
|
|
Density |
90-130kg/m3 |
|
Face |
Painting laminated with decorative fiberglass tissue or PVC facing |
|
Color |
White, black and others to order |
|
Fire-resistant |
Class A |
|
Thermal-resistant |
≥0.5 (m2·k/w) |
|
NRC |
0.9-1.0 |
|
Humidity |
Dimensionally stable with RH up to 95% at 40℃,no sagging, wrapping or delaminating |
|
Moisture rate |
≤1%(JC/T670-2005) |
|
Environmental impact |
Tiles and packing are fully recyclable |
|
safety |
Limit of radionuclides in building materials specific activity of 226Ra: Ira≤1.0 specific activity of 226Ra, 232Th, 40K: Ir≤1.3 |
Packing and Loading Quantity for Containers
|
SIZE |
CARTON/40HQ |
PIECES/CARTON |
M2/40HQ |
|
600*600*15MM |
532 |
20 |
3830.4 |
|
600*1200*15MM |
266 |
20 |
3830.4 |
|
600*600*20MM |
532 |
15 |
2872.8 |
|
600*1200*20MM |
266 |
15 |
2872.8 |
|
600*600*25MM |
532 |
12 |
2298.24 |
|
600*1200*25MM |
266 |
12 |
2298.24 |
Installation
-use exposed grids, grids width:15mm or 24mm
-tiles are easy to trim and install
-both inches and centimeters grids are available
Product application
classrooms, offices, shopping center, etc.
Main Facing:
Production packing of the glass wool board
Carton or plastic bag
Note: OEM is acceptable
