| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | FANRYN |
| 인증: | CE, ASTM E84, EN 13501 12018 |
| 모델 번호: | 명반 호일을 향한 암면 보드 |
| 최소 주문 수량: | 명세 당 1*40HQ |
| 가격: | 0.2-5$/m2 |
| 포장 세부 사항: | 비닐봉지 |
| 배달 시간: | 7~10일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 1*40HQ 7일 |
| 수분흡수: | 낮은 | 내습성: | 좋은 |
|---|---|---|---|
| 제품명: | 미네랄 울 보드 | 열전도율: | <=0.044W/m·K |
| 두께: | 30-100mm | 설치방법: | 기계적 고정 또는 접착 결합 |
| 내화성: | 불연성, 클래스 A1 | 색상: | 갈색 |
| 치수: | 일반적으로 600x1200mm 또는 맞춤형 | 흡음계수: | 0.8-0.9 |
| 밀도: | 40-200kg/m3 | 환경에 미치는 영향: | 재활용 가능하고 친환경적입니다. |
| 애플리케이션: | 단열, 방화, 방음 | 재료: | 미네랄 울 |
| 강조하다: | aluminum foil rockwool insulation board,fireproof mineral wool panel,acoustic insulation rockwool board |
||
Products Description

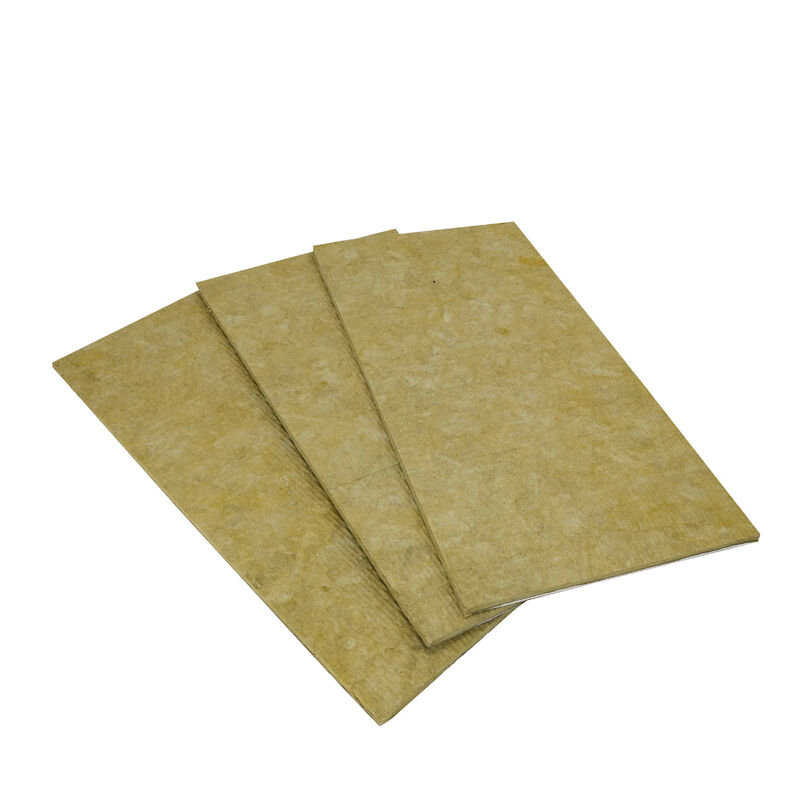

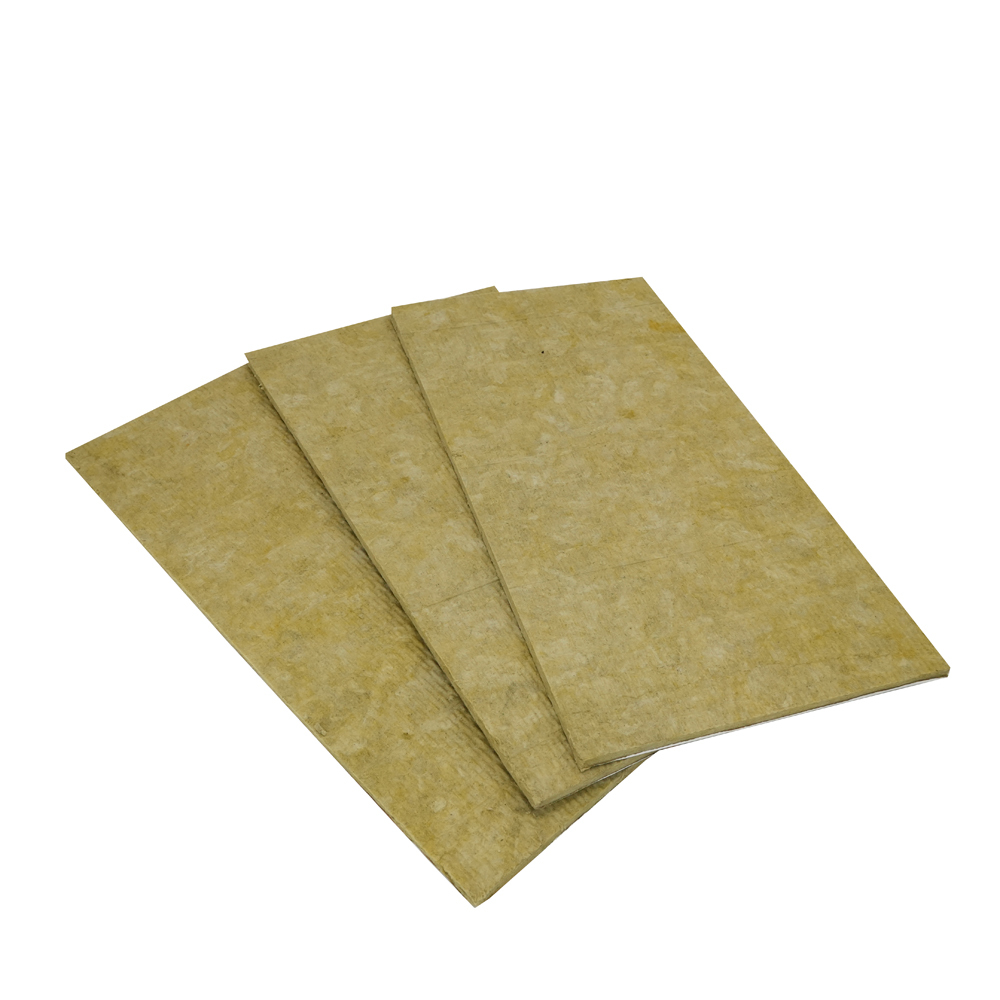

FANRYN Rock Wool Board is produced from naturally sourced volcanic rock, primarily basalt and dolomitic limestone. These raw materials are superheated to a molten state above 1450°C in a cupola furnace, then transformed into fine, inorganic fibers by a high-speed centrifugal spinner. The fibers are bonded with a thermosetting resin to form a dimensionally stable, resilient, and fire-resistant wool substrate.

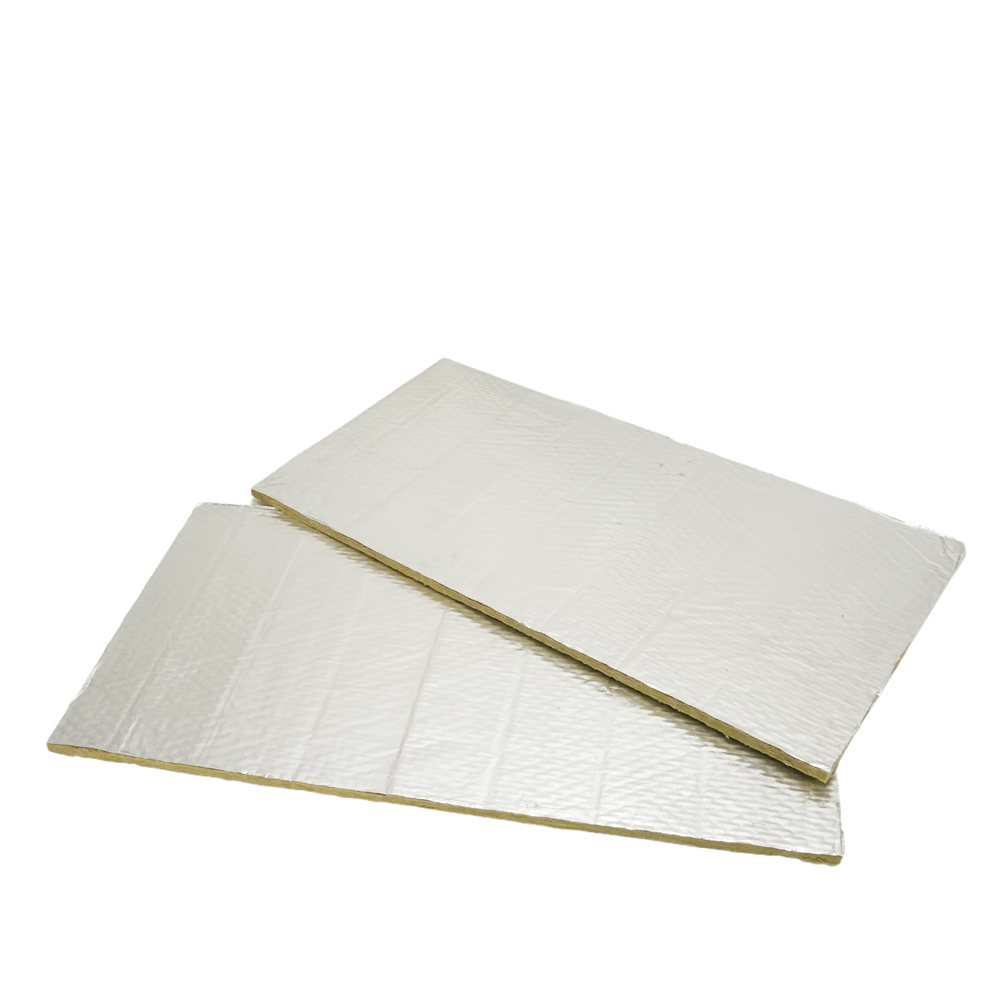

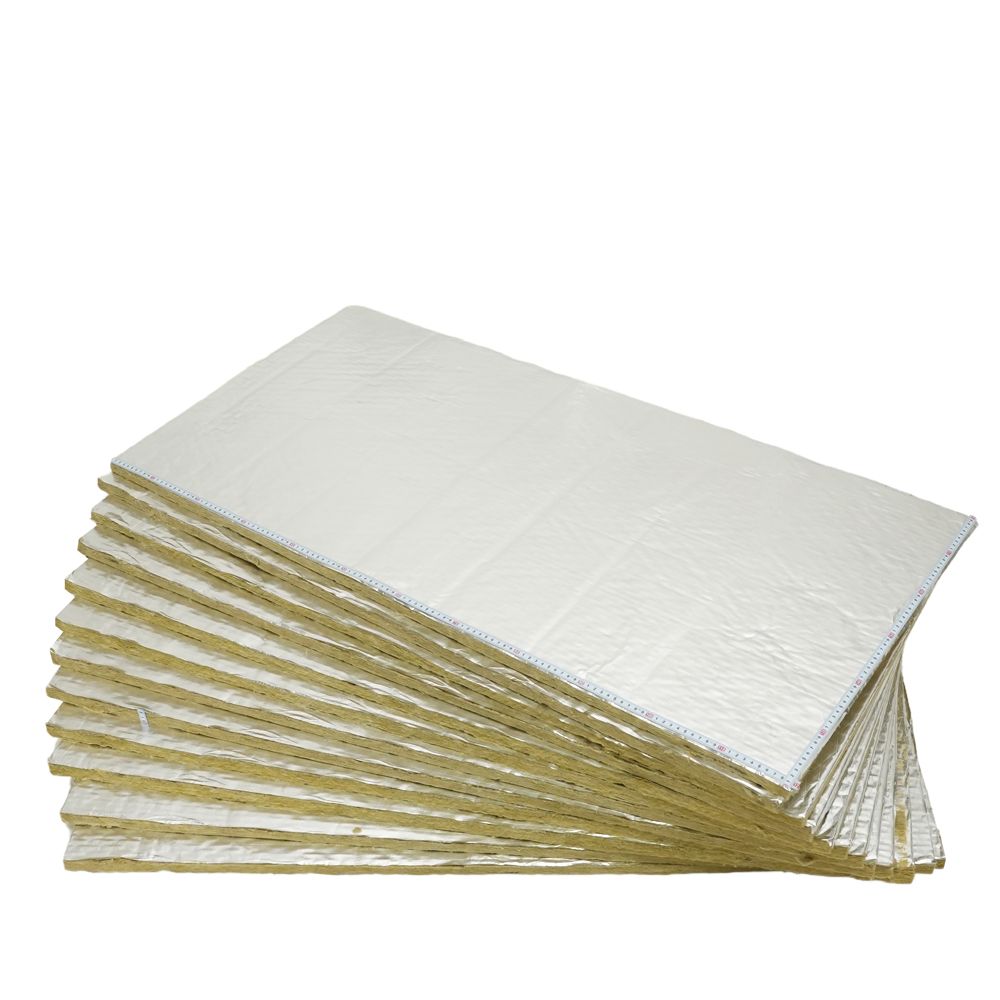

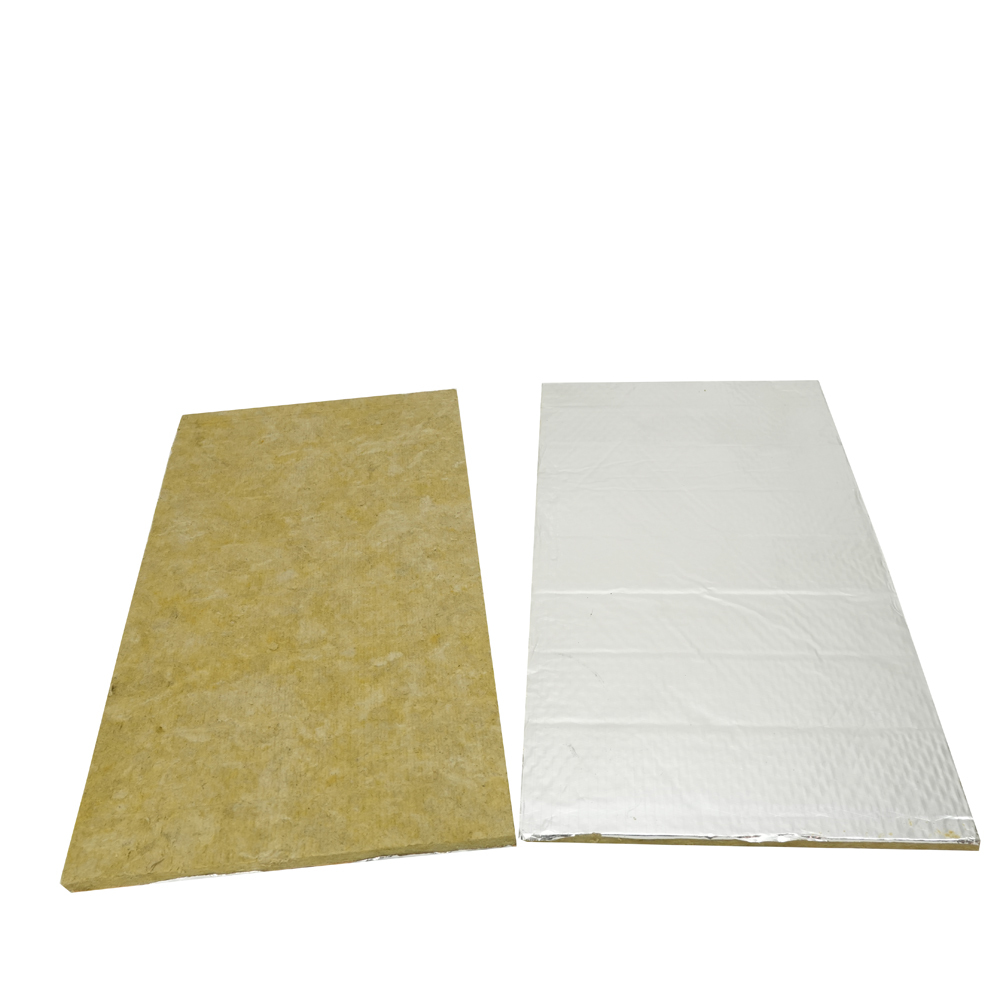

For enhanced functional performance, the board is factory-laminated on one side with a reinforced, puncture-resistant aluminium foil facing. This facing provides a durable radiant barrier that reflects thermal energy, significantly boosting overall thermal insulation effectiveness. It also acts as an advanced vapour barrier, blocking moisture ingress to maintain the insulation’s performance over time and prevent mould or corrosion. The smooth, robust surface offers improved handling and ease of installation, making it an ideal high-performance solution for HVAC ductwork, roofing assemblies, wall lining systems, and industrial thermal-acoustic applications.
Product feature of the rock wool board
Thermal & Energy Efficiency
The mineral wool matrix and reflective foil work together to significantly reduce heat transfer, cutting energy use for both heating and cooling.
Fire Safety
With an A1 non-combustible rock wool core and foil reinforcement, it ensures high fire resistance without toxic emissions, maintaining stability under extreme heat.
Acoustic Performance
The fibrous structure absorbs noise while the foil adds sound-blocking properties, improving indoor acoustic comfort.
Moisture & Corrosion Resistance
The foil acts as an effective vapour barrier, keeping the core dry to prevent mould and protect against corrosion.
Installation & Durability
Pre-cut panels with a tough foil surface allow for easy handling and installation, ensuring long-term reliability.
Product Specifications
|
Properties |
Board |
Standards |
|
Density Tolerance |
±10% |
GB/T 19686-2005 |
|
Fire Performance |
Non-Combustible |
GB/T 5464-1999 |
|
Reaction to fire Class A1 |
GB/T 8624-2006 |
|
|
Thermal Conductivity (W/mK, at70±5℃) |
≤0.044 |
GB/T 10295 |
|
Fiber Diameter |
7(+/-1)um |
GB/T 5480. 4 |
|
Shot Content (shot size＞0.25mm) |
≤12% |
|
|
Moisture Content |
≤0.5% |
|
|
Organic Matter Content |
≤4% |
|
|
Melting Point |
＞1000℃ |
|
Product size
|
Product |
Board |
|
Density (kg/m3) |
40-200 |
|
Size :L x W (mm) |
600X1200 |
|
Thickness (mm) |
30-100 |
Product application
1. Building & Construction
External Wall Insulation
Roofing Systems
Floating Floors
Partition Walls
2. Industrial & Pipeline Insulation
Large-Diameter Pipeline Insulation
Plant and Facility Cladding
3. Sector-Specific Uses
Public & Commercial Buildings
Residential Buildings
Industrial Plants
Production Facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue
Production packing
1. Vacuum plastic bag
2. PE shrinking bag
Note: OEM is acceptable
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HCcontainer order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on rock wool board?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
