| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | FANRYN |
| 인증: | CE, ASTM E84, EN 13501 12018 |
| 모델 번호: | 명반 호일을 향한 암면 보드 |
| 최소 주문 수량: | 명세 당 1*40HQ |
| 가격: | 0.2-5$/m2 |
| 포장 세부 사항: | 비닐봉지 |
| 배달 시간: | 7~10일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 1*40HQ 7일 |
| 수분흡수: | 낮은 | 내습성: | 좋은 |
|---|---|---|---|
| 제품명: | 미네랄 울 보드 | 열전도율: | <=0.044W/m·K |
| 두께: | 30-100mm | 설치방법: | 기계적 고정 또는 접착 결합 |
| 내화성: | 불연성, 클래스 A1 | 색상: | 갈색 |
| 치수: | 일반적으로 600x1200mm 또는 맞춤형 | 흡음계수: | 0.8-0.9 |
| 밀도: | 40-200kg/m3 | 환경에 미치는 영향: | 재활용 가능하고 친환경적입니다. |
| 애플리케이션: | 단열, 방화, 방음 | 재료: | 미네랄 울 |
Products Description
The FANRYN Rock Wool Board is engineered from naturally sourced volcanic rock—primarily basalt and dolomitic limestone. These materials are melted at over 1450°C in a cupola furnace and spun into fine, inorganic fibers using high-speed centrifugal technology. The fibers are then bonded with a thermosetting resin, resulting in a rigid, fire-resistant, and dimensionally stable insulation core.

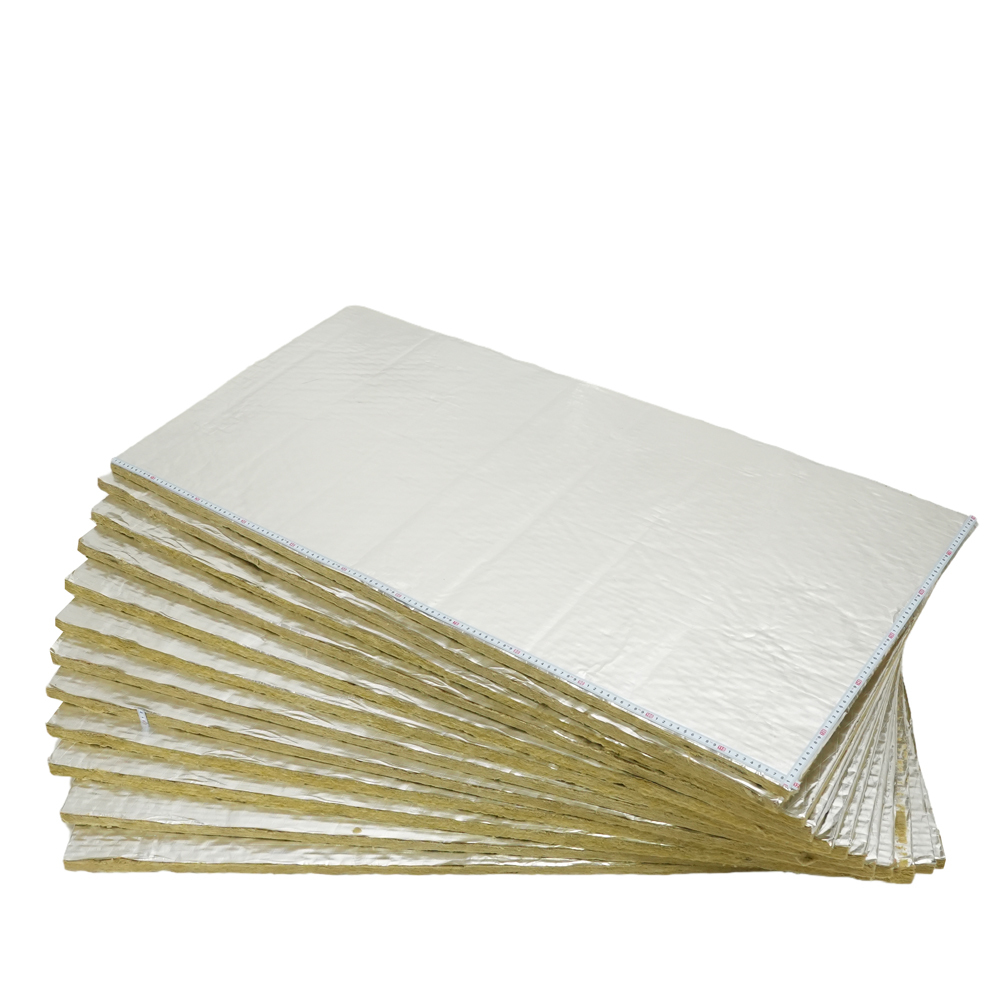

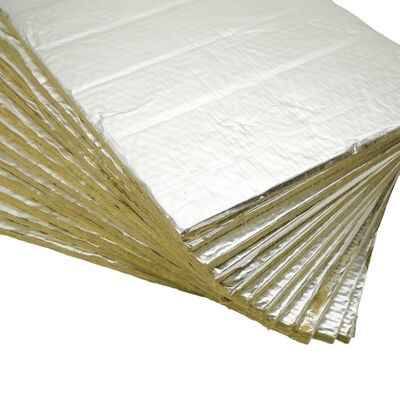

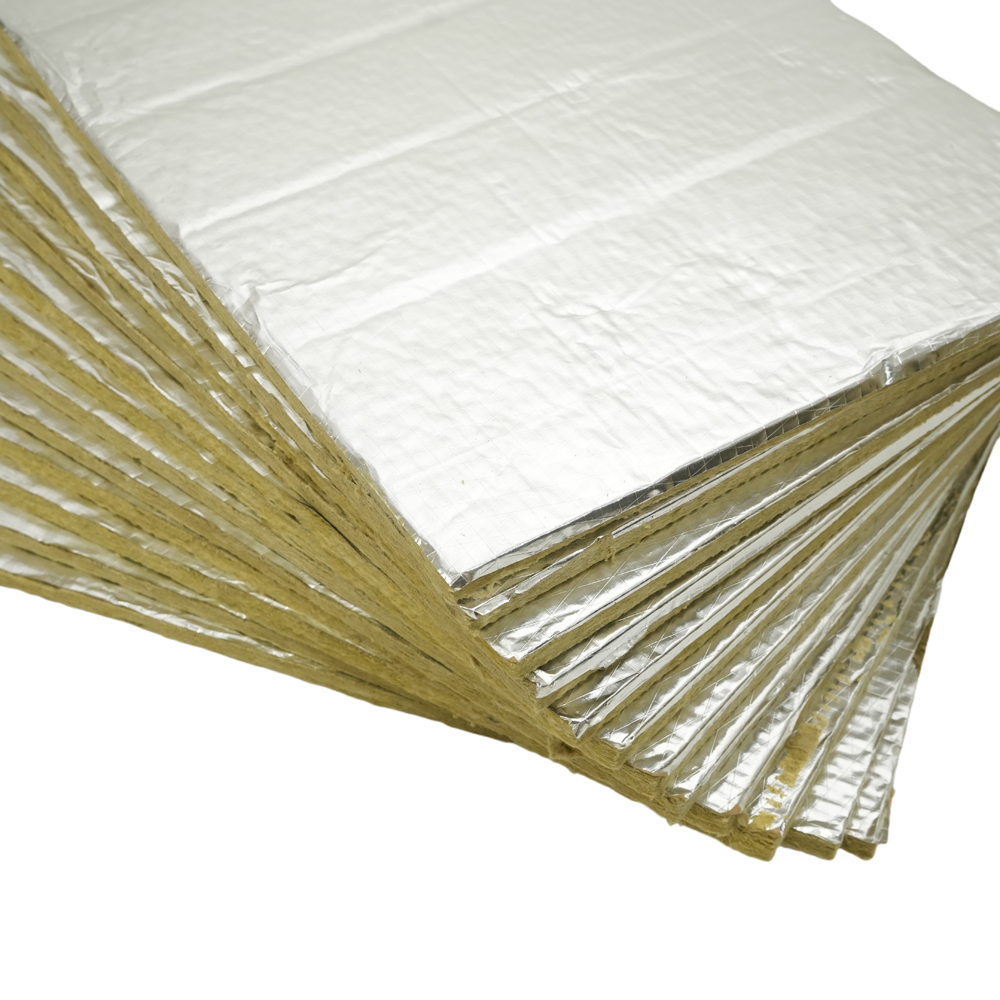

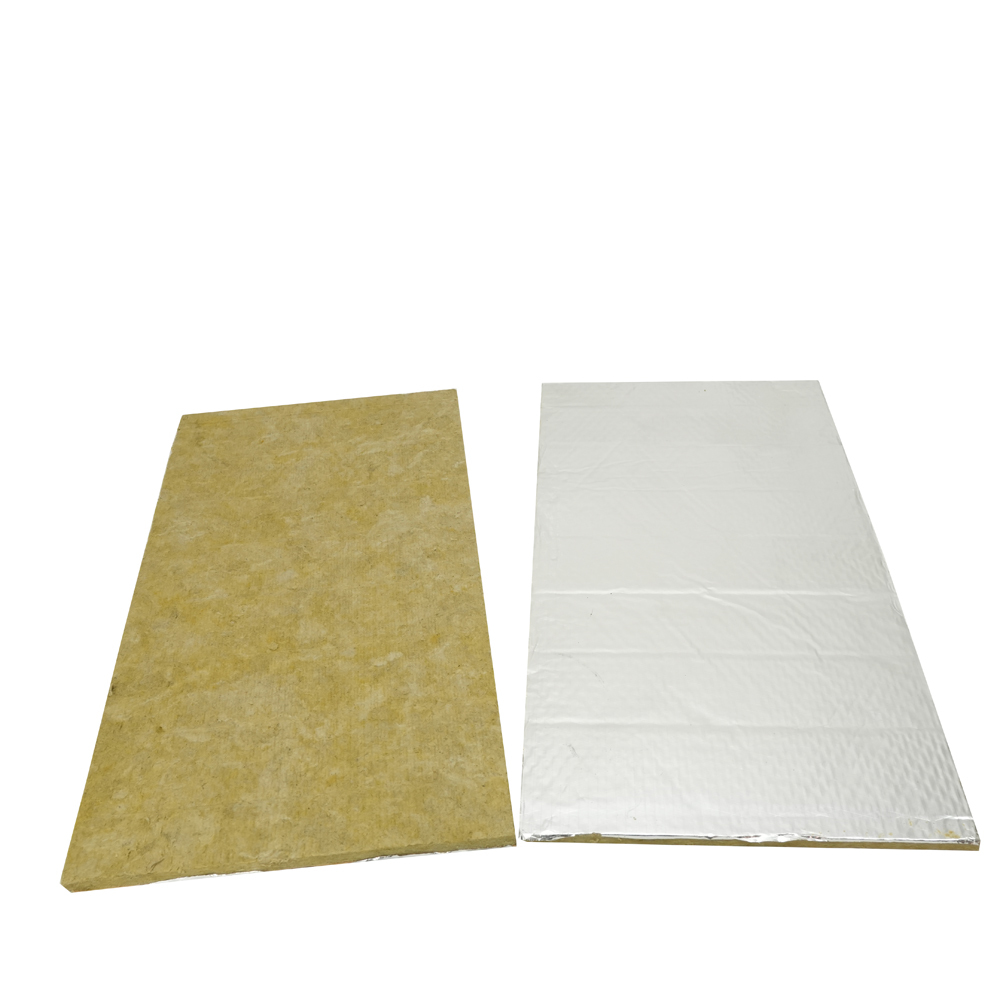

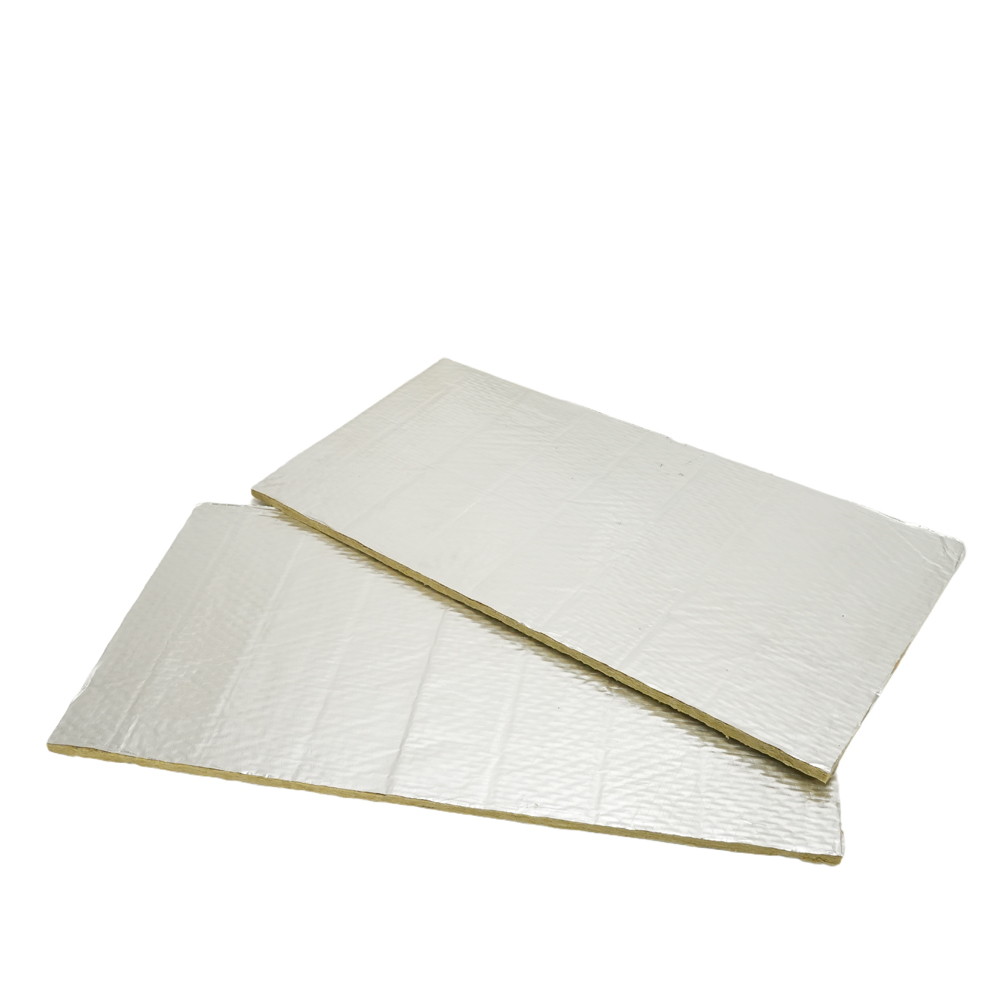

To maximize functional performance, the board is factory-laminated with a reinforced, puncture-resistant aluminum foil facing. This facing acts as both a radiant barrier—reflecting heat to enhance thermal efficiency—and a high-performance vapor barrier, protecting against moisture ingress, mold, and corrosion. The result is a durable, easy-to-handle solution ideal for HVAC ductwork, roofing, wall linings, and industrial applications requiring superior thermal and acoustic control.
Product feature of the rock wool board
Thermal & Energy Efficiency
The mineral wool and reflective foil work together to minimize heat transfer, delivering significant energy savings for heating and cooling.
Fire Safety
With an A1 non-combustible core and foil reinforcement, it offers high fire resistance without toxic emissions—remaining stable even under extreme heat.
Acoustic Performance
Its fibrous structure absorbs noise while the foil adds sound-blocking properties, ensuring superior indoor acoustic comfort.
Moisture & Corrosion Resistance
The foil acts as a reliable vapor barrier, keeping the core dry to prevent mold and corrosion.
Installation & Durability
Pre-cut panels with a tough foil surface enable quick installation and ensure long-term reliability.
Product Specifications
|
Properties |
Board |
Standards |
|
Density Tolerance |
±10% |
GB/T 19686-2005 |
|
Fire Performance |
Non-Combustible |
GB/T 5464-1999 |
|
Reaction to fire Class A1 |
GB/T 8624-2006 |
|
|
Thermal Conductivity (W/mK, at70±5℃) |
≤0.044 |
GB/T 10295 |
|
Fiber Diameter |
7(+/-1)um |
GB/T 5480. 4 |
|
Shot Content (shot size＞0.25mm) |
≤12% |
|
|
Moisture Content |
≤0.5% |
|
|
Organic Matter Content |
≤4% |
|
|
Melting Point |
＞1000℃ |
|
Product size
|
Product |
Board |
|
Density (kg/m3) |
40-200 |
|
Size :L x W (mm) |
600X1200 |
|
Thickness (mm) |
30-100 |
Product application
1. Building & Construction
External Wall Insulation: Thermal efficiency & fire protection for building facades.
Roofing Systems: Heat retention & acoustic control for all roof types.
Floating Floors: Impact sound insulation & structural support.
Partition Walls: Fire-rated acoustic separation for interior spaces.
2. Industrial & Pipeline Insulation
Large-Diameter Pipeline Insulation: Temperature maintenance & energy conservation.
Plant and Facility Cladding: Thermal/acoustic protection for industrial assets.
3. Sector-Specific Uses
-Public & Commercial Buildings: Safety-compliant insulation for high-occupancy spaces.
-Residential Buildings: Energy-saving comfort for homes and apartments.
-Industrial Plants: Heavy-duty performance for demanding environments.
Production Facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue
Production packing
1. Vacuum plastic bag
2. PE shrinking bag
Note: OEM is acceptable
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HCcontainer order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on rock wool board?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
