| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | FANEYN |
| 인증: | CE |
| 최소 주문 수량: | 하나의 40HQ |
| 포장 세부 사항: | PE 가방 |
| 배달 시간: | 10 근무일 |
| 지불 조건: | 티/티 |
| 애플리케이션: | 건물, 산업 설비용 단열재 | 치수: | 일반적으로 600mm x 1200mm |
|---|---|---|---|
| 설치방법: | 기계적 고정 또는 접착 결합 | 색상: | 노랑색이 갈색으로 됩니다 |
| 온도 저항: | -180°C ~ 700°C | 흡음계수: | 0.85 |
| 제품명: | 단열 미네랄 울 | 두께: | 25mm ~ 150mm |
| 밀도: | 40-200kg/m3 | 환경에 미치는 영향: | 재활용 가능, 친환경 |
| 수분흡수: | <1% | 내화성: | 불연성, 클래스 A1 |
| 열전도율: | 0.035W/m·K | 재료: | 미네랄 울 |
| 압축강도: | ≥10kPa |

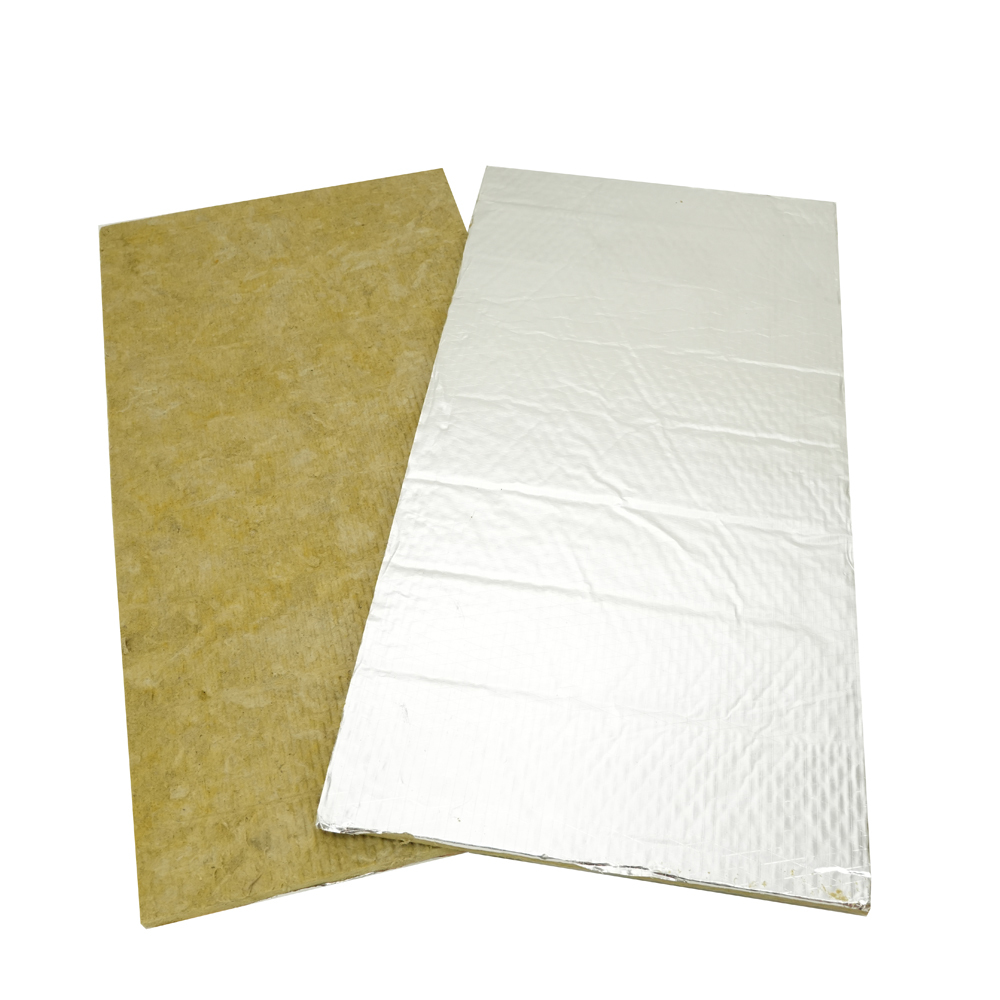

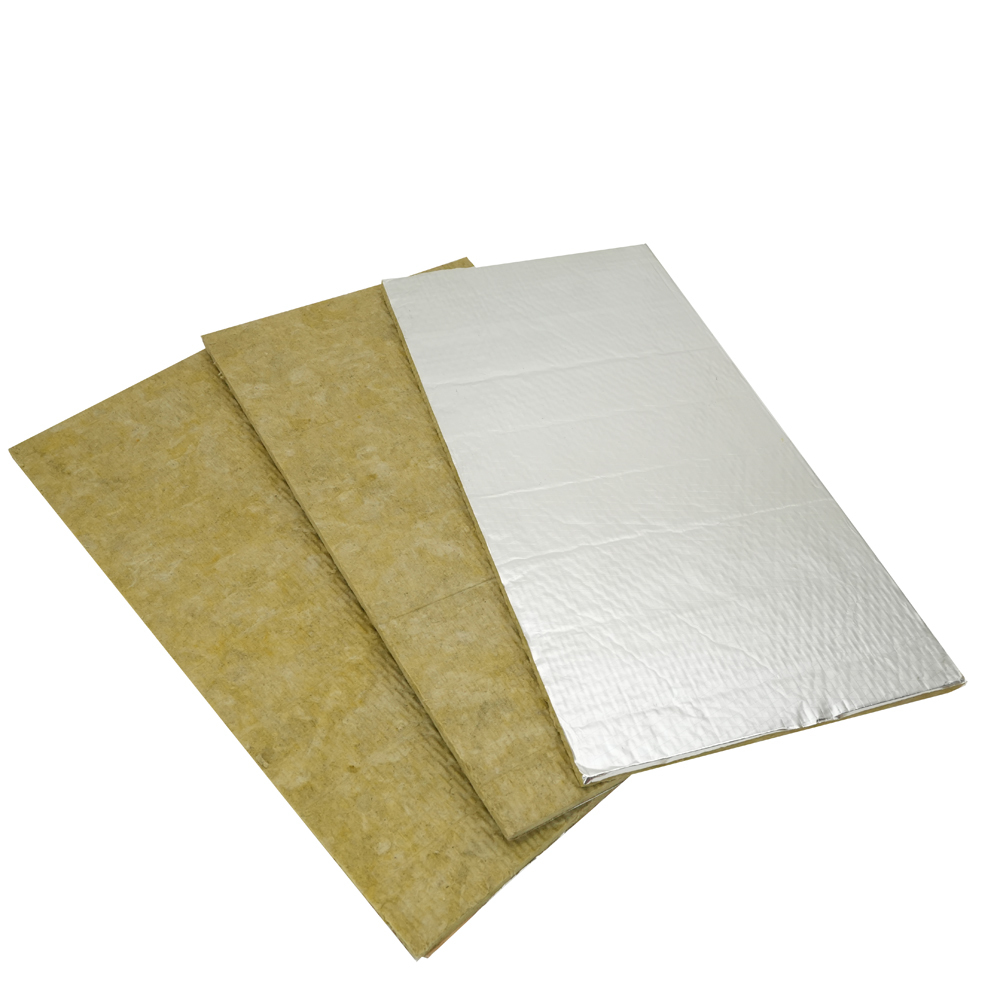

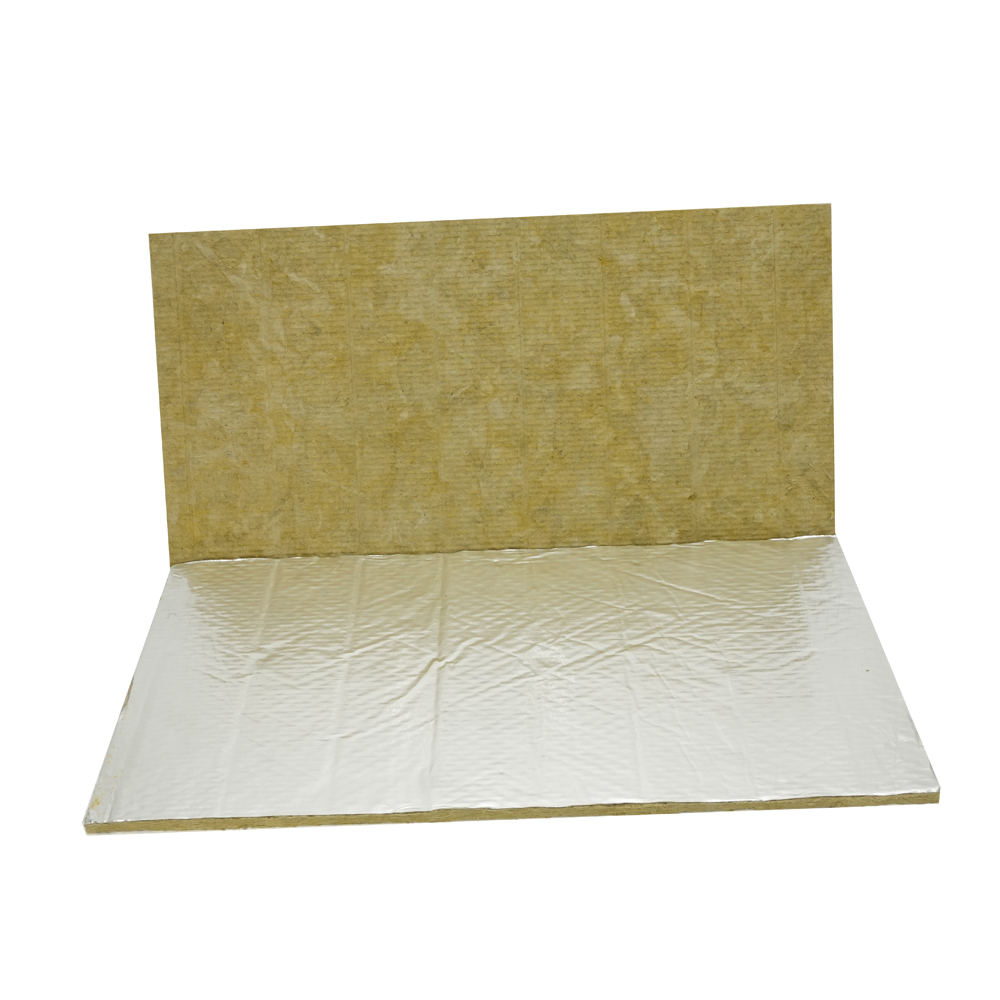

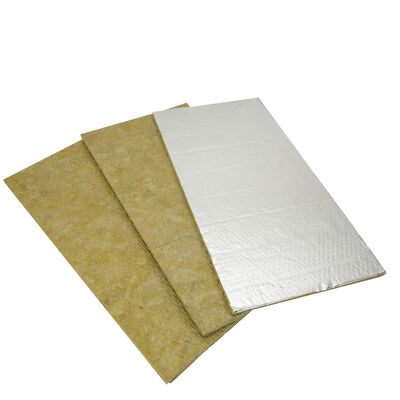

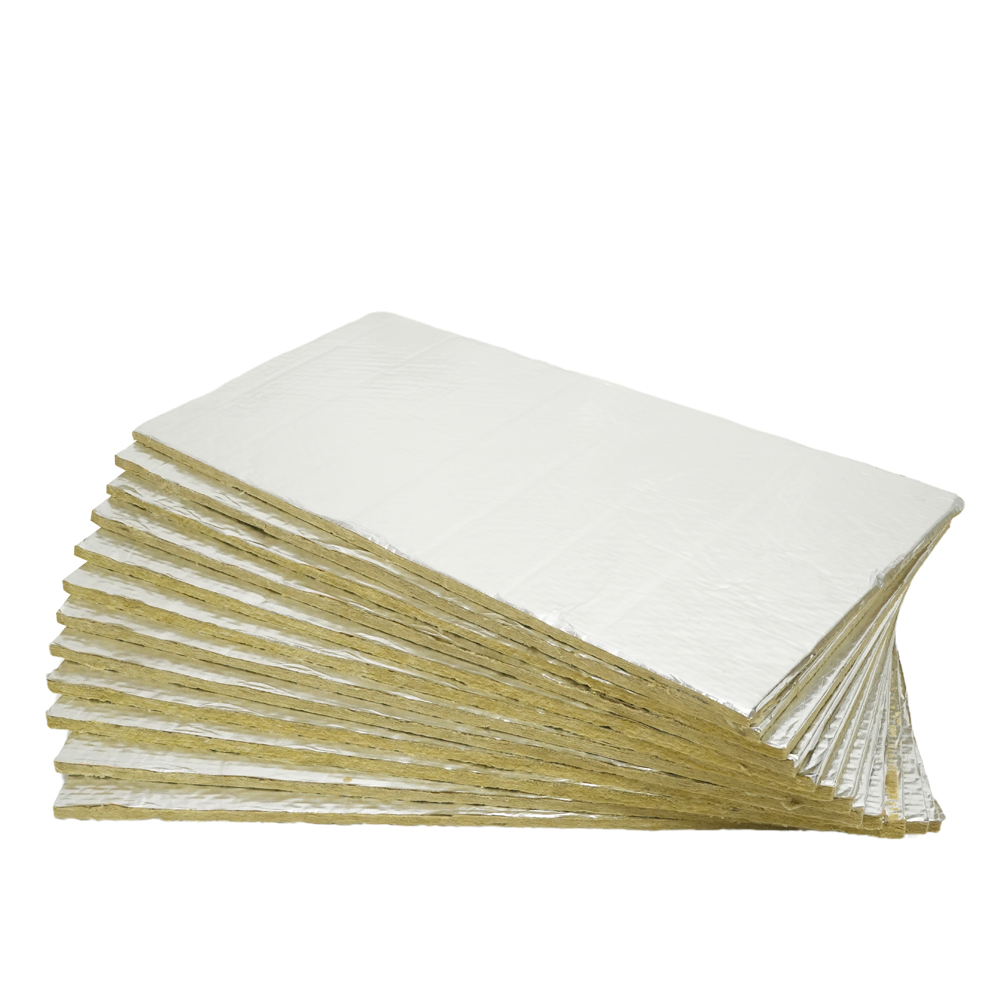

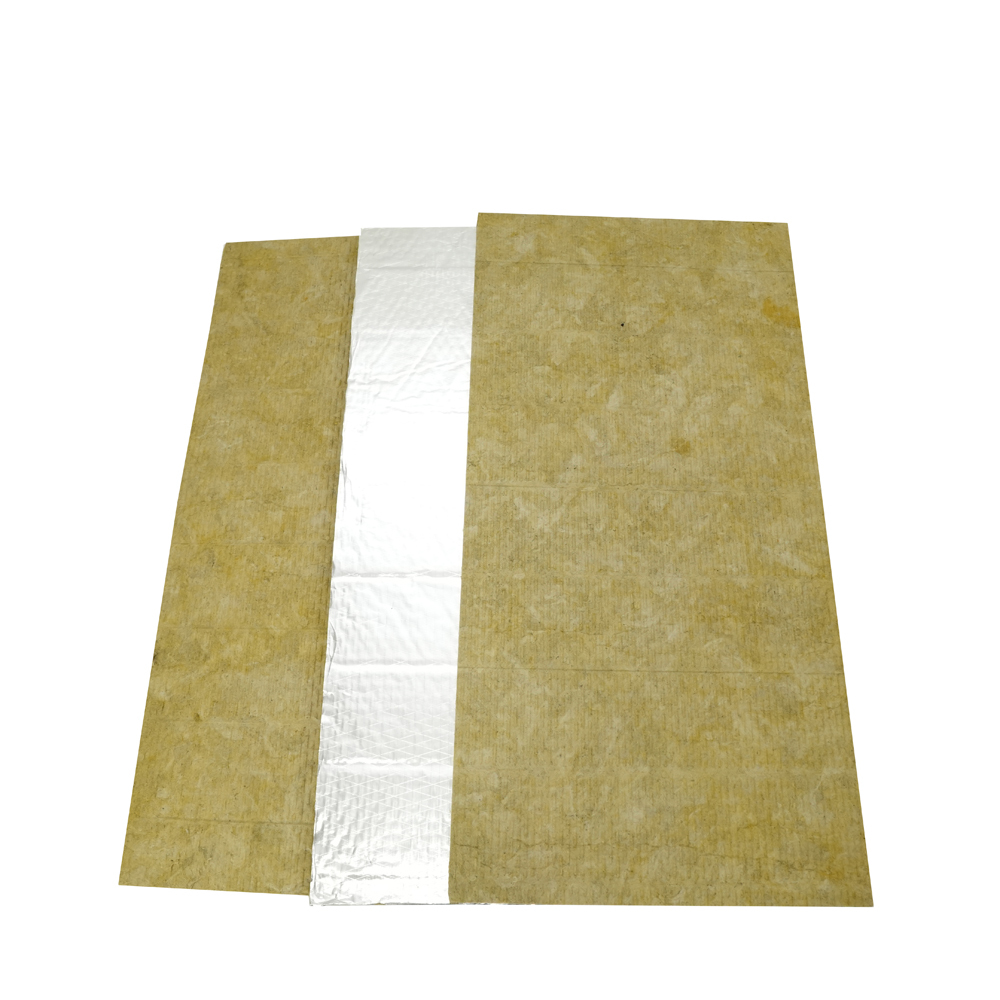

Rock wool board is a rigid insulation panel manufactured from natural basalt rock and recycled slag. The raw materials are melted at temperatures exceeding 1,500°C and spun into fine fibers, which are then bonded with a thermosetting resin and pressed into stable, rigid boards. The result is a dense, porous material that provides outstanding thermal, acoustic, and fire-resistant performance in a wide range of building and industrial applications.
| Feature | Benefit |
|---|---|
| A1 Non-combustible | Highest fire safety rating; melting point above 1,000°C; prevents flame spread |
| Low Thermal Conductivity | ≤0.044 W/(m·K) at 70°C for excellent energy efficiency |
| High Sound Absorption | Dense fiber structure effectively reduces mid-to-low frequency noise |
| Low Moisture Absorption | ≤0.5% water content; resists mold, rot, and corrosion |
| Dimensionally Stable | Maintains shape and performance over time |
| Easy to Install | Can be cut on-site with standard tools; suitable for irregular spaces |
| Eco-friendly | Made from natural stone; asbestos-free and non-toxic |
| Parameter | Specification |
|---|---|
| Density Range | 24 – 96 kg/m³ |
| Density Tolerance | ±10% |
| Thickness Range | 25 – 100 mm (customizable) |
| Length Range | 600 – 2,400 mm (customizable) |
| Width Range | 600 – 1,250 mm (customizable) |
| Thermal Conductivity | ≤0.044 W/(m·K) at 70±5°C |
| Fiber Diameter | 7 ± 1 μm |
| Shot Content (>0.25mm) | ≤12% |
| Moisture Content | ≤0.5% |
| Organic Matter Content | ≤4% |
| Melting Point | >1,000°C |
| Fire Rating | A1 Non-combustible |
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue
Unfaced boards are also available.
Standard: Plastic bag packaging
Custom packaging options available upon request
Building exterior wall insulation systems
Curtain wall fire barriers and cavity walls
Roof and ceiling insulation
HVAC duct insulation
Industrial pipe and equipment insulation
Core material for sandwich panels
Soundproofing in machine rooms, studios, and theaters
Marine and offshore insulation
