| Place of Origin: | Beijing, China |
|---|---|
| 브랜드 이름: | FANRYN |
| Model Number: | N yf |
| Minimum Order Quantity: | 300.0 Pieces |
| Supply Ability: | 200 Cubic Meter/Cubic Meters per Month |
| 보증: | 1년 | 판매 후 서비스: | 온라인 기술 지원 |
|---|---|---|---|
| 프로젝트 솔루션 능력: | 그래픽 디자인 | 적용: | 아파트, 파이프 |
| 디자인 스타일: | 산업 | 원래 장소: | 베이징, 중국 |
| 브랜드 이름: | FANRYN | 모델 번호: | n yf |
| 소재: | 현무암 | 제품 이름: | 방수 열 단열재 절연 |
| 색상: | 노란색 | 이름: | 단열음 사운드 증거 유리 울 |
| 두께: | 25-100mm | 밀도: | 80kg/m3 |
| 길이: | 1000mm 1200mm | 패키지: | 카튼 |
| 기능: | 열 보존 | ||
| 강조하다: | Industrial Insulation Glass Wool Pipe,Hot Steam Insulation Glass Wool Pipe,Fireproof Pipeline Insulation Glass Wool Pipe |
||
|
Recommend Thickness List(mm) |
|||||||
|
Pipeline System Type |
The Thickness of glasswood pipe shell applied in different pipeline(mm) |
||||||
|
Liquid Temperature Range℃ |
Diameter of Branches Under 50mm |
Under 25mm |
32-50 |
64-100 |
125-150 |
Above 200mm |
|
|
Air System Steaming and Water System High Temperature/High Pressure System |
152-238 |
40 |
64 |
64 |
75 |
89 |
89 |
|
Medium Temperature/Medium Pressure System |
122-151 |
40 |
50 |
64 |
64 |
75 |
75 |
|
low Temperature/low Pressure System |
94-121 |
25 |
40 |
40 |
50 |
50 |
50 |
|
low Temperature System |
49-93 |
13 |
25 |
25 |
40 |
40 |
40 |
|
Steaming Condensator of Watering System |
Any Temperature |
25 |
25 |
40 |
50 |
50 |
50 |
Facing For glass wool blanket :
Specification:
|
Density(kg/m3) |
Thickness(mm) |
Length (mm) |
Diameter (mm) |
|
48-80 |
25-90 |
1000,1200 |
18-529 |

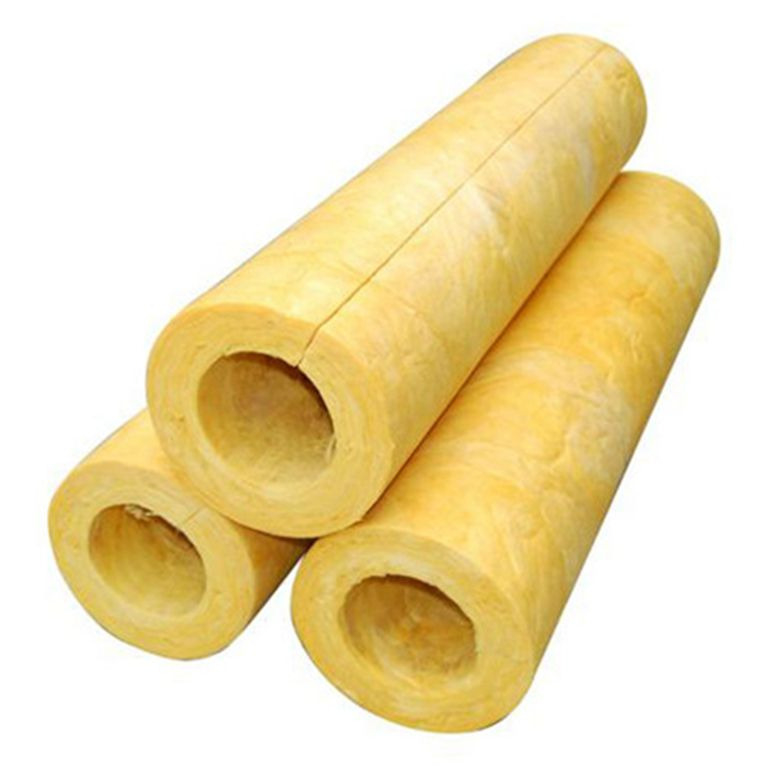

Product introduction of the Glass Wool Pipe

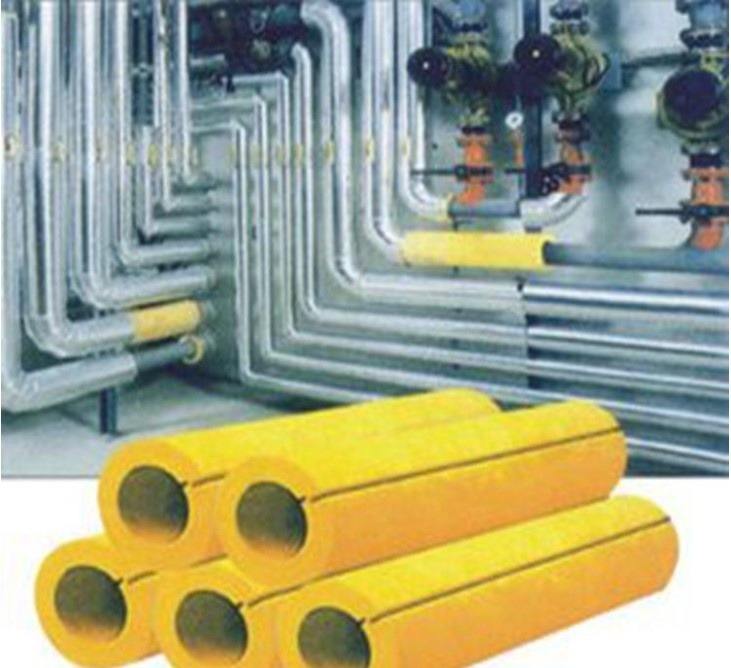

Glass wool Pipe Section is a kind of economical insulating material which is light and easy to install. This material has excellent performance of heat and sound insulation under both extremely high and low temperature conditions(.-85 degree to 454 degree) Therefore, glass wool section pipes are widely used on heat and sound insulation of ventilating ducts, industrial & civil heat supplying and all kinds of heating, cooling pipelines.
If you are interested in our products,please { click here }to see all the products
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 10-15 work days after placing order.
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
