| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | FANRYN |
| 포장 세부 사항: | 비닐 봉지 |
| 배달 시간: | 15 일 |
| 지불 조건: | t/t |
| 건설: | 카트리지 필터 | 전력 소비: | 일반 300와트 |
|---|---|---|---|
| 도달하다: | 0.9m | 구성 요소가 포함되어 있습니다: | 다른 |
| 모델: | 51401642-150 | 샘플 시간: | 3-5 일 |
| 축: | 4 | 동시발생 세션: | 20Gbps |
| 최대 범위: | 2100mm | 기계 테스트 보고서: | 제공 |
| 스쿠: | IC660BSM120 | 구멍 유형: | 둥근 |
| 금속 유형: | 스테인레스 스틸 | 최대 적재 중량: | 110kg |
| 차단: | 개별 갈바닉 절연 채널 | ||
| 강조하다: | flexible rubber foam insulation pipe,energy-saving air conditioning insulation,central air conditioning foam pipe |
||

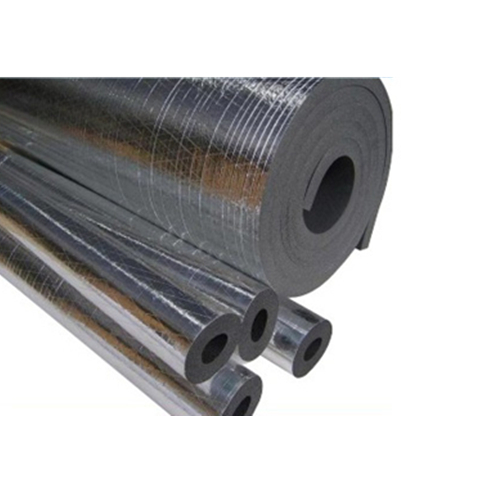

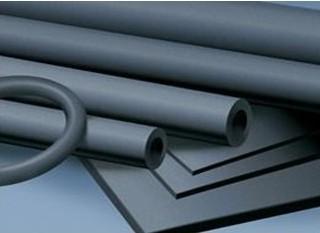

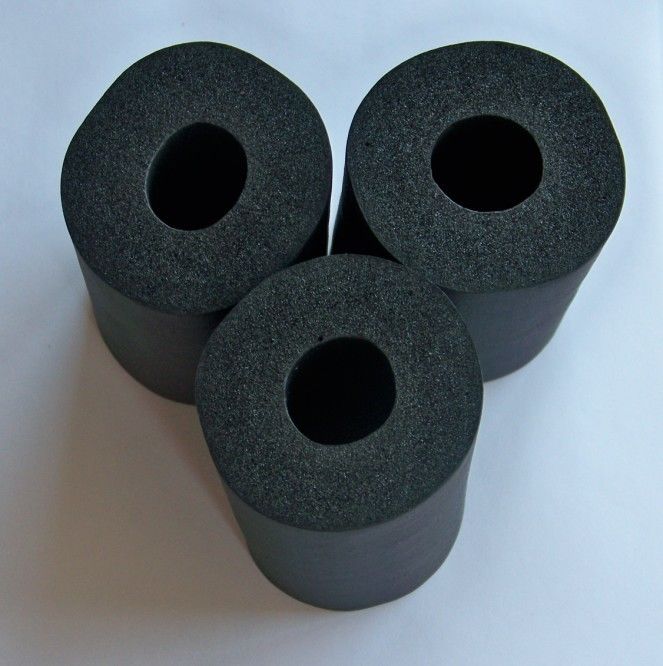

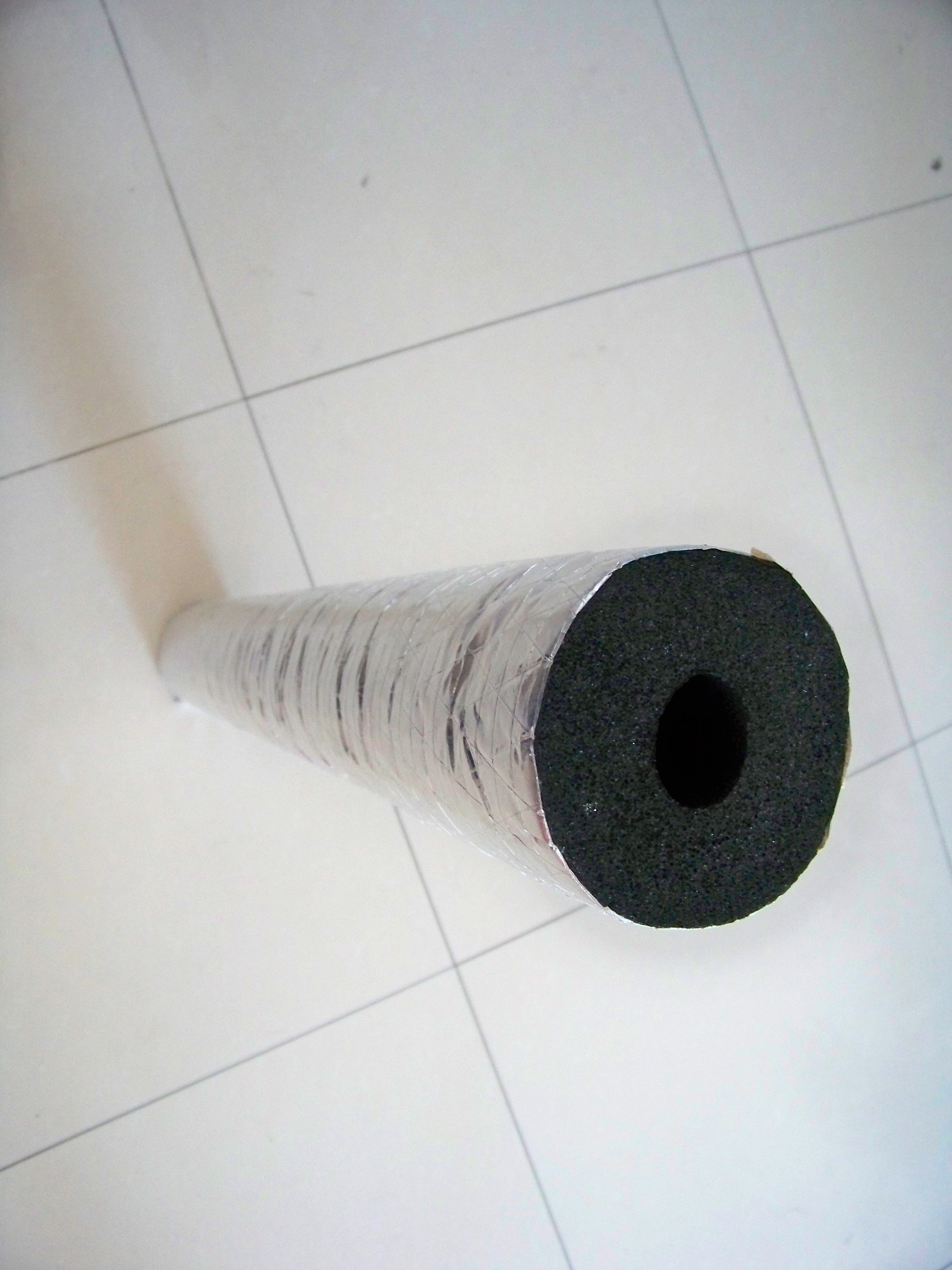

FANRYN CLASS B1 Rubber Plastic Insulation Pipe is a flexible, closed-cell insulation material designed for superior thermal performance and moisture resistance. Its black finish is not only aesthetically pleasing but also highly functional. With low thermal conductivity and excellent fireproof properties, it is ideal for use in air conditioning systems, particularly for chilled water and condensate pipes. The material ensures energy efficiency, reduces heat loss, and prevents condensation buildup, making it a reliable choice for commercial and residential HVAC applications.
| Item | Unit | Specification | Standard | |
|---|---|---|---|---|
| Density | Kg/m3 | 40~90 | GB/T 6343 | |
| Temperature | ℃ | -50~110 | GB/T 17794 | |
| Flammability | —— | B | GB/T 8624-2006 | |
| B1 | BS476Part 7∝Part6 | |||
| Oxy gen index | % | ≥40 | GB/T 2406 | |
| SDR | ≤65 | GB 8627-1999 | ||
| Conductivity factor Average temperature -20℃ 0℃ 40℃ |
W/(m·k) | ≤0.031 ≤0.034 ≤0.036 |
GB/T 10294 | |
| Water vapor permeability | Factor | —— | ≥1.0*104 | GB/T 17146-1997 |
| coefficient | g/(m.s.pa) | ≤1.96*10-11 | ||
| Water absorption ratio in vacuum | % | ≤10 | GB/T 17794-2008 | |
| Dimension stability 105±3℃,7d |
% | ≤10 | GB/T 8811 | |
| Crack resistance | N/cm | ≥2.5 | GB/T 10808 | |
| Compression resilience ratio | % | ≥70 | GB/T 6669 | |
| Anti-ozone | —— | Not cracking | GB/T 7762 | |
| Agin resistance | —— | Slightly crumpling,no cracks,no pin holes,not deforming | GB/T 16259 | |
| Tube inner diameter (mm) | 9mm thick (1.8m/piece) |
15mm thick (2m/piece) |
20mm thick (2m/piece) |
25mm thick (2m/piece) |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Size (mm*mm) |
Piece | Piece/box | Size (mm*mm) |
Piece | Size (mm*mm) |
Piece | Size (mm*mm) |
Piece | |
| 6 | 6*9 | 180 | 180 | ||||||
| 10 | 10*9 | 140 | 140 | 10*15 | 80 | 10*20 | 70 | ||
| 13 | 13*9 | 120 | 100 | 13*15 | 80 | 13*20 | 50 | ||
| 16 | 16*9 | 100 | 95 | 16*15 | 60 | 16*20 | 50 | ||
| 19 | 19*9 | 100 | 80 | 19*15 | 60 | 19*20 | 40 | ||
| 22 | 22*9 | 100 | 70 | 22*15 | 60 | 22*20 | 40 | 22*25 | 30 |
| 25 | 25*9 | 80 | 55 | 25*15 | 60 | 25*20 | 30 | 25*25 | 25 |
| 28 | 28*9 | 60 | 50 | 28*15 | 50 | 28*20 | 30 | 28*25 | 25 |
| 32 | 32*9 | 60 | 45 | ||||||
| 34 | 34*15 | 40 | 34*20 | 30 | 34*25 | 25 | |||
| 35 | 35*9 | 60 | 40 | ||||||
| 38*9 | 50 | 30 | |||||||
| 42 | 42*9 | 50 | 30 | ||||||
| 43 | 43*9 | 50 | 30 | 43*15 | 30 | 43*20 | 25 | 43*25 | 20 |
| 48 | 48*9 | 50 | 28 | 48*15 | 30 | 48*20 | 25 | 48*25 | 20 |
| 54 | 54*9 | 50 | 25 | ||||||
| 60 | 60*9 | 50 | 20 | 60*15 | 30 | 60*20 | 20 | 60*25 | 15 |
| 76 | 76*15 | 25 | 76*20 | 15 | 76*25 | 15 | |||
| 89 | 89*20 | 15 | 89*25 | 15 | |||||
| 108 | 108*20 | 15 | 108*25 | 10 | |||||
Note: OEM is acceptable
A1: Our experienced QC team will inspect product's quality in every process
A2: Plastic bag (Standard Export Packing).
A3: Usual 15-20 work days after placing order.
A4: Special product with special specification can be made to order.
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
