| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | FANRYN |
| 포장 세부 사항: | 비닐 봉지 |
| 배달 시간: | 15 |
| 지불 조건: | t/t, l/c |
| 내구성: | 오래 지속되고 시간이 지남에 따라 정착하지 않습니다 | 온도 저항: | 최대 1000 ° C |
|---|---|---|---|
| 밀도: | 10-100 kg/m3 | 유형: | 열 절연 |
| 수분 흡수: | 1% 미만 | 화학 저항: | 대부분의 화학 물질에 내성이 있습니다 |
| 열전도율: | 0.035-0.045 w/mk | 신청: | 주거용 및 상업용 건물 모두에 적합합니다 |
| 재료: | 미네랄 울 | 흡수: | 0.9-1.0 NRC |
| 단열 값: | R-3.5 인치 | 크기: | 4ft x 8ft의 표준 크기 |
| 설치 방법: | 절단 및 설치가 용이함 | 환경 친화적: | 천연재로 만들어지고 재활용가능한 재료로 |
| 내화성: | 클래스 A1 | ||
| 강조하다: | glass wool pipe insulation HVAC,thermal acoustic duct insulation,mineral wool pipe insulation |
||
| Attribute | Value |
|---|---|
| Durability | Long-lasting and does not settle over time |
| Temperature Resistance | Up to 1000°C |
| Density | 10-100 kg/m3 |
| Type | Thermal Insulation |
| Moisture Absorption | Less than 1% |
| Chemical Resistance | Resistant to most chemicals |
| Thermal Conductivity | 0.035-0.045 W/mK |
| Application | Suitable for both residential and commercial buildings |
| Material | Mineral Wool |
| Sound Absorption | 0.9-1.0 NRC |
| Insulation Value | R-3.5 per inch |
| Size | Standard size of 4ft x 8ft |
| Installation Method | Easy to cut and install |
| Environmental Friendly | Made from natural and recyclable materials |
| Fire Resistance | Class A1 |

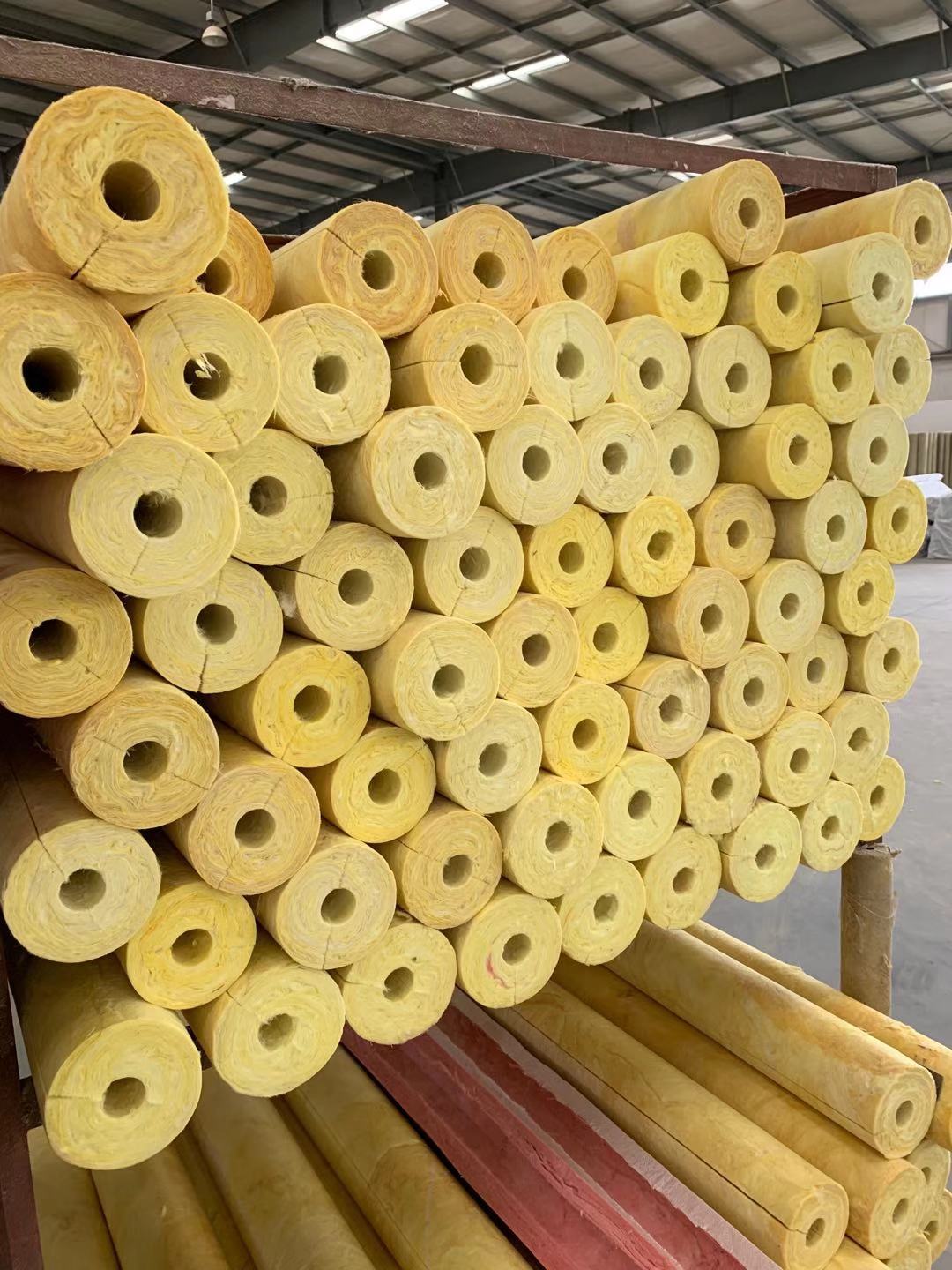

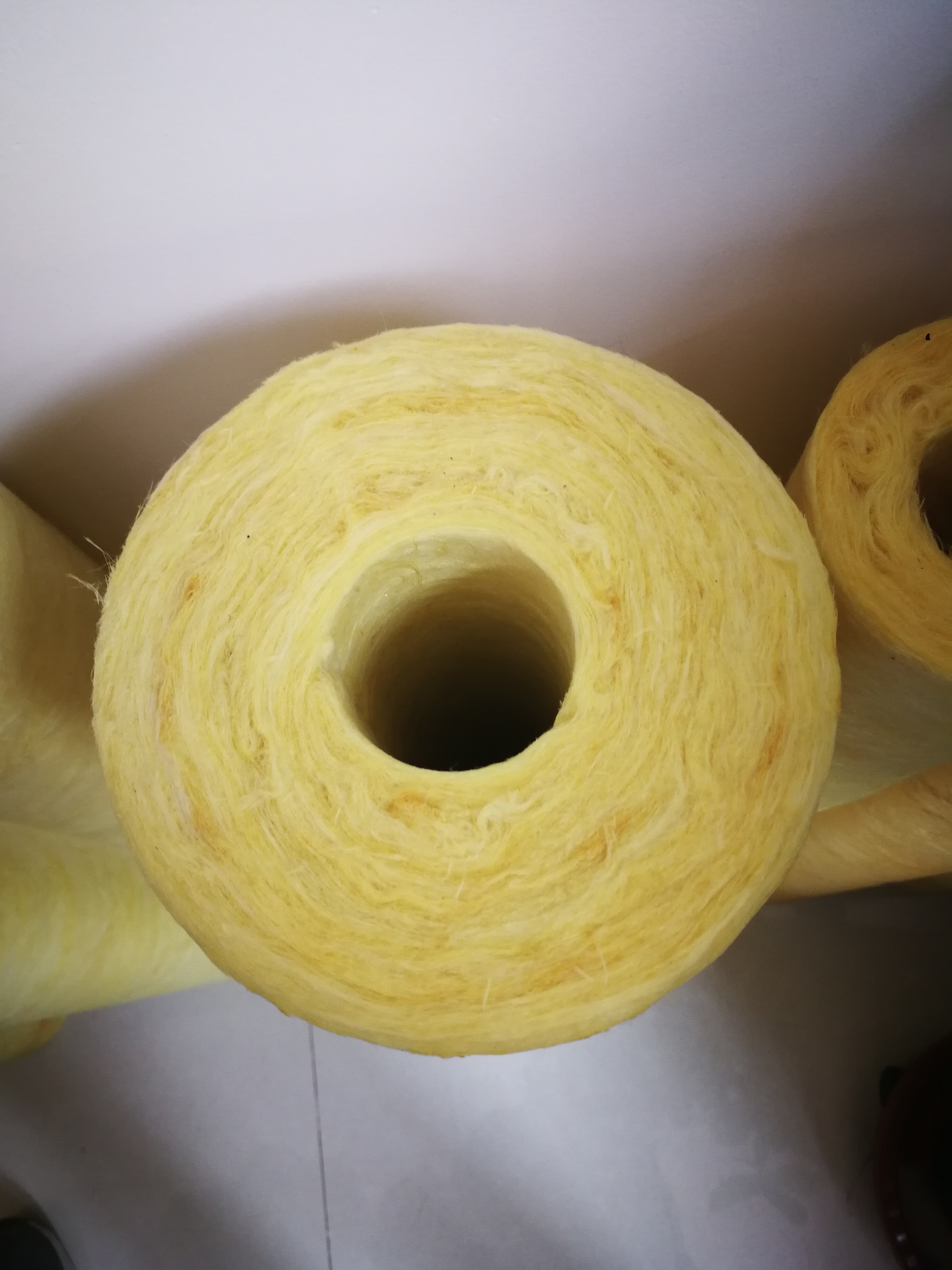

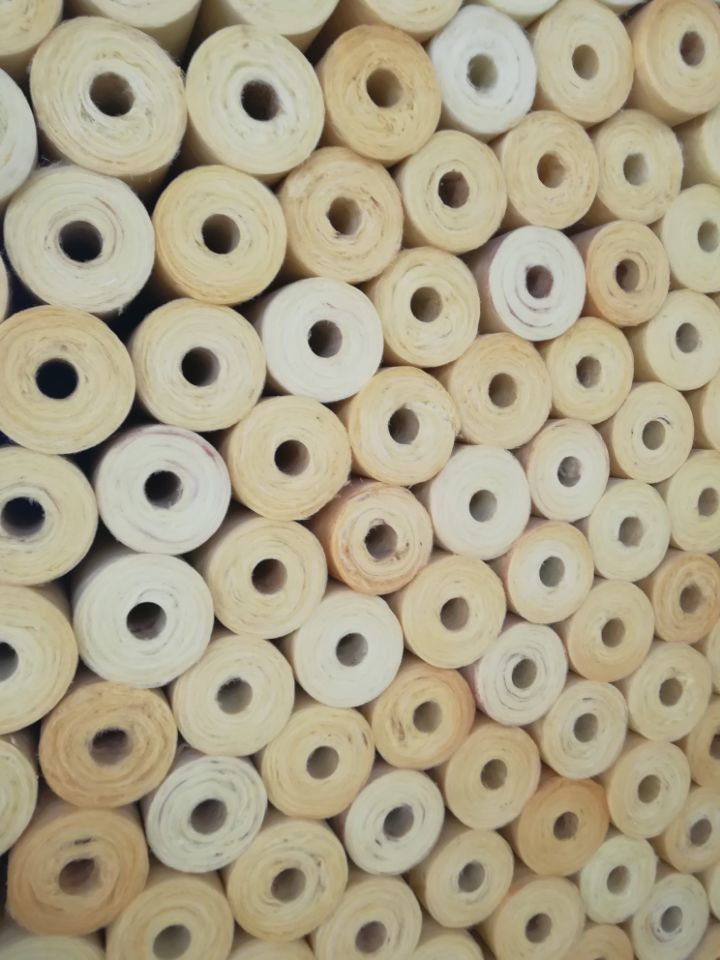

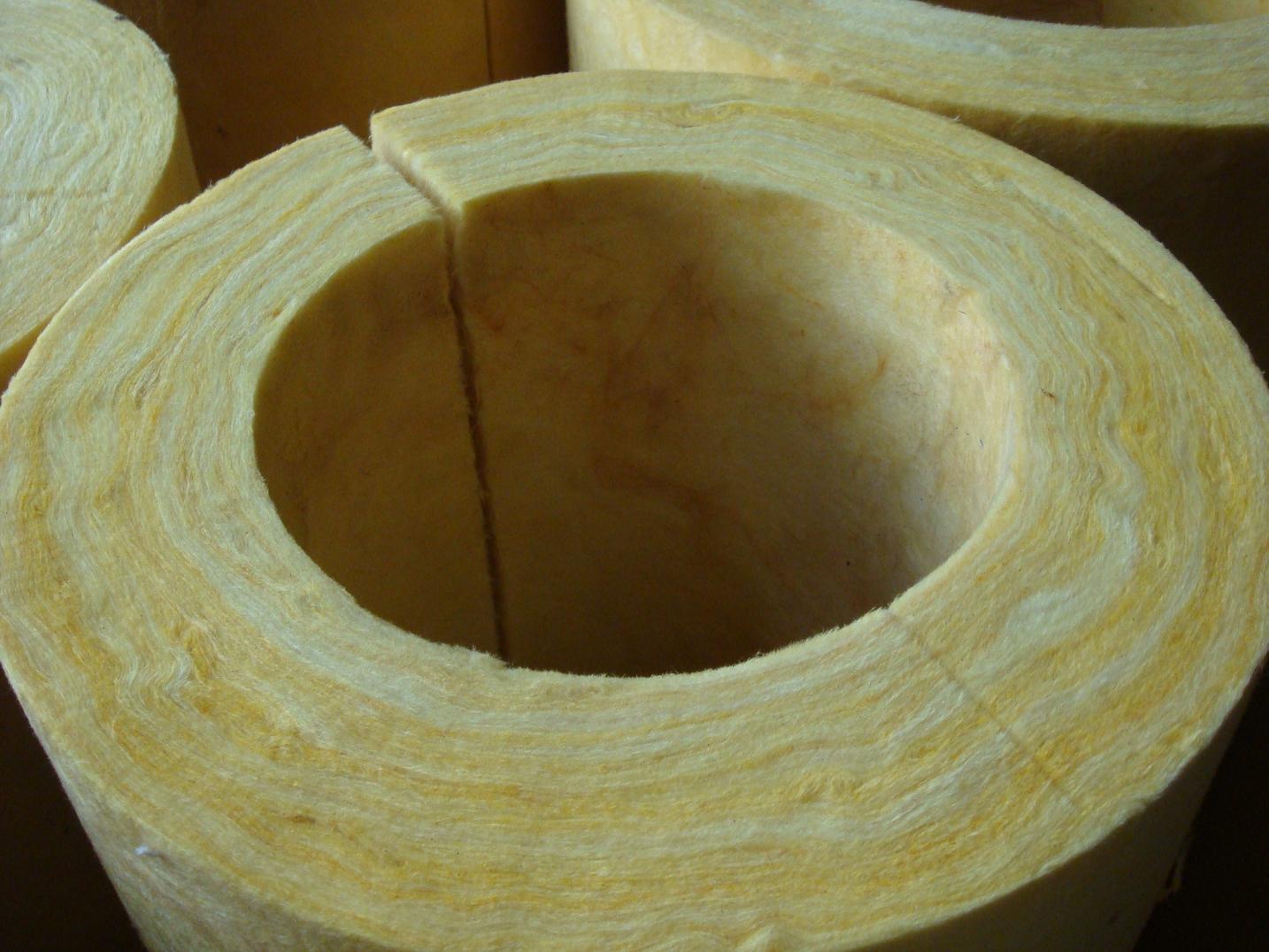

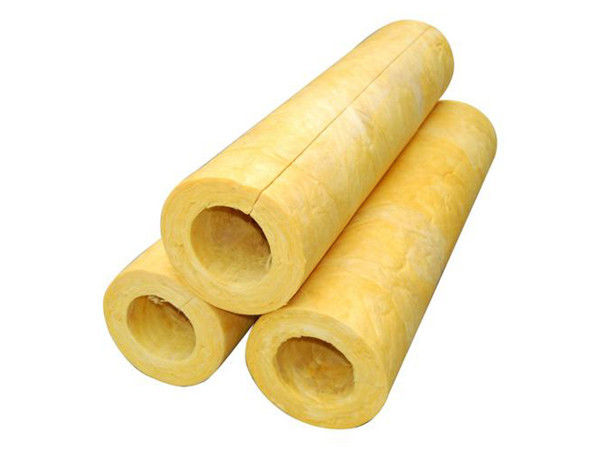

Designed for extreme environments, our glass wool pipe sections provide reliable thermal insulation for industrial heating systems and high-pressure steam pipelines. Withstanding temperatures from -85°C to 454°C, these pre-formed pipes ensure energy efficiency and safety in chemical plants, power stations, and manufacturing facilities. The material's excellent acoustic properties also reduce operational noise, contributing to a safer working environment.
| Recommend Thickness List(mm) | Pipeline System Type | The Thickness of glasswood pipe shell applied in different pipeline(mm) |
|---|---|---|
| Liquid Temperature Range℃ | Diameter of Branches Under 50mm | Under 25mm |
| Air System Steaming and Water System High Temperature/High Pressure System | 152-238 | 40 |
| Medium Temperature/Medium Pressure System | 122-151 | 40 |
| low Temperature/low Pressure System | 94-121 | 25 |
| low Temperature System | 49-93 | 13 |
| Steaming Condensator of Watering System | Any Temperature | 25 |
| Density(kg/m3) | Thickness(mm) | Length (mm) | Diameter (mm) |
|---|---|---|---|
| 48-80 | 25-90 | 1000,1200 | 18-529 |
