| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | FANRYN |
| 포장 세부 사항: | 비닐 봉지 |
| 배달 시간: | 15 일 |
| 지불 조건: | t/t |
| 수분 흡수: | ≤0.2% | 수분 저항: | 좋은 |
|---|---|---|---|
| 흡수: | 0.9-1.0 NRC | 열전도율: | 0.035 w/mk |
| 치수 안정성: | ≤1% | 압축 강도: | ≥40 kPa |
| 인장 강도: | ≥7 kPa | 굽힘 강도: | ≥14 kPa |
| 화학 저항: | 좋은 | 재료: | 미네랄 울 |
| 밀도: | 40-200kg/m3 | 내화성: | 클래스 A1 |
| 서비스 온도: | -50C 내지 650C | 열 안정성: | ≥ 1000°C |
| 강조하다: | Kraft-based vapor barrier FSK,FSK facing wall insulation,Floor insulation vapor barrier |
||

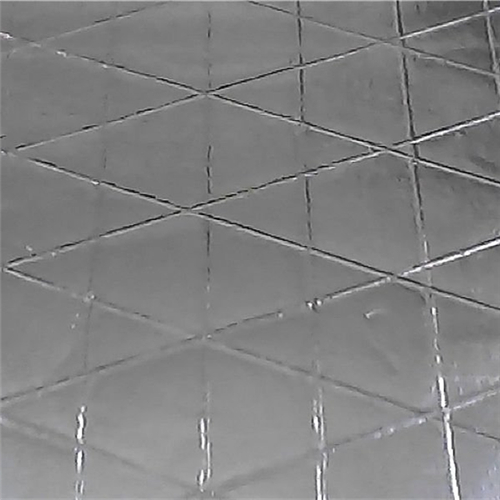

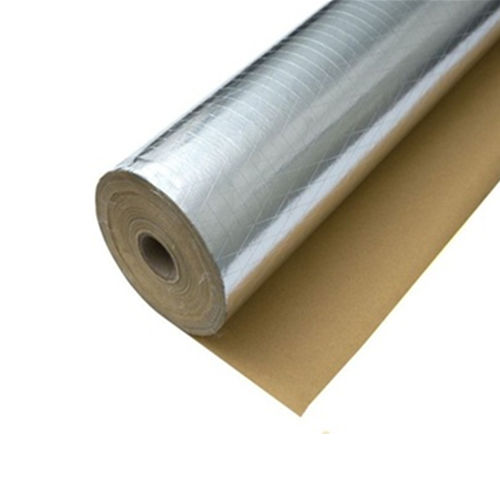

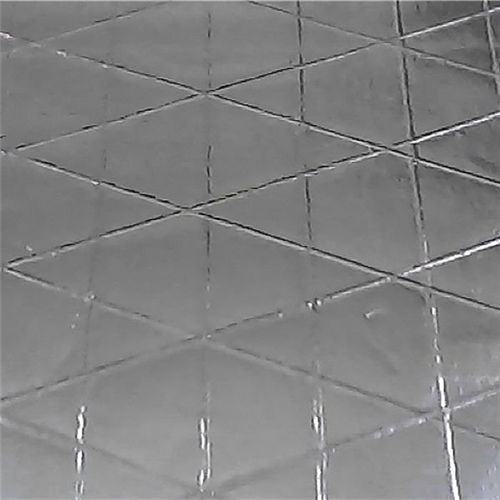

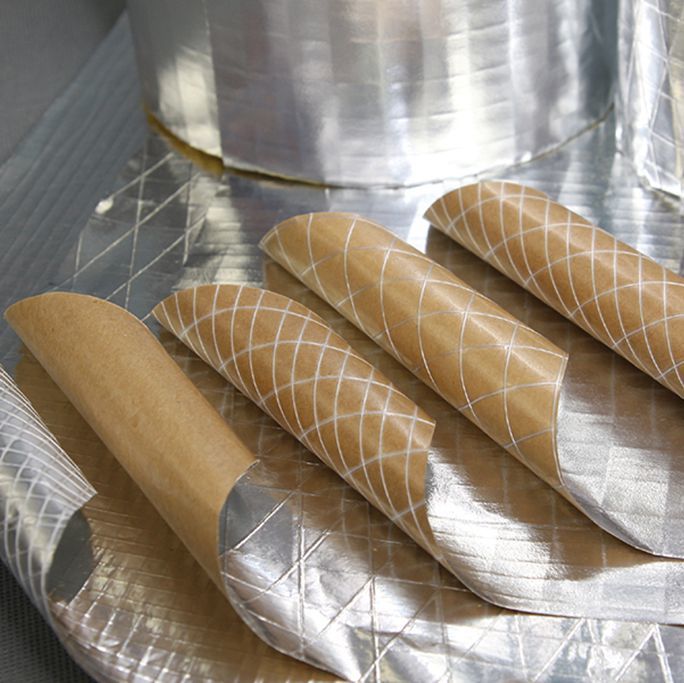

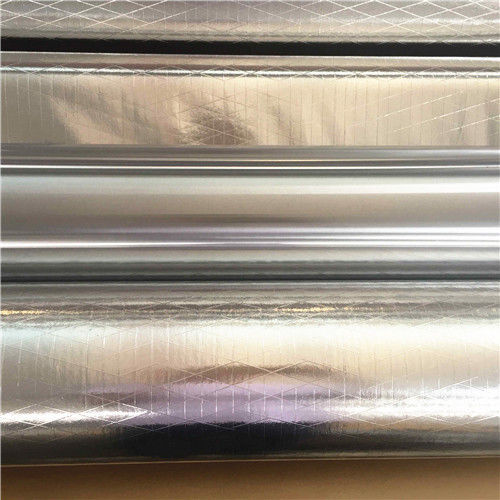

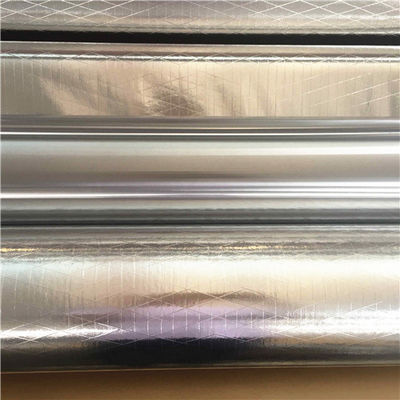

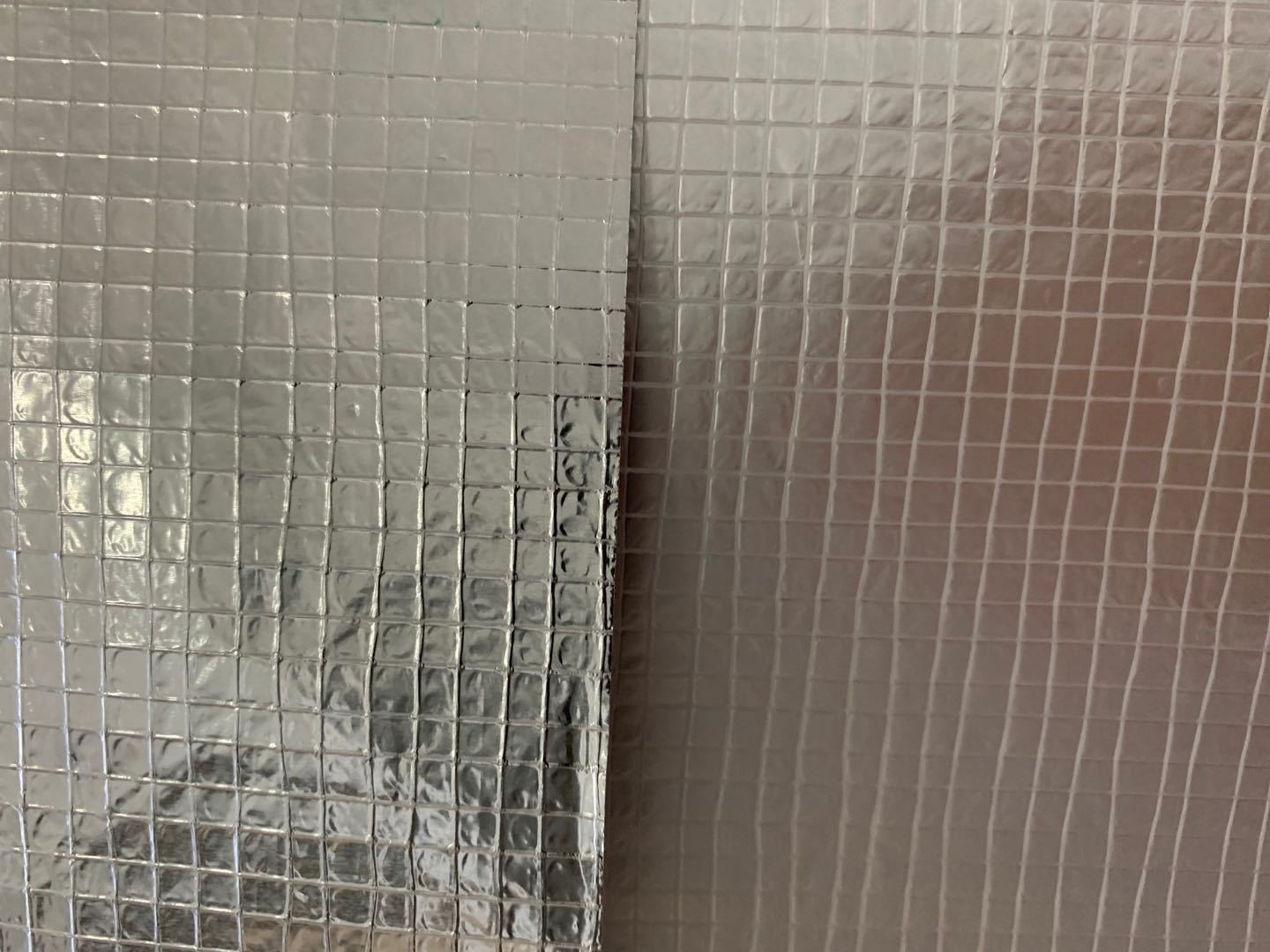

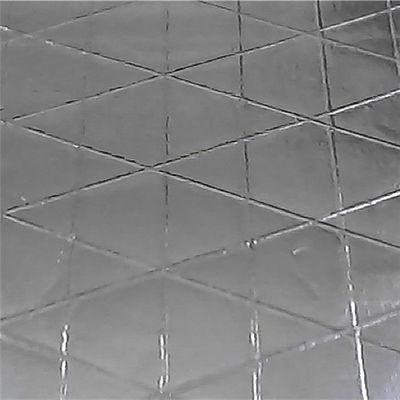

This FSK Facing variant is designed for use in walls and floors as a vapor barrier and insulation facing. Made with reinforced kraft paper and fiberglass scrim, it provides superior tensile strength and burst resistance. It is commonly used in combination with mineral wool or fiberglass batts to enhance insulation performance and prevent moisture buildup.
| Product | Construction |
|---|---|
| FS - 750 | Foil: 7 micron / Polyethylene / 50 gsm Kraft paper |
| FS - 760 | Foil: 7 micron / Polyethylene / 60 gsm Kraft paper |
| FSK-7160A | Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 60 gsm Kraft paper |
| FSK- R7160A | Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Fire retardant adhesive / 60 gsm Kraft paper |
| FSK-7160B | Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 60 gsm Kraft paper |
| FSK-R7160B | Foil: 7 micron / 2-ways scrim ( 12.5x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper |
| FSK - 7180A | Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 80 gsm Kraft paper |
| FSK - 7180B | Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 80 gsm Kraft paper |
| FSK -73B | Foil: 7 micron / 2-ways scrim ( 6.25x 12.5mm) / Polyethylene / 60 gsm Kraft paper |
| FSK -R73B | Foil: 7 micron / 2-ways scrim ( 6.25 x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper |
| Product | Basic weight (g/m²) | Tensile MD (n/25mm) | Tensile XD (n/25mm) | Bursting Strength(n) | WVTR (ng/N.s) | Reflectivity of Foil Surface | Temperature Resistance (℃) | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| FS - 750 | 80 | 95 | 50 | 20 | 5.75 | 95% | -29~ +66 | ----- |
| FS - 760 | 85 | 105 | 50 | 20 | 5.75 | 95% | -29~ +66 | ----- |
| FSK - 7160A | 96 | 125 | 50 | 30 | 5.75 | 95% | -29~ +66 | ----- |
| FSK - R7160A | 98 | 130 | 50 | 30 | 5.75 | 95% | -29~ +66 | Class 1 |
| FSK - 7160B | 98 | 132 | 65 | 30 | 5.75 | 95% | -29~ +66 | ----- |
| FSK - R7160B | 100 | 136 | 65 | 30 | 5.75 | 95% | -29~ +66 | Class 1 |
| FSK - 7180A | 115 | 150 | 75 | 40 | 5.75 | 95% | -29~ +66 | ----- |
| FSK - 7180B | 95 | 150 | 80 | 40 | 5.75 | 95% | -29~ +66 | ----- |
