| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | FANRYN |
| 포장 세부 사항: | 비닐 봉지 |
| 배달 시간: | 근무일 기준 10일 |
| 지불 조건: | 티/티 |
| 밀도: | 40-200kg/m3 | 환경 영향: | 친환경 |
|---|---|---|---|
| 증기 투과성: | 0.1ng/Pa.sm | 흡수: | 0.9 NRC |
| 열전도율: | 0.035 w/mk | 설치 방법: | 루스필 또는 배트/롤 |
| 내화학성: | 대부분의 화학 물질에 내성이 있습니다 | 화재 등급: | 클래스 A1 |
| 치수 안정성: | ≤1% | 재료: | 미네랄 울 |
| 수분 저항: | 비수경 | 온도 저항: | 최대 650°C |
| 수분 흡수: | ≤1% | 압축 강도: | ≥40 kPa |
| 강조하다: | FSK facing insulation laminate,professional FSK facing material,FSK facing for insulation lamination |
||

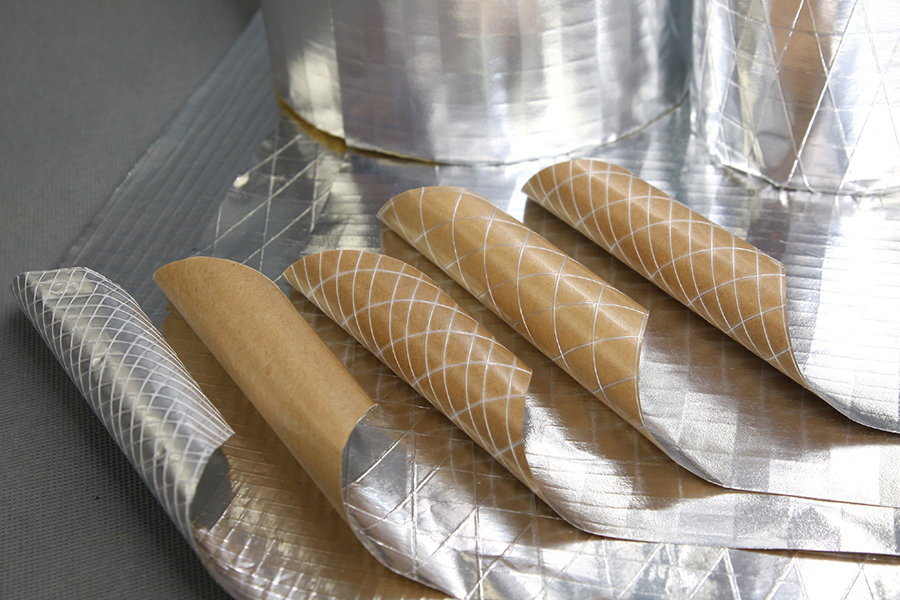

As an ideal laminating material, PSK Facing is engineered to be bonded with glass wool, rock wool, and mineral wool. It transforms standard insulation batts into complete, high-performance systems by adding a tough, protective jacket that acts as a vapor and radiant barrier.
| Product | Construction |
|---|---|
| FS - 750 | Foil: 7 micron / Polyethylene / 50 gsm Kraft paper |
| FS - 760 | Foil: 7 micron / Polyethylene / 60 gsm Kraft paper |
| FSK-7160A | Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 60 gsm Kraft paper |
| FSK- R7160A | Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Fire retardant adhesive / 60 gsm Kraft paper |
| FSK-7160B | Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 60 gsm Kraft paper |
| FSK-R7160B | Foil: 7 micron / 2-ways scrim ( 12.5x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper |
| FSK - 7180A | Foil: 7 micron / 3-ways scrim ( 8x12 threads/100mm) / Polyethylene / 80 gsm Kraft paper |
| FSK - 7180B | Foil: 7 micron / 2-ways scrim ( 12.5 x 12.5mm) / Polyethylene / 80 gsm Kraft paper |
| FSK -73B | Foil: 7 micron / 2-ways scrim ( 6.25x 12.5mm) / Polyethylene / 60 gsm Kraft paper |
| FSK -R73B | Foil: 7 micron / 2-ways scrim ( 6.25 x 12.5mm) / Fire retardant adhesive / 60 gsm Kraft paper |
| Product | Basic weight (g/m²) | Tensile MD (n/25mm) | Tensile XD (n/25mm) | Bursting Strength(n) | WVTR (ng/N.s) | Reflectivity of Foil Surface | Temperature Resistance (℃) | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| FS - 750 | 80 | 95 | 50 | 20 | 5.75 | 95% | -29~ +66 | ----- |
| FS - 760 | 85 | 105 | 50 | 20 | 5.75 | 95% | -29~ +66 | ----- |
| FSK - 7160A | 96 | 125 | 50 | 30 | 5.75 | 95% | -29~ +66 | ----- |
| FSK - R7160A | 98 | 130 | 50 | 30 | 5.75 | 95% | -29~ +66 | Class 1 |
| FSK - 7160B | 98 | 132 | 65 | 30 | 5.75 | 95% | -29~ +66 | ----- |
| FSK - R7160B | 100 | 136 | 65 | 30 | 5.75 | 95% | -29~ +66 | Class 1 |
| FSK - 7180A | 115 | 150 | 75 | 40 | 5.75 | 95% | -29~ +66 | ----- |
| FSK - 7180B | 95 | 150 | 80 | 40 | 5.75 | 95% | -29~ +66 | ----- |
Perfect for Laminating: Designed specifically to adhere to various insulation cores.
Adds Protective Layer: Shields insulation from physical damage and moisture ingress.
Improves System Performance: Enhances the overall thermal and acoustic performance of the insulation.
Customizable Sizes: Available in multiple widths (1.0m to 1.3m) and roll lengths (100m to 1000m).
Applications
Creating pre-fabricated insulation panels
Laminating insulation for walls and ceilings
Industrial and residential insulation systems
Q: What are the benefits of your FSK facing?
A: Our FSK facing is light,soft,dust free,fire resistant,easy to install. Also the material is eco-friendly, non-toxic and have better heat insulation.
Q: Can I get some samples for testing before placing order?
A: Yes, we can provide you some free samples for your reference if you would like to bear the express cost.
Q: Can you make other sizes and packages for this product?
A: Yes, we can make other sizes as your requirement ,normally our quotation will contain the common package. If you need your own packages, you’d better advise your requirement ahead of time for an accurate quote.
