| 최소 주문 수량: | 500 |
|---|---|
| 가격: | 0.1-15$ |
| 포장 세부 사항: | 비닐 봉지+상자 |
| 배달 시간: | 7-10 일 |
| 지불 조건: | t/t |
| 공급 능력: | 100000 PC |
| 재료: | 알루미늄 호일/애완 동물/유리 울/와이어 메쉬 | 애플리케이션: | 통풍 |
|---|---|---|---|
| 모양: | 라운드는 형성했습니다 | 온도 범위: | -30- +250도 섭씨 |
| 직경 범위: | 80mm -610mm | 색상: | 은 |
| 굽힘 반경: | 0.54*d+25mm | 유리 섬유 단열재의 두께: | 25-50mm |
| 유리 섬유 단열재의 밀도: | 16-32kg/m3 | ||
| 강조하다: | insulated flexible aluminum foil duct,custom reinforced coat air duct,thermal insulation flexible aluminum duct |
||

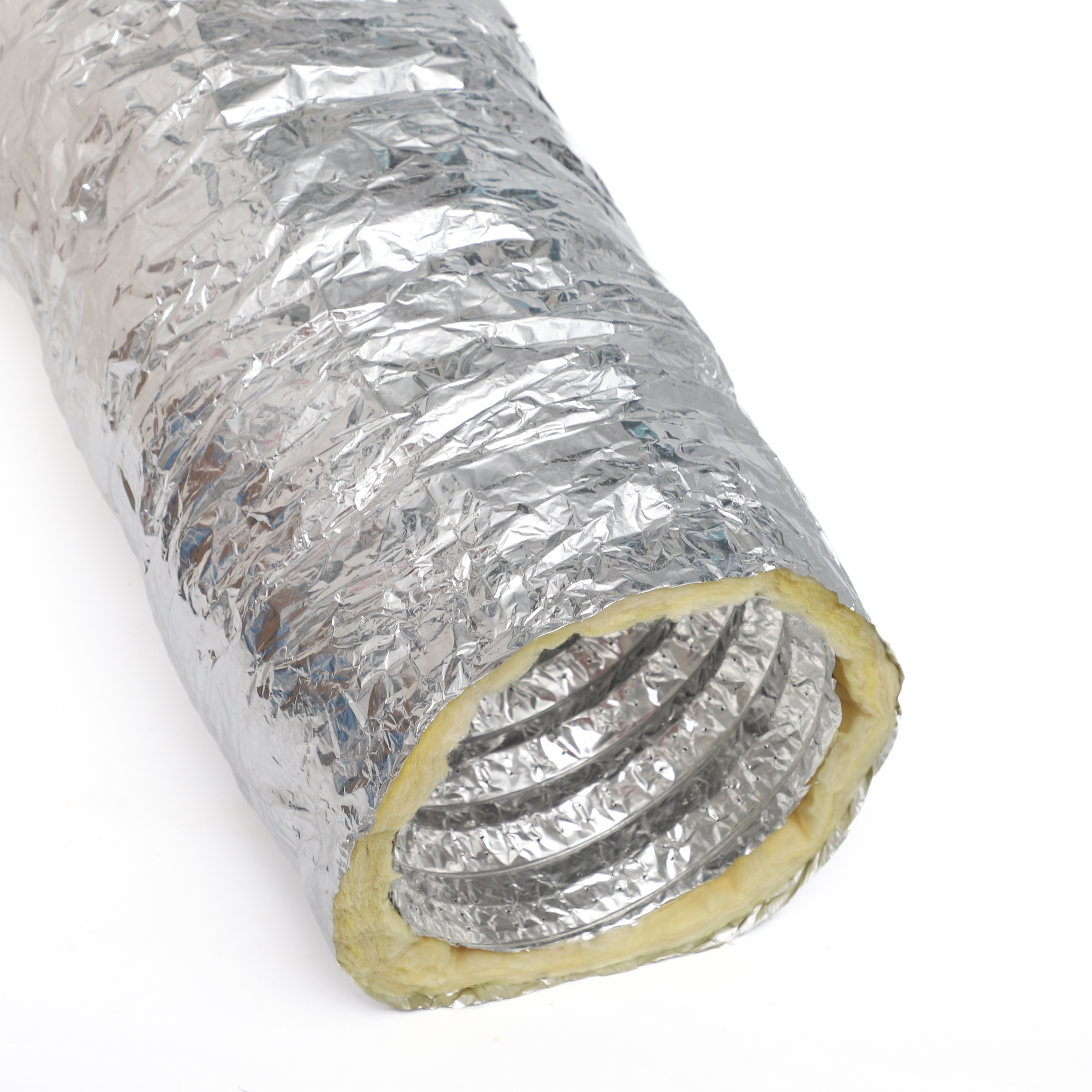

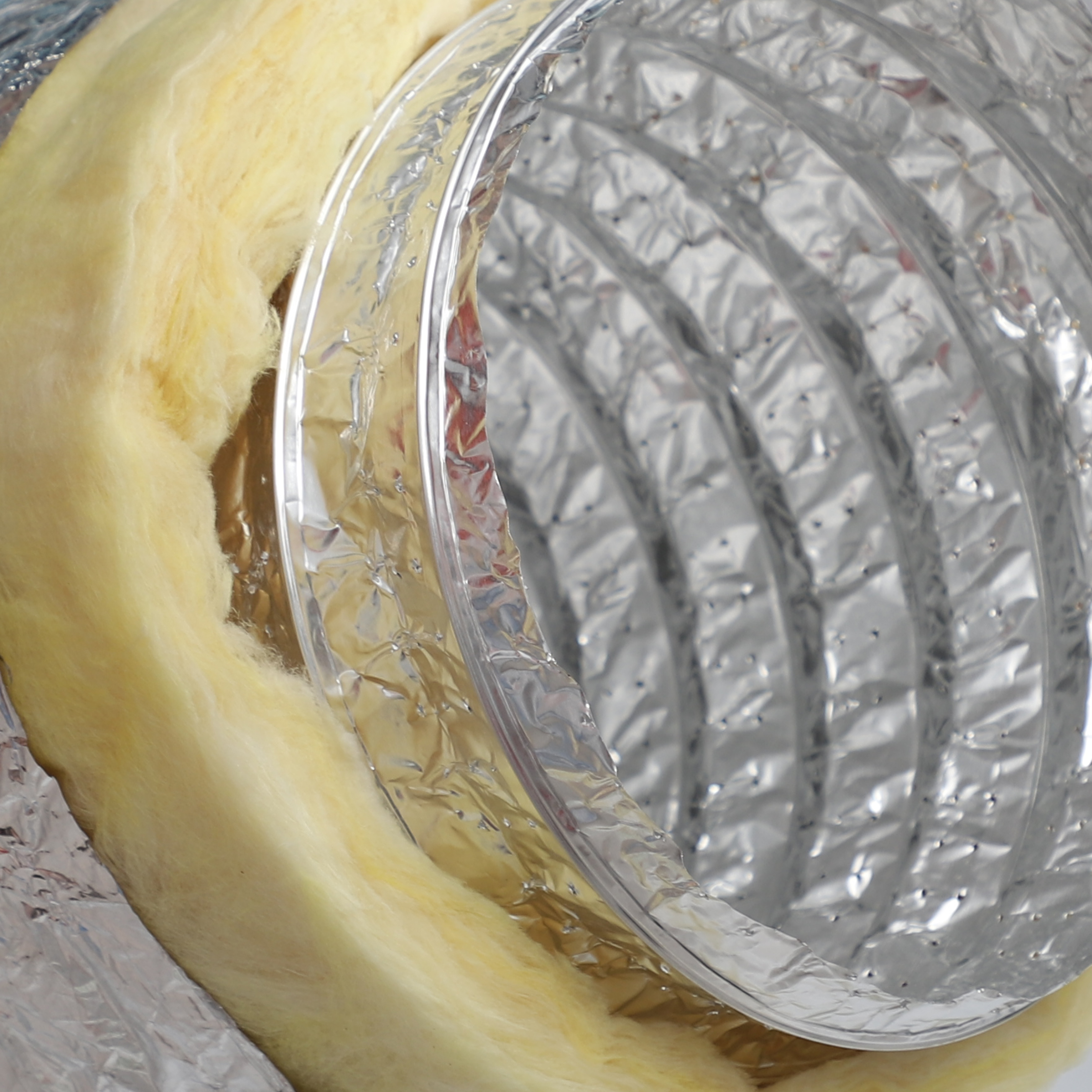

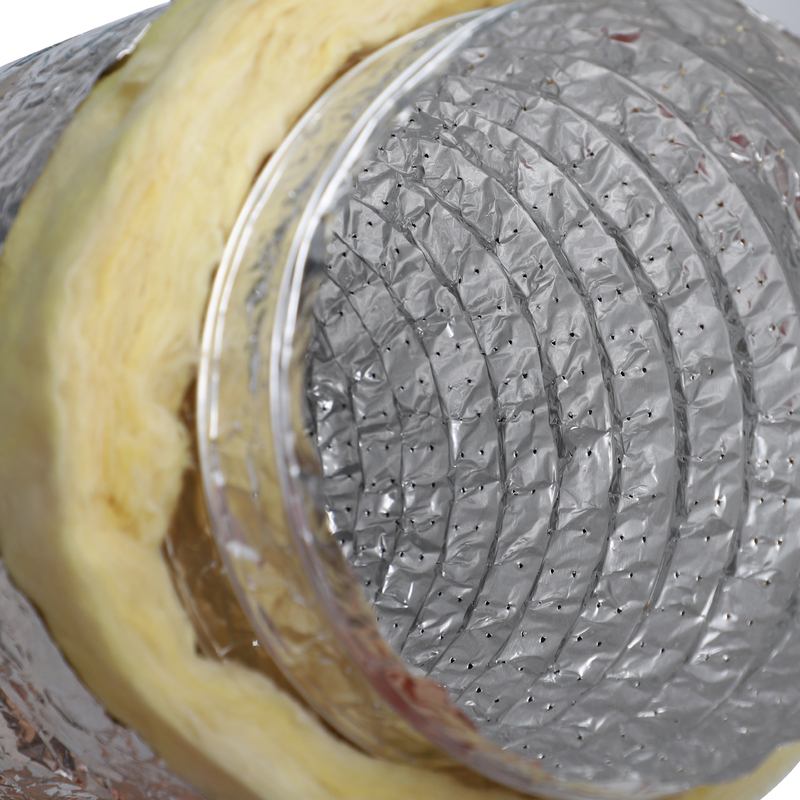

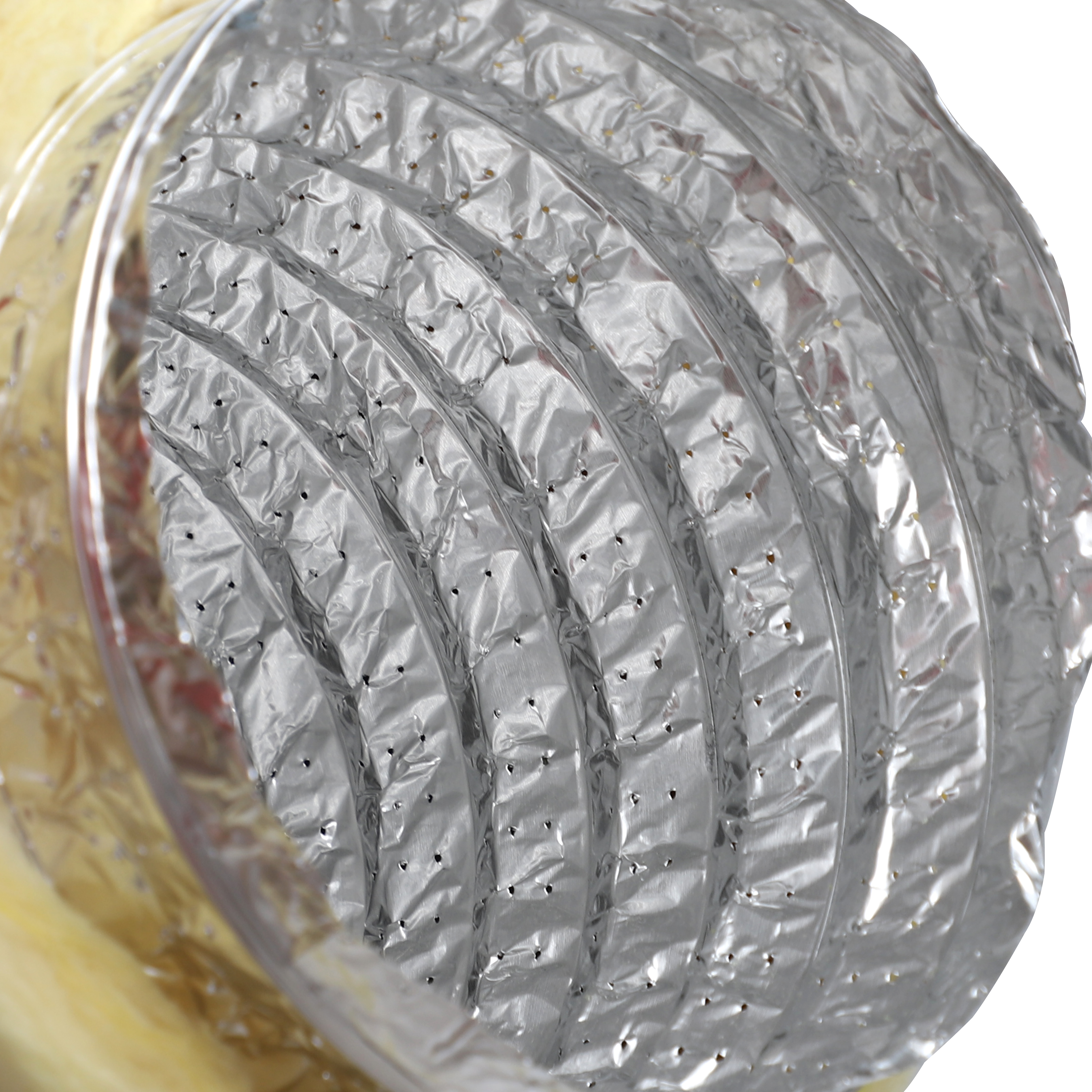

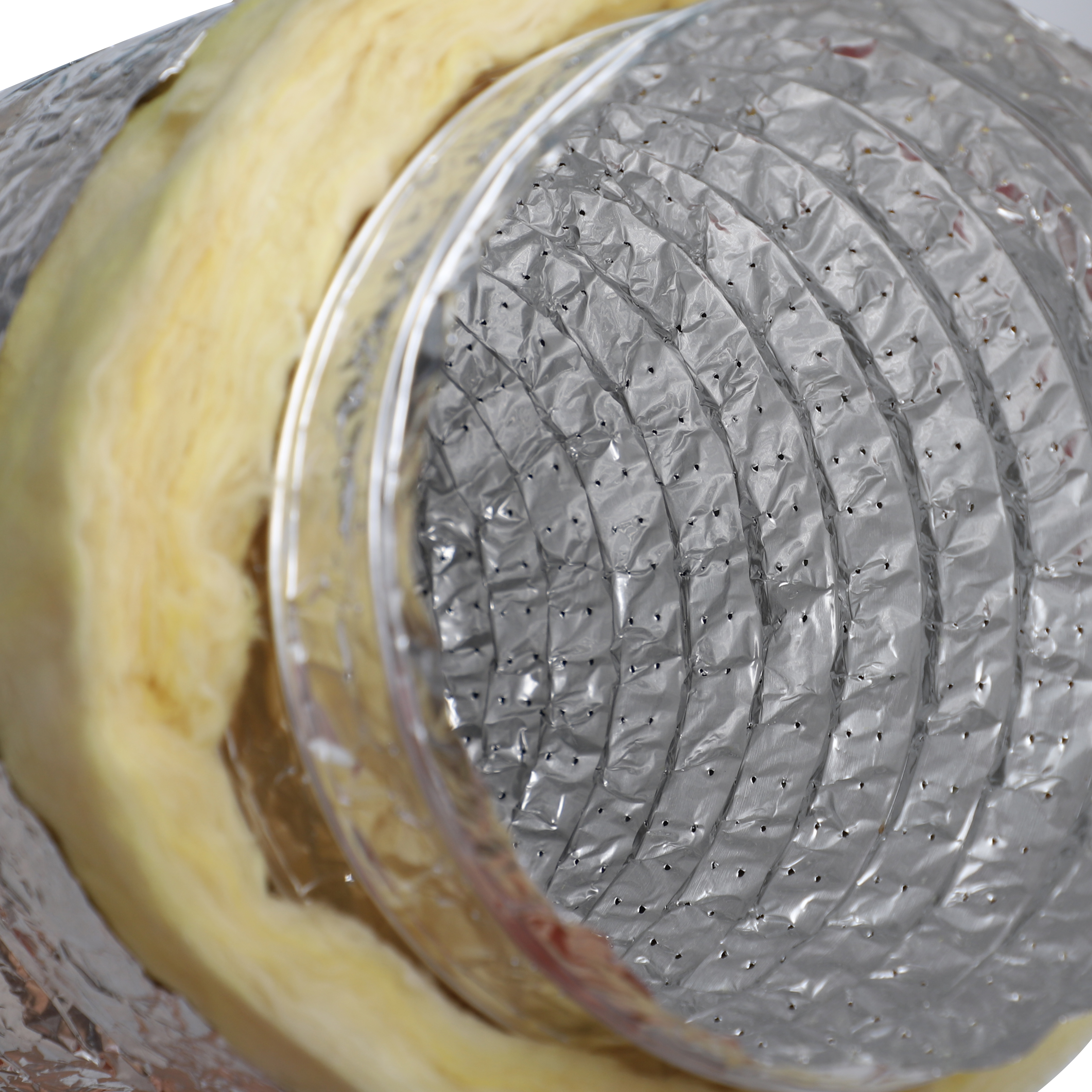

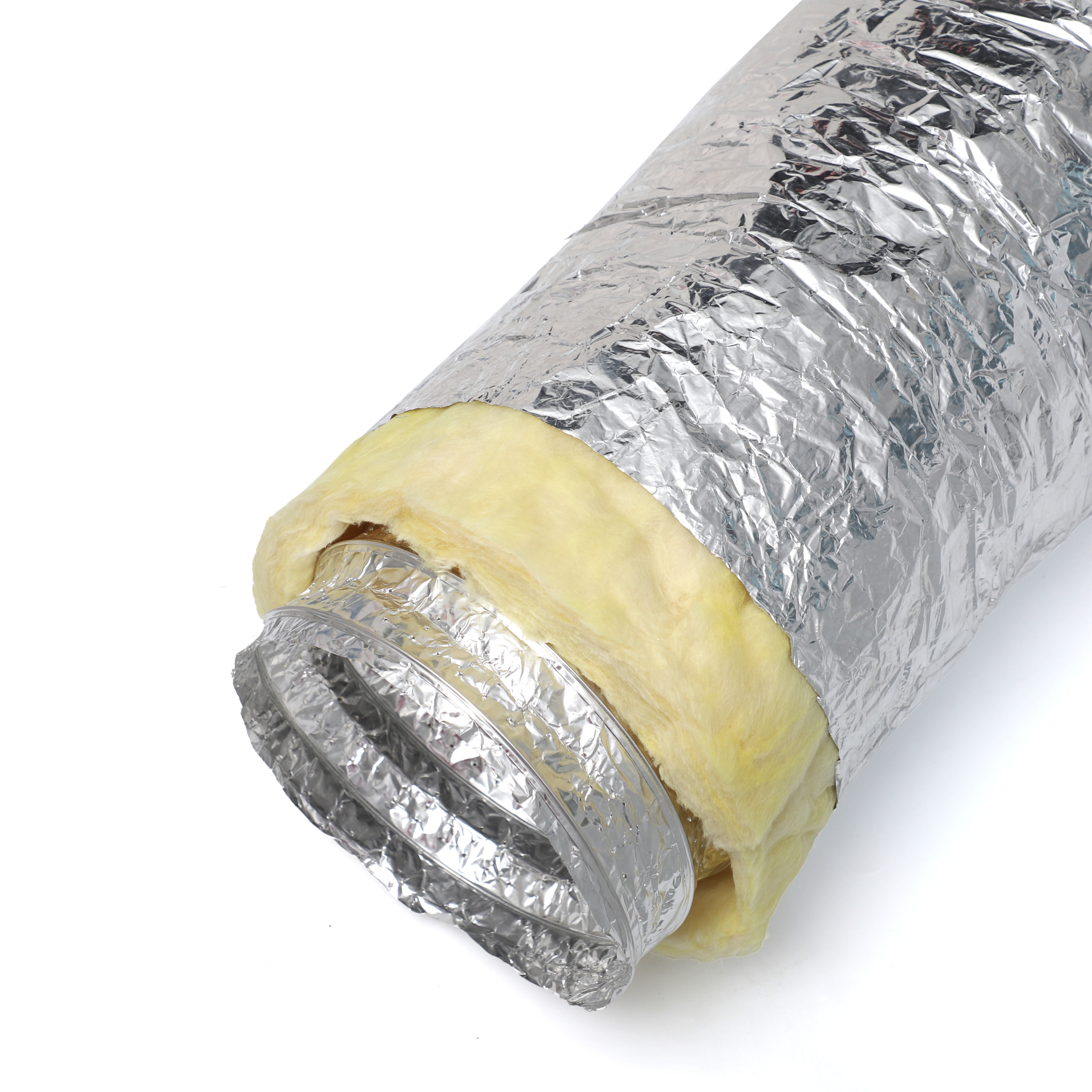

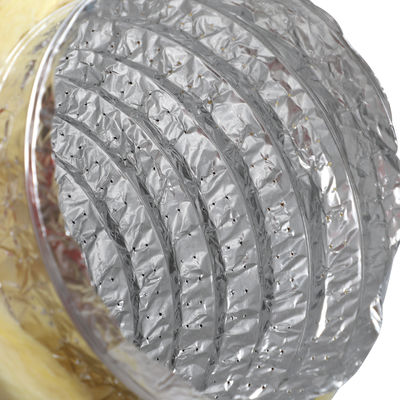

Factory Air conditioning air duct HAVC system insulated duct
|
PROPERTIES |
VALUE |
|
DIAMETER RANGE |
80 ~ 610mm (3"~ 24") |
|
TEMPERATURE RANGE |
-30 ~ +250 °C |
|
VELOCITY OF AIR FLOW (MAX.) |
30 m/s |
|
WORKING PRESSURE |
2500 Pa/3000 Pa |
|
BENDING RADIUS |
0.54*D+25mm |
|
THICKNESS OF FIBERGLASS INSULATION |
25-50mm |
|
DENSITY OF FIBERGLASS INSULATION |
16~32kg/m3 |
|
STANDARD LENGTH |
5 ~ 10m |
Product Feature and Application Of The Insulated Flexible Duct
Packing:
If you are interested in our products, please { click here } to see all the products
Q: Can you serve free samples and how can I get them?
A: Yes, as one of the largest ventilation duct products manufacturers in China, we are able to offer free samples for your test
Q: Can this be used for a range hood exhaust?"
A: Suitable for use with heating, ventilation and air conditioning systems.
Q: Can the duct be cut to length as needed?
A: Yes, sure.
Q: Where can the duct be used for?
A: Including heating and A/C systems and some venting.
Q: What are the benefits of your flexible ducts?
A: Made of high quality aluminum which is flame retardant, they are flexible and easy installation.
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer, and we cooperation with distributors at home and abroad, we have several years manufacturing and overseas sales experience.
