상세 정보

재료:	알루미늄 호일/애완 동물/유리 울/와이어 메쉬	애플리케이션:	통풍
모양:	라운드는 형성했습니다	온도 범위:	-30- +250도 섭씨
직경 범위:	80mm -610mm	색상:	은
굽힘 반경:	0.54*d+25mm	유리 섬유 단열재의 두께:	25-50mm
유리 섬유 단열재의 밀도:	16-32kg/m3
강조하다:	insulated flexible aluminum foil duct , custom reinforced coat air duct , thermal insulation flexible aluminum duct

제품 설명

Custom Reinforced Coat Insulated Flexible Aluminum Foil Air Duct

Factory air conditioning and HVAC system insulated duct for efficient thermal management.

Technical Specifications

Property	Value
Diameter Range	80 ~ 610mm (3"~ 24")
Temperature Range	-30 ~ +250 °C
Velocity of Air Flow (Max.)	30 m/s
Working Pressure	2500 Pa/3000 Pa
Bending Radius	0.54*D+25mm
Thickness of Fiberglass Insulation	25-50mm
Density of Fiberglass Insulation	16~32kg/m³
Standard Length	5 ~ 10m

Product Features and Applications

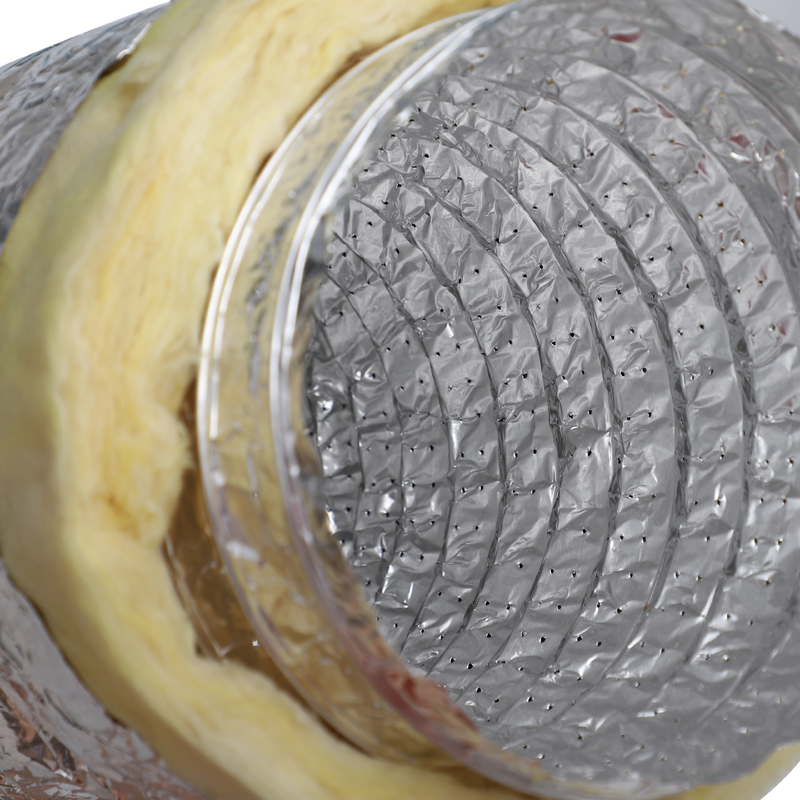

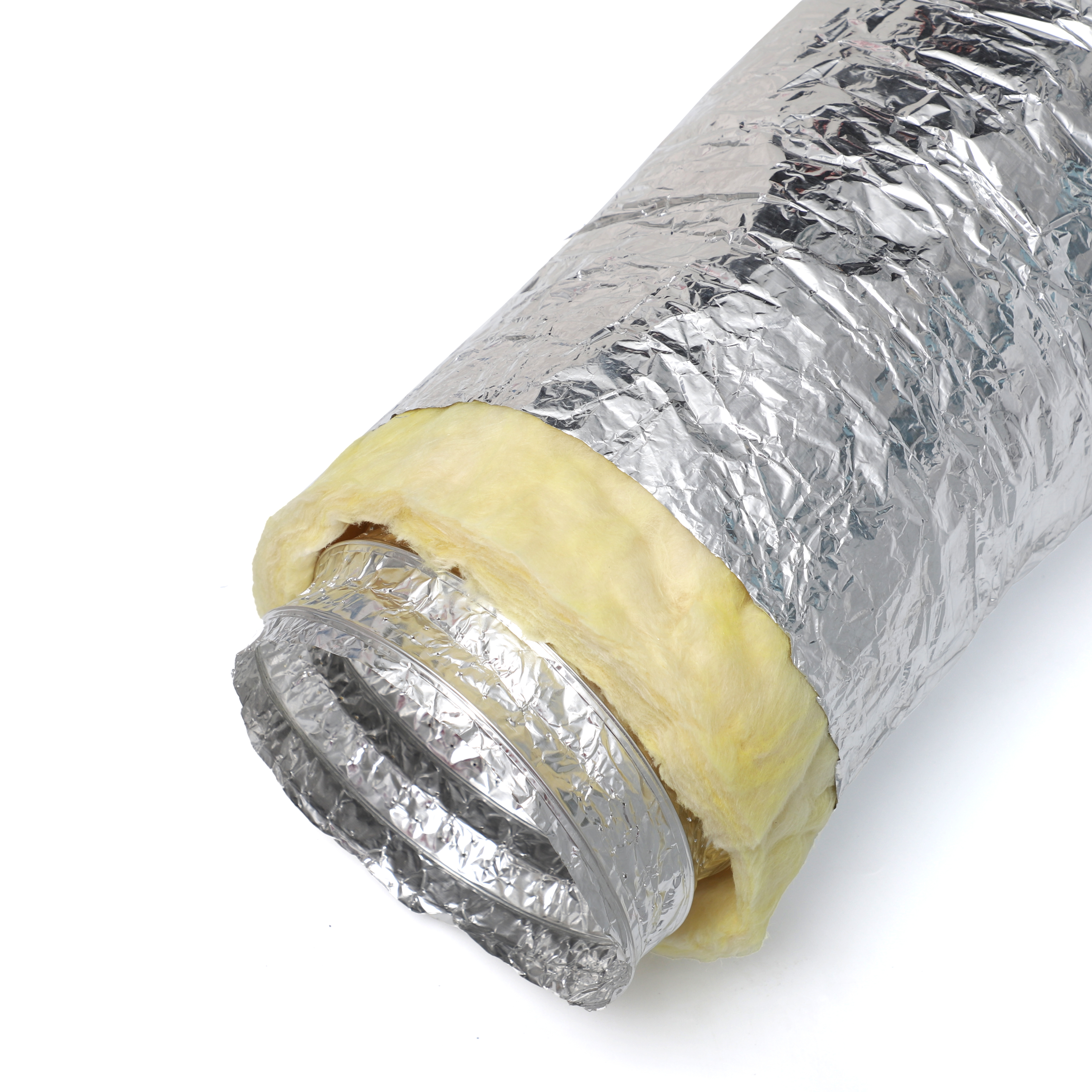

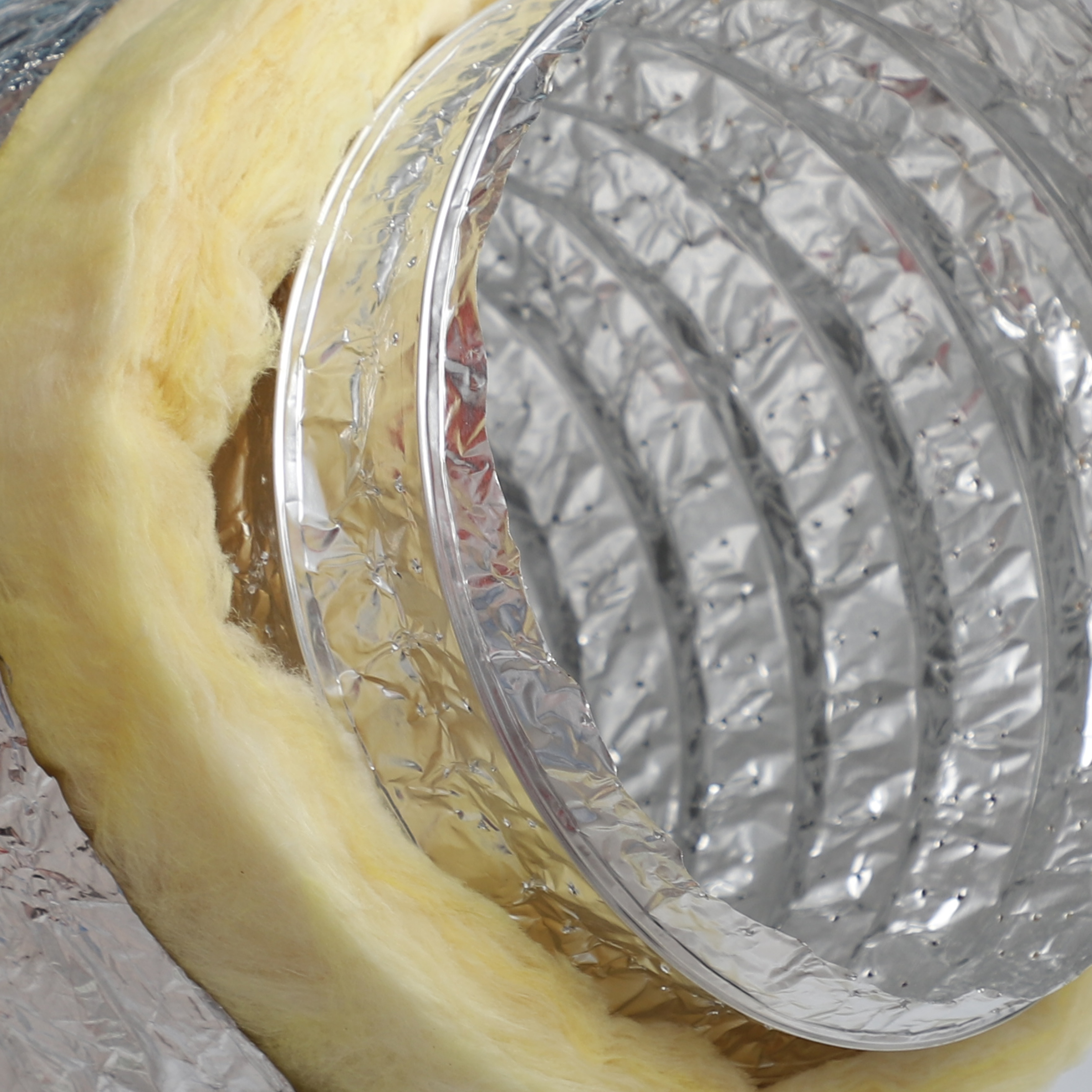

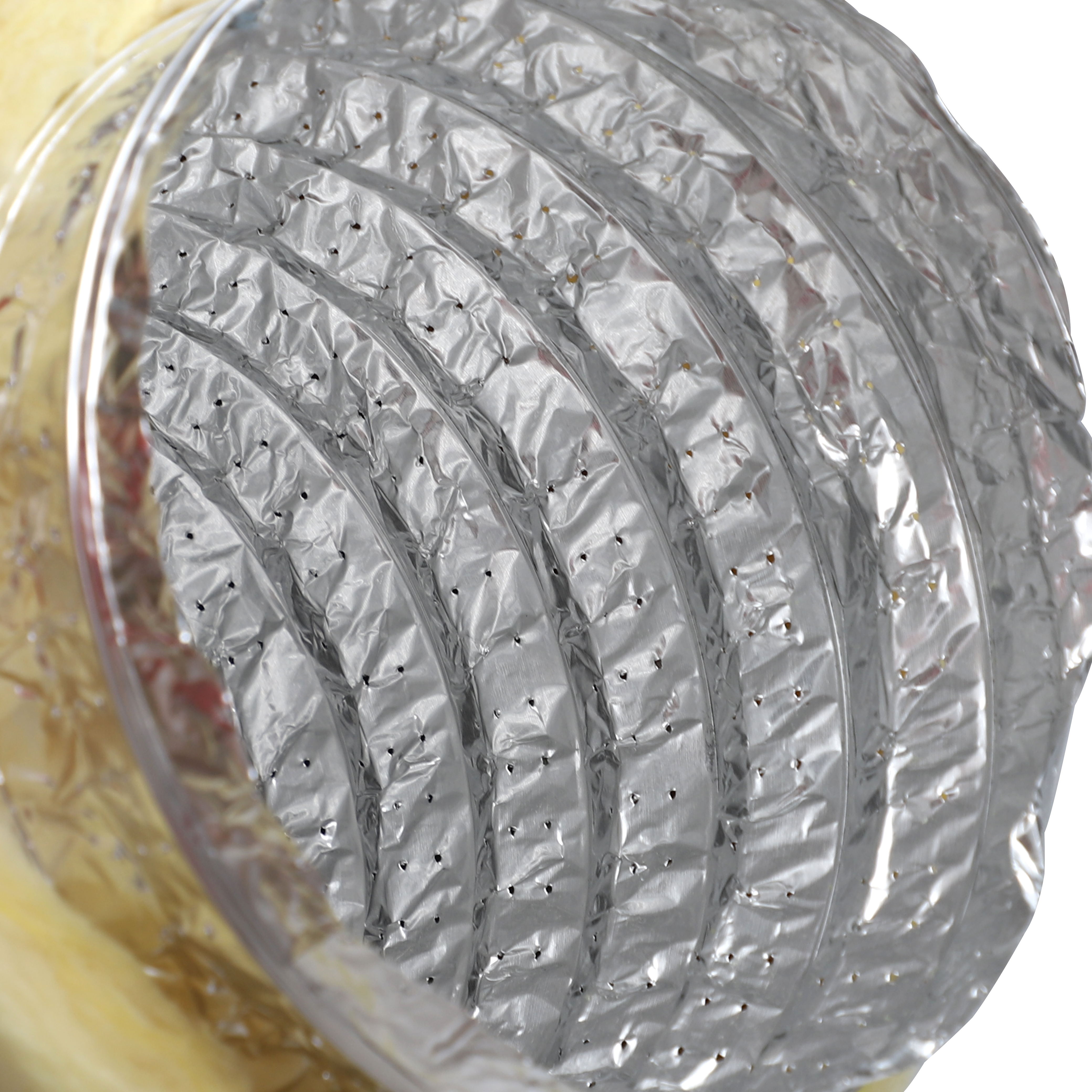

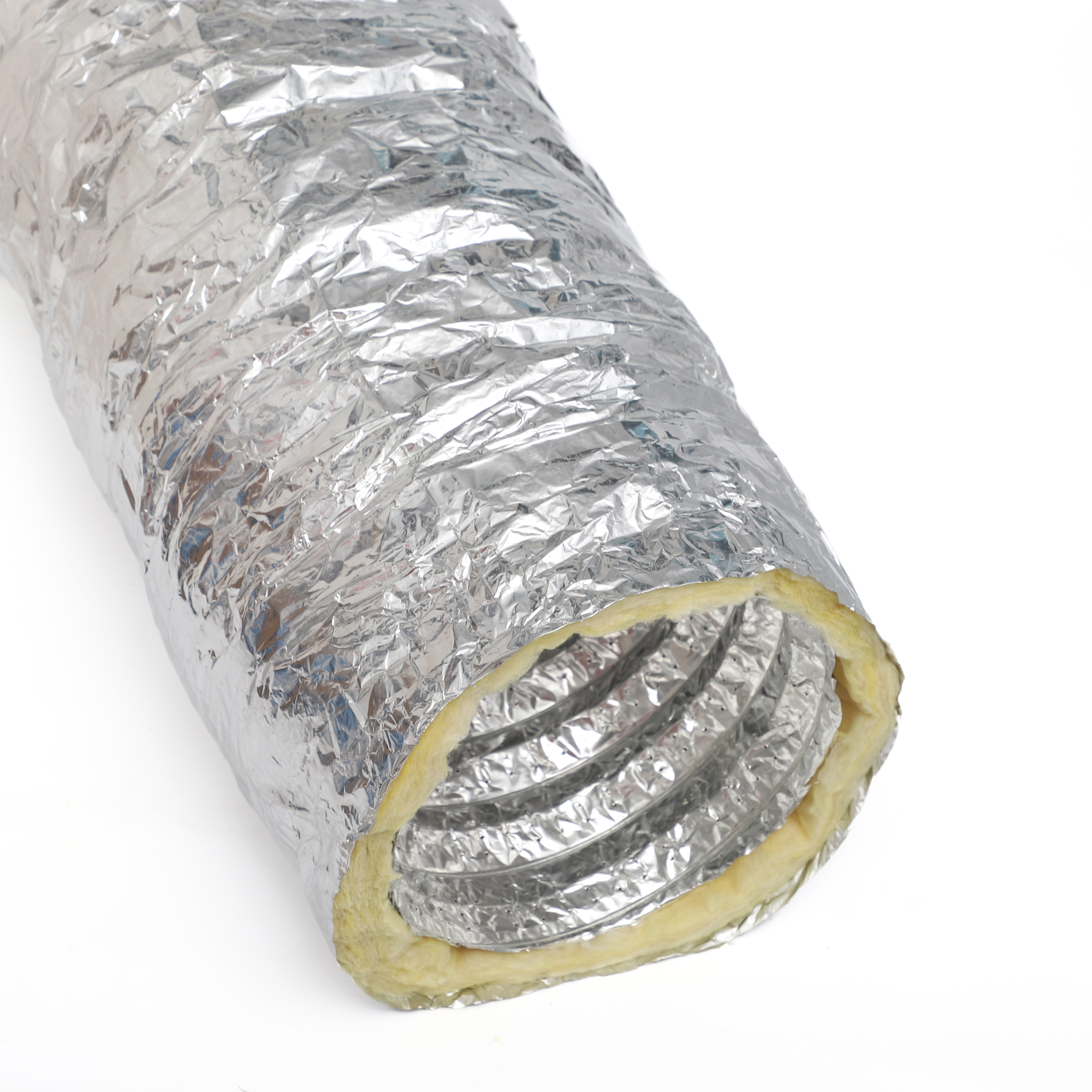

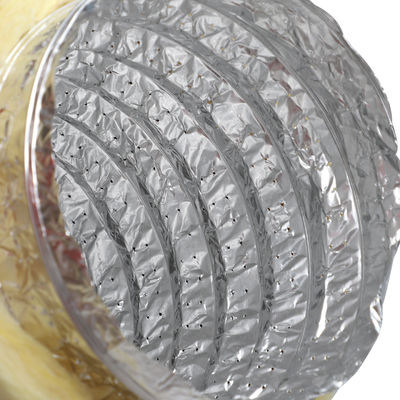

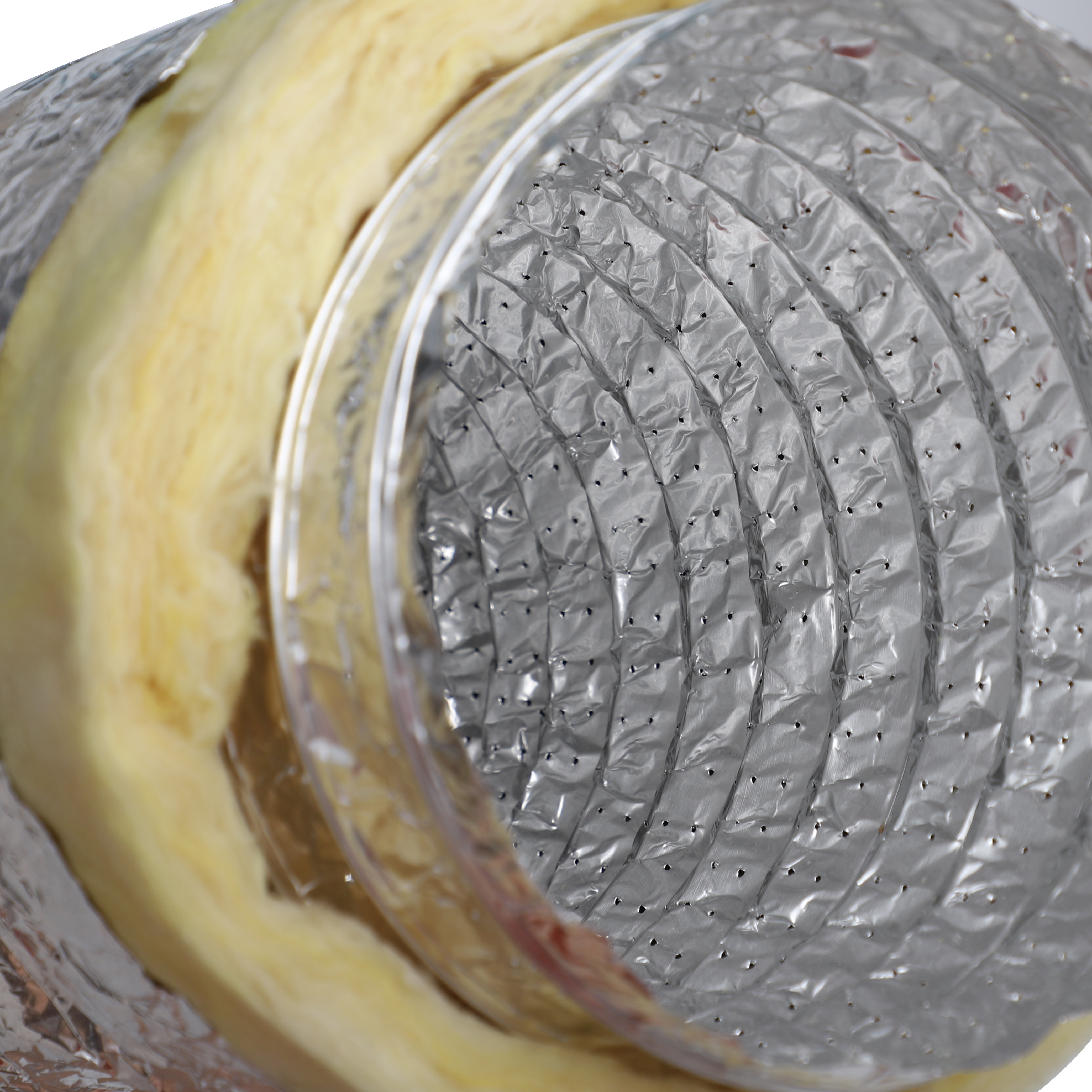

Slightly perforated inner core covered by fiberglass insulation and aluminum/polyester laminated outer jacket
Excellent fire resistance and acoustic performance with superior thermal insulation and flexibility
Effectively reduces heat and cooling loss while preventing condensation

Packaging

Frequently Asked Questions

Can you serve free samples and how can I get them?

Yes, as one of the largest ventilation duct products manufacturers in China, we are able to offer free samples for your testing.

Can this be used for a range hood exhaust?

Suitable for use with heating, ventilation and air conditioning systems.

Can the duct be cut to length as needed?

Yes, absolutely.

Where can the duct be used for?

Ideal for heating and A/C systems and various ventilation applications.

What are the benefits of your flexible ducts?

Made of high-quality flame-retardant aluminum, they offer excellent flexibility and easy installation.

Are you a manufacturer?

Yes, we are a professional manufacturer with several years of manufacturing and overseas sales experience, cooperating with distributors worldwide.
