| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | FANRYN |
| 최소 주문 수량: | 140HC |
| 포장 세부 사항: | 비닐 봉지 |
| 배달 시간: | 근무일 기준 10일 |
| 지불 조건: | 티/티 |
| 치수: | 다양함(예: 600x1200mm 보드) | 파이어리지스턴스: | 불연성, 클래스 A1 |
|---|---|---|---|
| 응용: | 건물 단열재, 산업용 단열재, HVAC | 물 흡수: | <1% |
| 환경에 미치는 영향: | 재활용할 수 있고 환경 친화적입니다 | 밀도: | 40-200kg/m3 |
| 두께: | 25-100 mm | 설치방법: | 기계적 고정 또는 접착제 |
| 재료: | 미네랄 울 | 열전도성: | 0.035W/m·K |
| 압축강도: | ≥10 kPa | 흡음계수: | 0.85 |
| ProductName: | 열 절연 미네랄 울 | 증기 투과성: | 높은 |
| 온도 저항성: | -268°C~700°C | ||
| 강조하다: | HVAC ductwork insulation pipe,thermal insulation mineral wool pipe,acoustic insulation pipe for ducts |
||

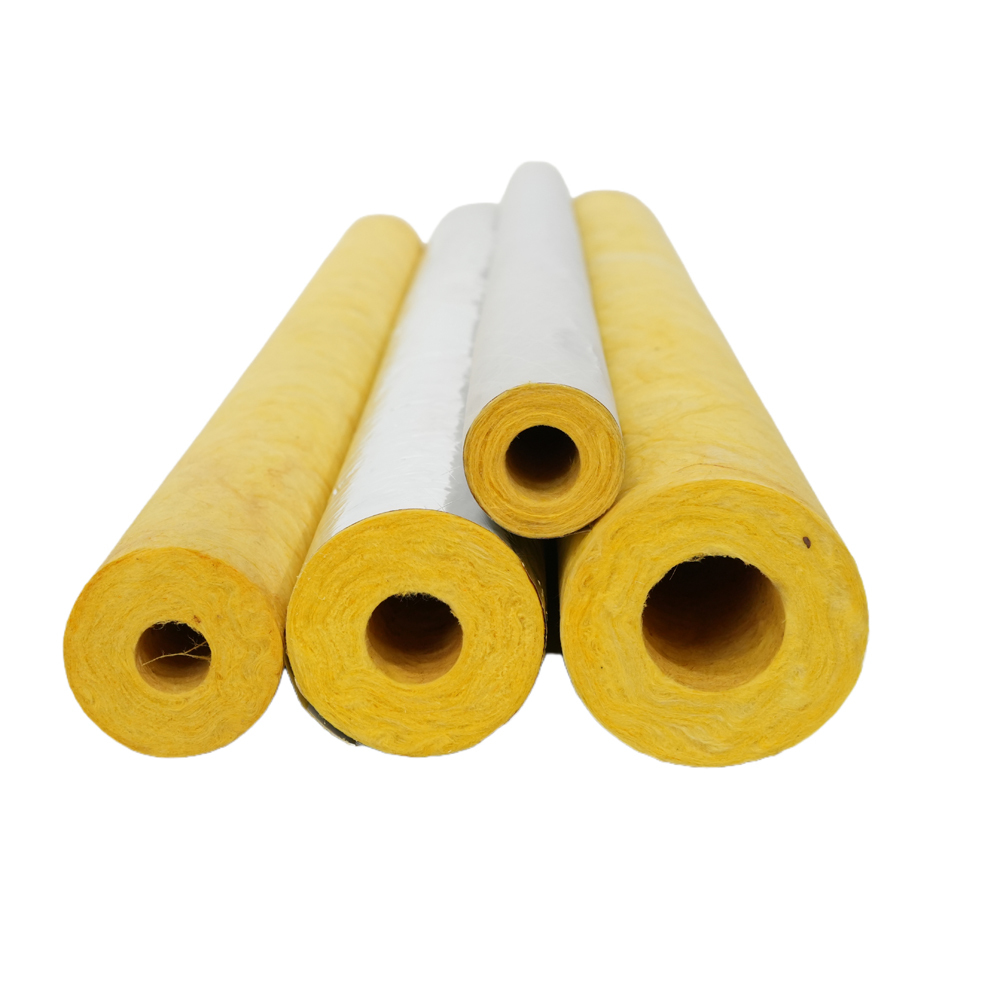

Optimize your building's climate control and acoustic comfort with our high-performance Glass Wool Pipe Sections. Specifically engineered for HVAC and ventilation systems, this insulation solution effectively minimizes heat loss or gain in air ducts, ensuring energy-efficient temperature management. Simultaneously, its superior sound-absorbing properties dampen noise from air movement and equipment, contributing to a quieter, more comfortable indoor environment. Easy to handle and install, it's the ideal choice for insulating complex ductwork in both commercial and residential buildings.
Recommend Thickness List(mm)
Pipeline System Type | The Thickness of glasswood pipe shell applied in different pipeline(mm) | ||||||
|---|---|---|---|---|---|---|---|
Liquid Temperature Range℃ | Diameter of Branches Under 50mm | Under 25mm | 32-50 | 64-100 | 125-150 | Above 200mm | |
Air System Steaming and Water System High Temperature/ | 152-238 | 40 | 64 | 64 | 75 | 89 | 89 |
Medium Temperature/ | 122-151 | 40 | 50 | 64 | 64 | 75 | 75 |
low Temperature/ | 94-121 | 25 | 40 | 40 | 50 | 50 | 50 |
low Temperature System | 49-93 | 13 | 25 | 25 | 40 | 40 | 40 |
Steaming Condensator of Watering System | Any Temperature | 25 | 25 | 40 | 50 | 50 | 50 |
Equivalent Thickness of Surface Cooling Prevention
Environment | Relative Humidity | System Working Temperature | ||
|---|---|---|---|---|
2℃ | 7℃ | 13℃ | ||
38℃ | 50%-60% | 25 | 25 | 25 |
70% | 40 | 30 | 30 | |
80% | 75 | 60 | 50 | |
85% | 100 | 90 | 75 | |
32℃ | 50%-60% | 25 | 25 | 25 |
70% | 25 | 25 | 25 | |
80% | 50 | 50 | 40 | |
85% | 80 | 75 | 60 | |
27℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 | |
85% | 75 | 65 | 50 | |
21℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 | |
85% | 75 | 50 | 40 | |
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.
Density(kg/m3) | Thickness(mm) | Length (mm) | Diameter (mm) |
|---|---|---|---|
48-80 | 25-90 | 1000,1200 | 18-529 |
Dual-Action Performance: Provides excellent thermal insulation to reduce energy costs and acoustic insulation to lower operational noise.
Wide Temperature Range: Stable performance in temperatures from -85°C to 454°C, suitable for various air handling scenarios.
Lightweight & Flexible: Simplifies installation around elbows, tees, and joints, reducing labor time and cost.
Non-Combustible: Enhances the overall fire safety of the ventilation system.

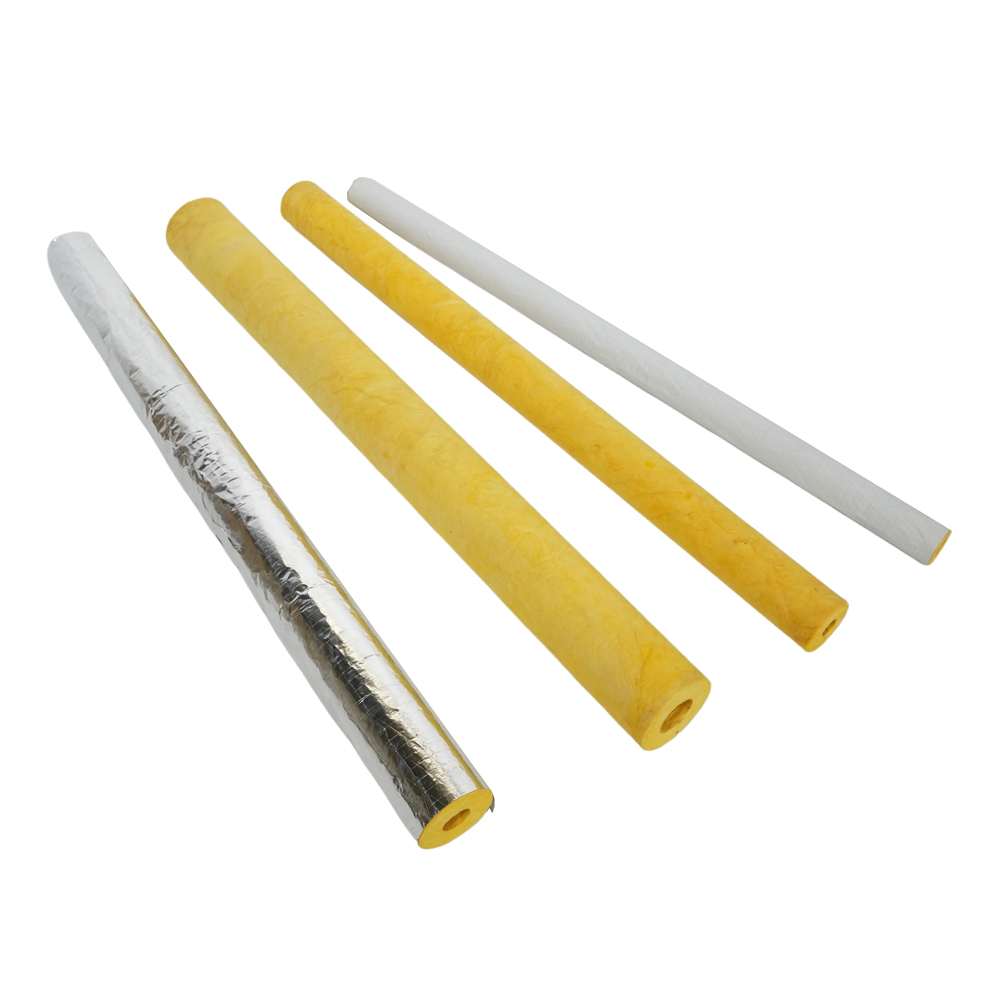

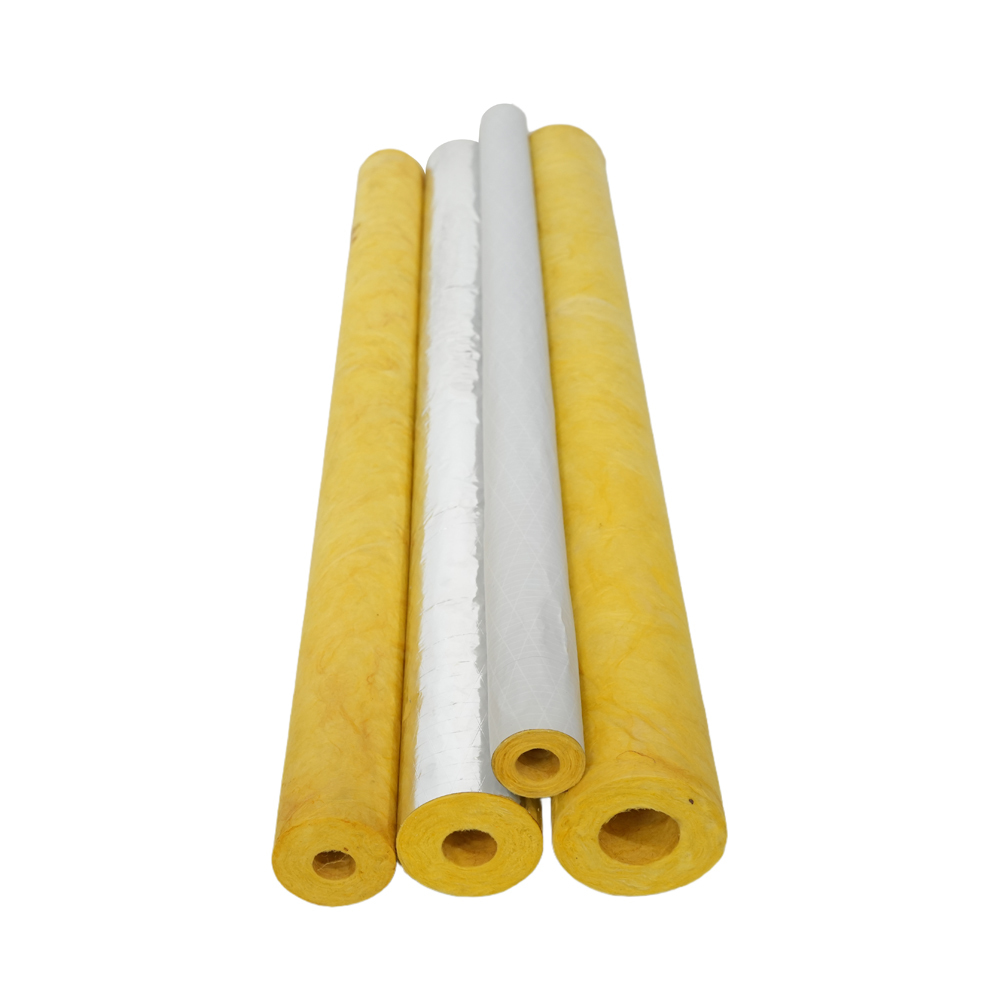

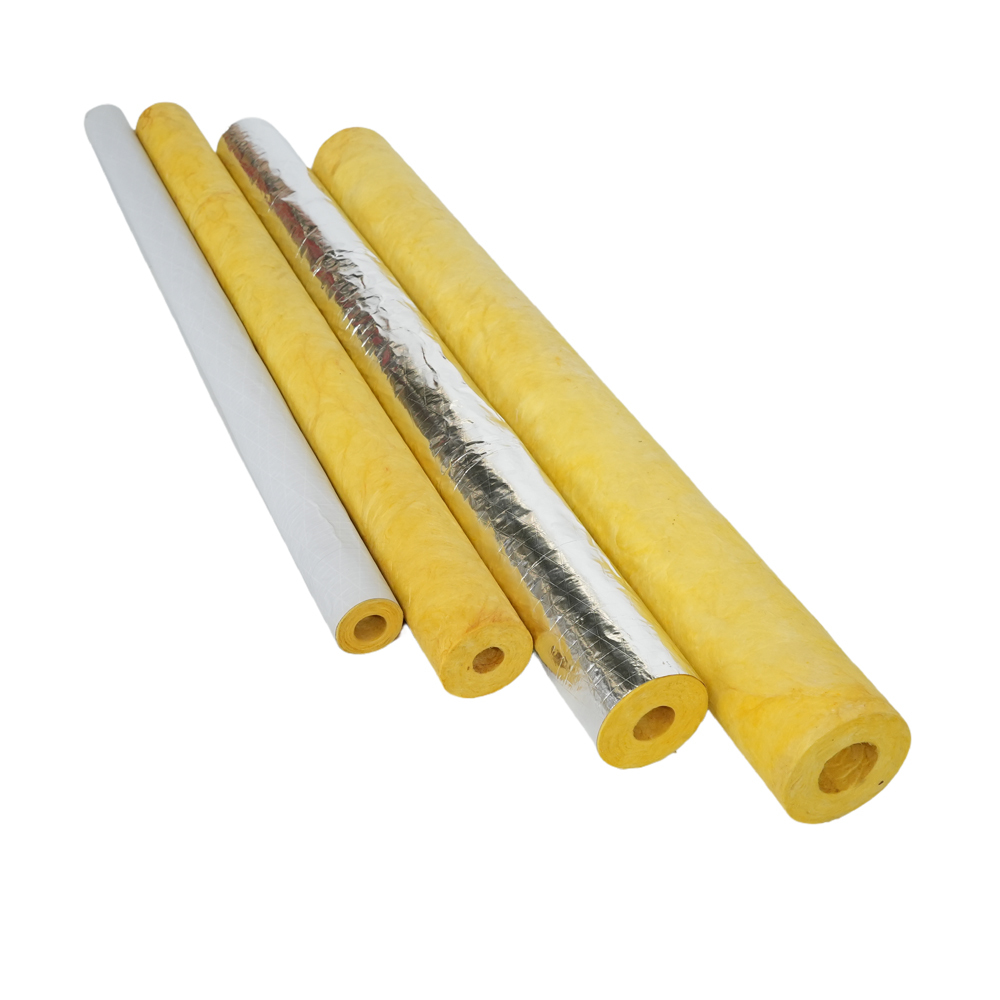

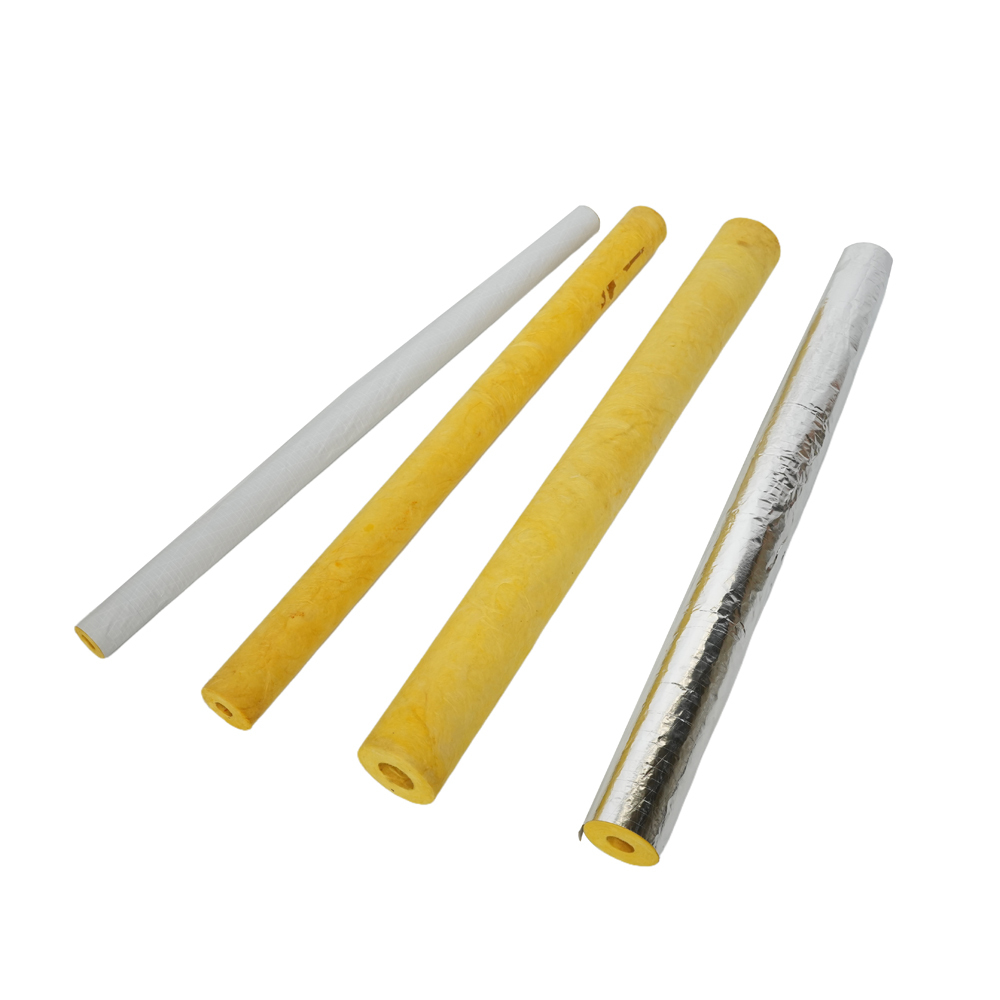

Aluminum foil facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
